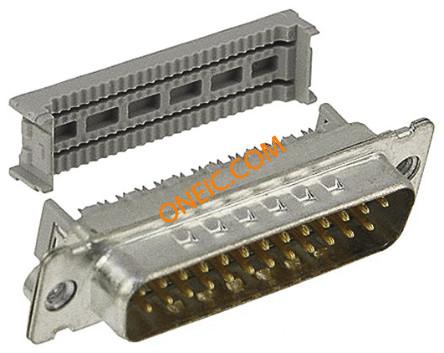

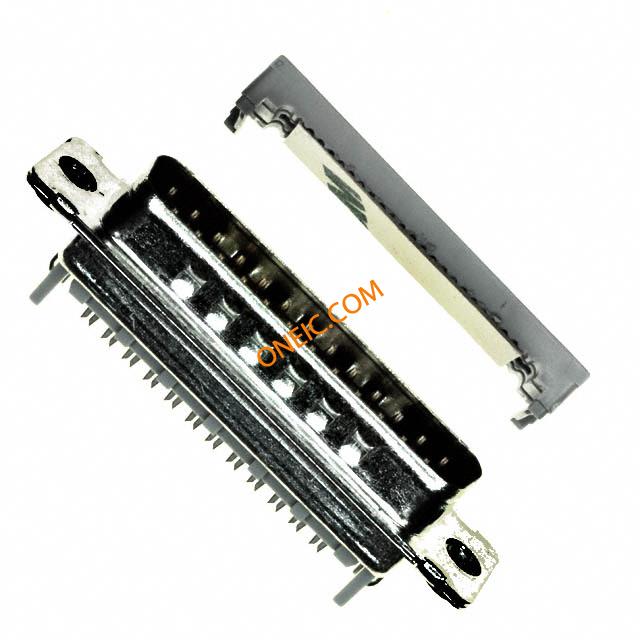

8225-6003
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P OPEN COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 25POS IDC GOLD D Sub Plug 8200 Series IDC 25 way D-Sub Connector; Plug; Copper Alloy; Gray; Steel; Tin; 25; 8200 Series PLUG, DSUB, IDC, 4-40, 25WAY D SUB CONNECTOR, STANDARD, 25POS, PLUG Conn;D-Sub;CablePlug;25Cnt;8200Series;Gray;CopperAlloy;26,28AWG 3M 8200 系列 1.27mm 节距 25 路 IDC D-sub 连接器, 插头, 钢外壳 |
| Category |
Business
| Part # Aliases | 00189587055 DE610012325 | Product Category | D-Sub Standard Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| Approval Agency | cUL,UL | RoHS Compliance | Yes |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Range deg/s | :3M - 8200 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | Gray | Depth | 12.4mm |
| Pitch | 2.76mm | Width | 16.5mm |
| Length | 53.3mm | Weight | 3.400 lbs |
| Packaging | Tray | Shell Size | :DB |
| Wire Gauge | 28-26 | Termination | IDC, Ribbon Cable |
| Contact Type | Signal | Body Material | :Steel |
| Mounting Type | Straight | Shell Plating | Tin |
| Angle of Throw | Straight | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Housing Finish | Tin | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Primary Material | D-Subminiature | Size / Dimension | 53.3 x 16.5 x 12.4mm |
| Number of Contacts | 25 | Contact Termination | :IDC / IDT |
| Dielectric Material | PBT | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Type | CablePlug | Gender | Male |
| Series | 8200 | Features | Feed Through, Grounding Indents |
| Manufacturer | 8200 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
