点击放大查看

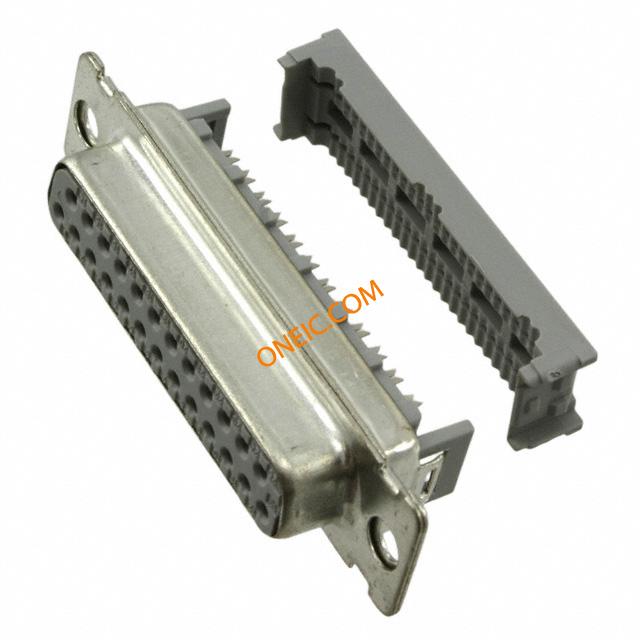

8325-7000
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P CLOSD CVR SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 25POS IDC GOLD |
| Category |
Business
| Part # Aliases | 05111165740 80610186316 | Product Category | D-Sub Standard Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 1 A |
Mechanical
| Color | Gray | Packaging | Bulk |
| Termination | IDC, Ribbon Cable | Contact Type | Signal |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Copper Alloy |
| Housing Material | Polyester, Glass Filled | Termination Style | IDC |
| Number of Contacts | 25 | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Gender | Female | Series | 8300 |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
