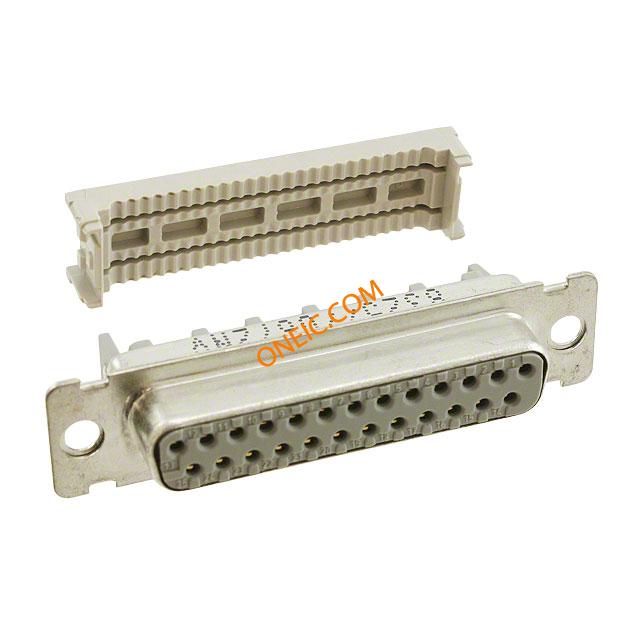

8325-8000
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P OPEN COVR SOCKET LOW PROFILE CONN D-SUB RCPT 25POS IDC GOLD DSUB, SOCKET, IDC, 1.38MM, 25WAY Connector,Socket;CopperAlloy;Nickel(Underplating);2.1in. |
| Category |
Business
| Part # Aliases | 04671903125 DE610012838 | Product Category | D-Sub Standard Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Standards | RoHSCompliant,ULListed |
| Tariff No | 85366990 | ||
Electrical
| Range deg/s | :3M - 8300 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | Gray | Weight | 3.350 lbs |
| Packaging | Bulk | Shell Size | :DB |
| Termination | IDC, Ribbon Cable | Contact Type | Signal |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Length - Overall | 2.1in. | Primary Material | D-Subminiature |
| Termination Style | IDC | Number of Contacts | 25 |
| Contact Termination | :IDC / IDT | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Type | CableSocket | Gender | Female |
| Series | 8300 | Features | Feed Through |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts

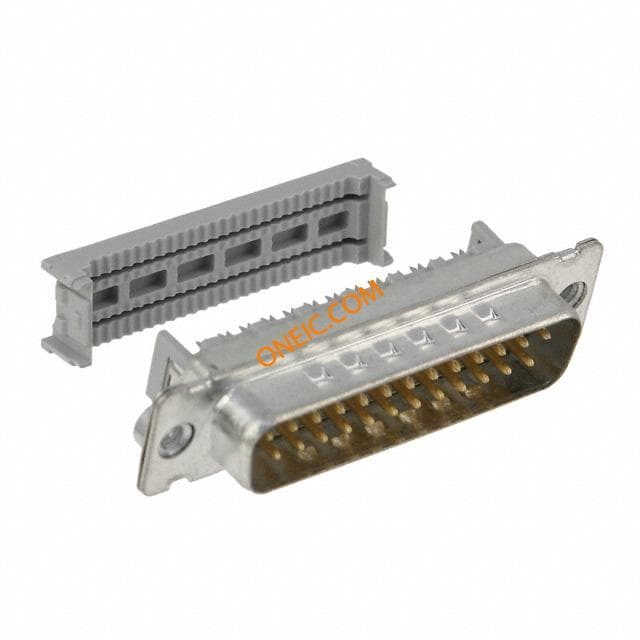

8225-8003
