点击放大查看

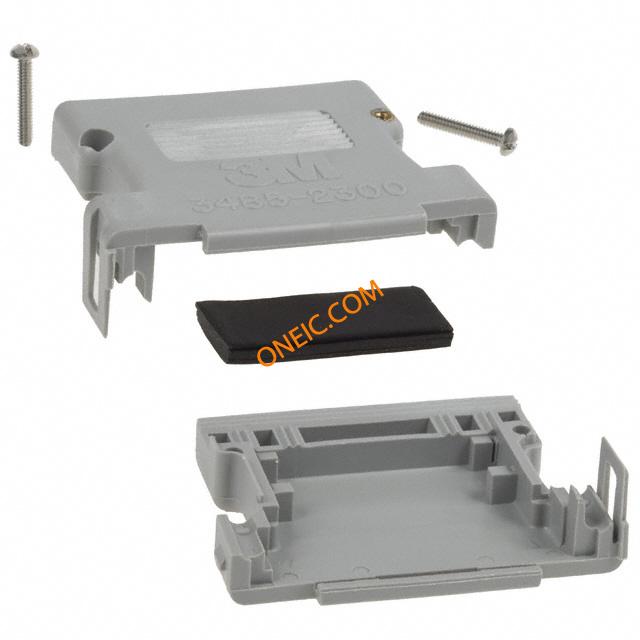

3485-2300F
| Manufacturer | |
| Description | D-Sub Backshells 25P PLSTC JUNC SHELL FOR FLAT CABLE Junction Shell for Flat Cable, Plastic BACKSHELL, 25PIN PLASTIC CABLE 25way IDC flat cable plastic D backshell Connector Accessories D-Sub Junction Shell 25 POS Polyester Gray BACKSHELL, D, PLASTIC, 25WAY Hood;D-Sub;25Pos;StraightExit;3485Series;Plastic;FlatCbl 3M 25 路 直 聚碳酸酯 (PBT) D-sub 连接器底壳 |
| Category |
Business
| Part # Aliases | 05400736334 80610182174 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :CSA, UL |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Gray | Depth | 16.8 mm |
| Height | 39.9 mm | Weight | 6 lbs |
| Material | Polybutylene Terephthalate, Glass Filled | Shielding | Unshielded |
| Cable Exit | 180° | Cable Type | Flat |
| Shell Size | :DB | Weight (g): | 25.00000 |
| Mounting Type | Straight | Shell Plating | Plastic |
| Cable Diameter | 0.050In. | Cable End Type | Straight |
| Shell Material | Polyester, Glass Filled | Material - Body | :Glass Reinforced Polyester |
| Housing Material | PBT | Length - Overall | 55.1 mm |
| Color - Connectors | :Grey | Number of Positions | 25 |
| Number of Cable Pairs | 1 | Backshell Material, Plating | Plastic |
Product Info
| Type | Two Piece Backshell | Series | 3485 |
| DELETED | Compliant | Hardware | Assembly Hardware |
| Manufacturer | Series3485 | Accessory Type | Two Piece Backshell |
Environmental
| Operating Temperature | -55C to 105C | ||
