8325-6009
| Manufacturer | |
| Description | Conn D-Subminiature SKT 25 POS 2.74mm IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors 25POS IDT RA CAB MNT D-SUBMINI SKT 25P D-SUB SOCKET Socket Connector CONN D-SUB RCPT 25POS OPEN COVER 25 way IDC class 2 metal shell D socket SOCKET, DSUB, IDC, CRIMP, 25WAY IDC,DCABLESKT25WAY D-sub socket 25P, 8325-6009, 3M 3M 8300 系列 2.74mm 节距 25 路 IDC D-sub 连接器, 插座, 钢外壳 |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Part # Aliases | 04671903123 DE610012812 | Product Category | D-Sub Standard Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL 94V-0 |
| RoHS Compliance | Yes | ||
Electrical
| Range deg/s | :3M - 8300 Series | Voltage Rating | 500V |
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Gray | Depth | 12.4mm |
| Pitch | 2.74 mm | Length | 53.1mm |
| Weight | 3.200 lbs | Packaging | Tray |
| Cable Exit | NO | Insulation | Insulated |
| Shell Size | 3 | Wire Gauge | 26 TO 28 |
| Orientation | STRAIGHT | Termination | IDT |
| Contact Type | MALE | Pitch - Post | 1.27mm |
| Mounting Type | Cable Mount | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Steel |
| Contact Material | Copper Alloy | Housing Material | PBT |
| Termination Style | IDC | Number of Contacts | 25 |
| Contact Termination | :IDC / IDT | Insulation Material | Glass Filled Polyester |
| Number of Positions | 25 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Contact Material - Plating | GOLD |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Type | D-Subminiature | Gender | SKT |
| Series | 8300 | Features | Feed Through |
| Matchcode | 83256009 | Standard Leadtime | 7 weeks |
Environmental
| Temperature Range | - 55 C to + 105 C | Operating Temperature | -55 TO 105°C |
Documents & Media
Similar Parts
8225-8003
3M Electronic Solutions Division
D-Sub Standard Connectors DSUB PLUG 25POS W/INSERT CONN DSUB PLUG 25POS IDC GOLD
8225-6000
3m interconnect solutions
Conn D-Subminiature PIN 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors 25P OPEN COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 25POS IDC GOLD D-Sub Connector; Plug; Copper Alloy; Gray; Glass Filled Polyester; Steel; Tin D-SubConnector;Plug;CopperAlloy;Gray;GlassFilledPolyester;Steel;Tin 3M 8200 系列 1.27mm 节距 25 路 IDC D-sub 连接器, 插头, 聚碳酸酯 (PBT)外壳
8225-6003
3M Electronic Solutions Division
D-Sub Standard Connectors 25P OPEN COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 25POS IDC GOLD D Sub Plug 8200 Series IDC 25 way D-Sub Connector; Plug; Copper Alloy; Gray; Steel; Tin; 25; 8200 Series PLUG, DSUB, IDC, 4-40, 25WAY D SUB CONNECTOR, STANDARD, 25POS, PLUG Conn;D-Sub;CablePlug;25Cnt;8200Series;Gray;CopperAlloy;26,28AWG 3M 8200 系列 1.27mm 节距 25 路 IDC D-sub 连接器, 插头, 钢外壳
8225-8000
3M Electronic Solutions Division
D-Sub Standard Connectors 25P OPEN COVER PLUG UNTHREADED INSERT CONN DSUB PLUG 25POS IDC GOLD Connector; D-Sub; 25 Contact DSUB, PLUG, IDC, 1.38MM, 25WAY Connector,D-Sub,25Contact
8225-7000
3M Electronic Solutions Division
D-Sub Standard Connectors 25P CLOSD COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 25POS IDC GOLD
8225-6009
3M Electronic Solutions Division
D-Sub Standard Connectors DELTA 25 M N 25P D-SUB PLUG Low profile Plug Connector D SUB PLUG 25CONT OPN CVR RVT CR 25 way IDC class 2 metal shell D plug PLUG, DSUB, IDC, CRIMP, 25WAY IDC,DCABLEPLUG25WAY D-sub plug 25P, 8225-6009, 3M 3M 8200 系列 2.76mm 节距 25 路 IDC D-sub 连接器, 插头, 钢外壳 25P D-SUB PLUG STRAIGHT
3357-6225-1C
3m interconnect solutions
Connector Accessories D-Sub Junction Shell 25 POS Acrylonitrile Butadiene-Styrene D-Sub Backshells D-SUB SHELL 25POS PLASTIC EMI Junction Shell, Metalized Plastic CONN D-SUB SHELL 25POS PLASTIC BACKSHELL, D, SHIELDED, 25WAY D-Sub metallized hood 25P, 3357-6225-1C, 3M
8225-6004
3M
CONN DSUB PLUG 25POS W/INSERT CONN DSUB PLUG 25POS IDC GOLD

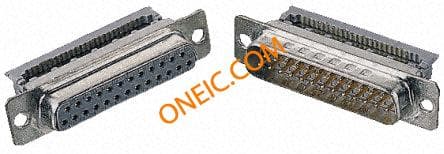

8225-8009
