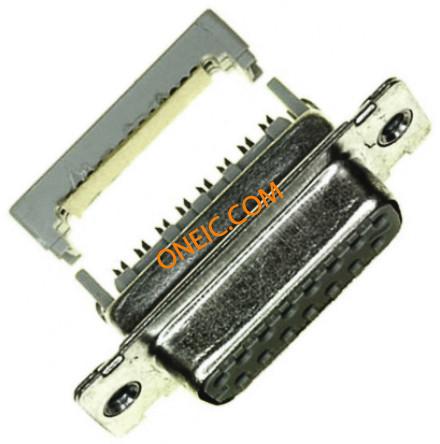

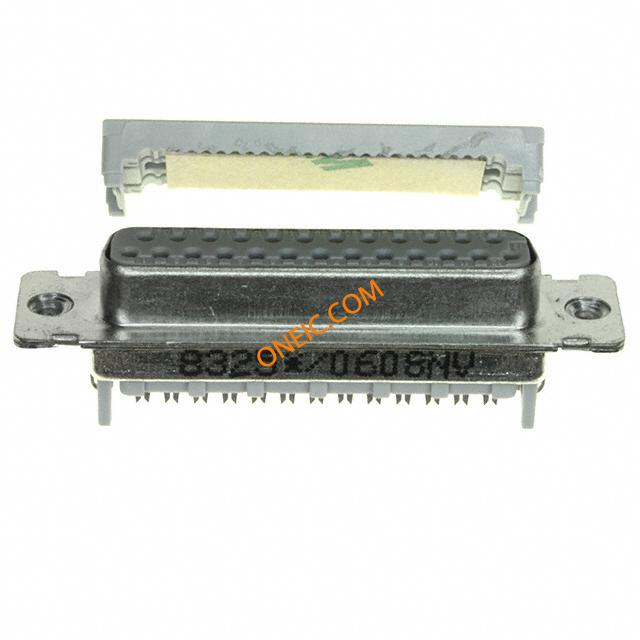

8325-6003
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P OPEN COVR SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 25POS IDC GOLD 3M 8300 Series 2.8mm 25 Way 2 Row Right Angle IDC D-sub Connector Cable Mount Connector; Socket; Ribbon Cable; Multiple Wires; 26 & 28 AWG Solid or Stranded Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port D SUB CONNECTOR, STANDARD, 25POS, RCPT DSUB, SOCKET, IDC, 1.38MM, 25WAY Conn;D-Sub;CableSocket;25Cnt;8300Series;Gray;CopperAlloy;26,28AWG 3M 8300 系列 2.8mm 节距 25 路 电缆安装 IDC D-sub 连接器 |
| Category |
Business
| Part # Aliases | 04671903121 DE610012796 | Product Category | D-Sub Standard Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | cUL,UL | RoHS Compliance | Yes |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Range deg/s | :3M - 8300 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | Gray | Pitch | 2.8mm |
| Weight | 3.200 lbs | Packaging | Tray |
| Cable Type | RibbonCable | Shell Size | :DB |
| Wire Gauge | 28-26 | Termination | IDC, Ribbon Cable |
| Contact Type | Signal | Body Material | :Steel |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Housing Finish | Tin | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Primary Material | D-Subminiature | Termination Style | IDC |
| Number of Contacts | 25 | Contact Termination | :IDC / IDT |
| Dielectric Material | PBT | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Type | CableSocket | Gender | Female |
| Series | 8300 | Features | Feed Through |
| Manufacturer | 8300 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
