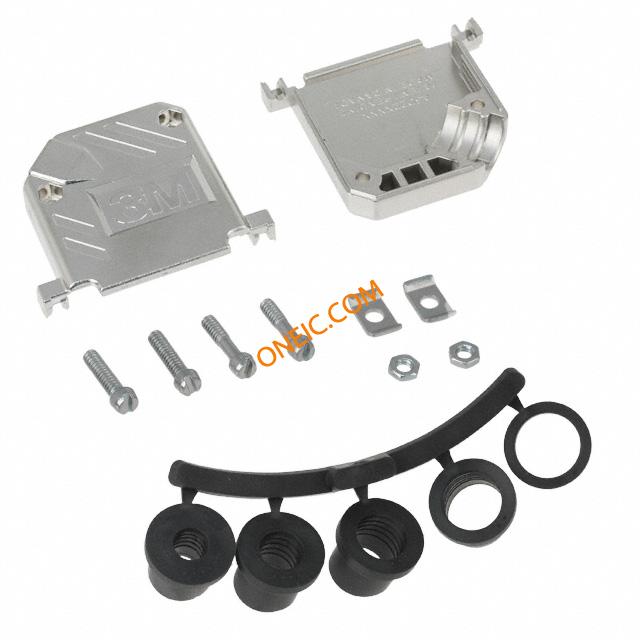

3357-6525-1C
| Manufacturer | |
| Description | Connector Accessories D-Sub Junction Shell Acrylonitrile Butadiene-Styrene D-Sub Backshells JUN.SHELL/D-SUB/25PO 60° EMI Junction Shell, Metalized Plastic, Corner-mount CONN D-SUB SHELL 25POS PLASTIC IDC 25W D SHELL BACKSHELL, D, SHIELDED, 25WAY IDC25WDSHELL D-Sub metallized hood 25P, 3357-6525-1C, 3M 3M 25 路 斜角 ABS D-sub 连接器底壳 |
| Category |
Business
| Part # Aliases | 05111164517 80400058295 | Product Category | D-Sub Backshells |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Mechanical
| Color | Silver | Depth | :18mm |
| Width | :53.1mm | Length | :44.2mm |
| Weight | 5 lbs | Plating | Nickel over Copper |
| Material | ABS | Shielding | Shielded |
| Cable Exit | 45° | Cable Type | Round |
| Shell Size | :DB | Mounting Type | Angled |
| Shell Plating | Nickel over Copper | Cable Diameter | 11.43 mm |
| Cable End Type | 60 deg | Screw Material | :Steel |
| Shell Material | Acrylonitrile Butadiene Styrene (ABS) | Material - Body | :ABS (Acrylonitrile Butadiene Styrene) |
| Housing Material | ABS | Color - Connectors | :Nickel |
| Number of Positions | 25 | Number of Cable Pairs | 1 |
| Screw Material - Plating | :Zinc | Diameter - Outside, Non-Expanded | :11.7mm |
Product Info
| Type | Shell | Series | 3357 |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Strain Relief |
| CAD Drawing | 3D CAD Model | Accessory Type | Two Piece Backshell |
| RF Family/Standard | 3357 | ||
