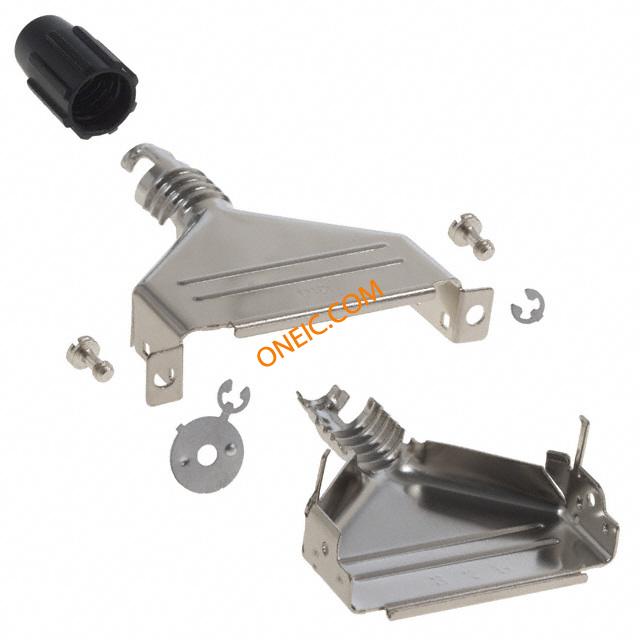

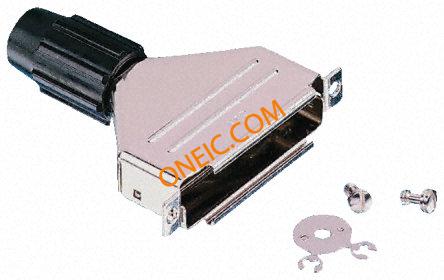

3357-9225
| Manufacturer | |
| Description | Connector Accessories D-Sub Junction Shell 25 POS Steel D-Sub Backshells 25P EMI JUNC SHELL METAL EMI Junction Shell, Metal, Center-mount BACKSHELL 25 POS 25 way IDC metal D backshell BACKSHELL, D, EMI, METAL, 25WAY Hood;D-Sub;25Pos;StraightExit;3357Series;Metal;0.120In.CblDia;EMI/ESD Metal housing 25P, 3357-9225, 3M 3M 25 路 直 钢 D-sub 连接器底壳 25P D-SUB 1 ENTRY CABLE |
| Category |
Business
| Part # Aliases | 05400737179 80610189658 | Product Category | D-Sub Backshells |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Standards | RoHSCompliant | Tariff No | 85369010 |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Silver | Weight | 5.100 lbs |
| Plating | Nickel | Material | Metal, Steel |
| Shielding | Shielded | Cable Exit | 180° |
| Cable Type | Round | Shell Size | :DB |
| Thread Size | 4-40UNC | Nut Material | GlassFilledPolyester(PBT) |
| Mounting Type | Straight | Shell Plating | Nickel |
| Cable Diameter | 10.6 mm | Cable End Type | Straight |
| Shell Material | Steel | Material - Body | :Steel |
| Housing Material | Steel | Color - Connectors | :Silver |
| Insulation Diameter | 0.12in. | Number of Positions | 25 |
| Number of Cable Pairs | 1 | Backshell Material, Plating | Metal |
Product Info
| Type | Shell | Series | 3357 |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Strain Relief |
| Manufacturer | Series3357 | Accessory Type | Two Piece Backshell |
| RF Family/Standard | 3357 | ||
