点击放大查看

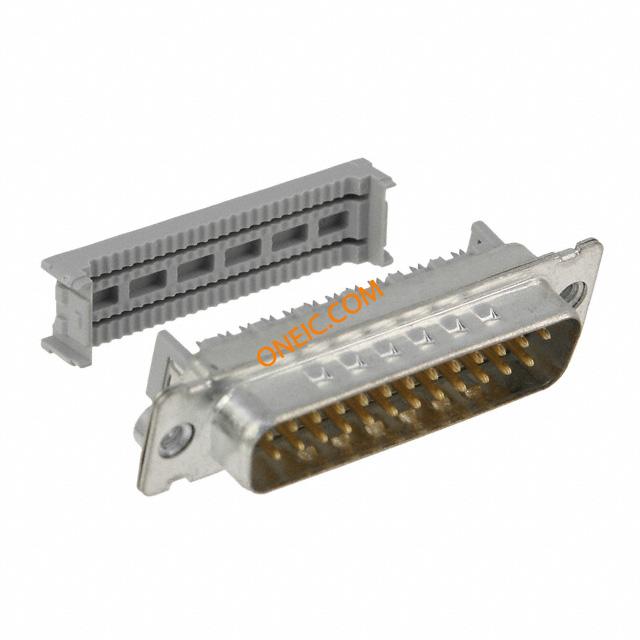

8225-8003
| Manufacturer | |
| Description | D-Sub Standard Connectors DSUB PLUG 25POS W/INSERT CONN DSUB PLUG 25POS IDC GOLD |
| Category |
Business
| Part # Aliases | 05111162310 DE610012606 | Product Category | D-Sub Standard Connectors |
| Standard Package | 200 | Factory Pack Quantity | 200 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Gray | Packaging | Bulk |
| Termination | IDC, Ribbon Cable | Contact Type | Signal |
| Mounting Type | Panel Mount | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polyester, Glass Filled | Number of Positions | 25 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Features | Feed Through, Grounding Indents | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
