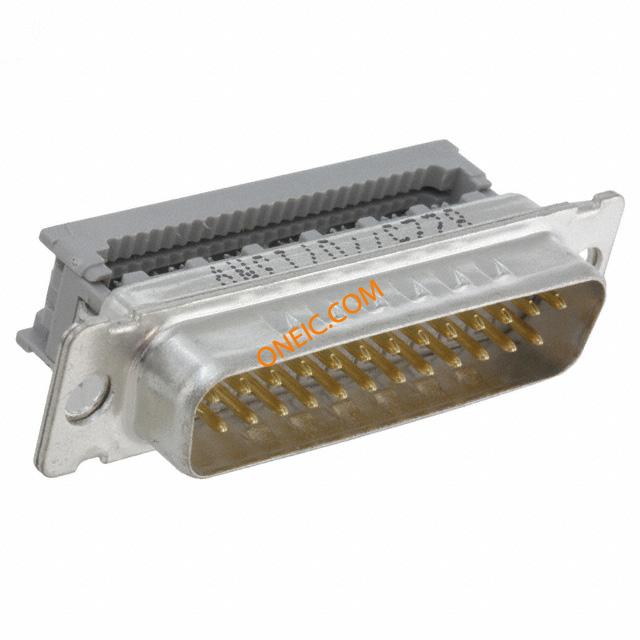

8225-8000
| Manufacturer | |
| Description | D-Sub Standard Connectors 25P OPEN COVER PLUG UNTHREADED INSERT CONN DSUB PLUG 25POS IDC GOLD Connector; D-Sub; 25 Contact DSUB, PLUG, IDC, 1.38MM, 25WAY Connector,D-Sub,25Contact |
| Category |
Business
| Part # Aliases | 00189587060 DE610012119 | Product Category | D-Sub Standard Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
Electrical
| Range deg/s | :3M - 8200 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | Gray | Weight | 1.314 lbs |
| Packaging | Bulk | Shell Size | :DB |
| Termination | IDC, Ribbon Cable | Contact Type | Signal |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Number of Contacts | 25 | Contact Termination | :IDC / IDT |
| Number of Positions | 25 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 3 (DB, B) |
Product Info
| Gender | Male | Series | 8200 |
| Features | Feed Through, Grounding Indents | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
