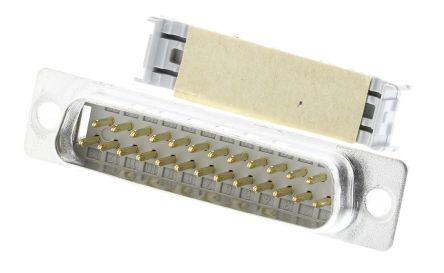

8225-6009
| Manufacturer | |
| Description | D-Sub Standard Connectors DELTA 25 M N 25P D-SUB PLUG Low profile Plug Connector D SUB PLUG 25CONT OPN CVR RVT CR 25 way IDC class 2 metal shell D plug PLUG, DSUB, IDC, CRIMP, 25WAY IDC,DCABLEPLUG25WAY D-sub plug 25P, 8225-6009, 3M 3M 8200 系列 2.76mm 节距 25 路 IDC D-sub 连接器, 插头, 钢外壳 25P D-SUB PLUG STRAIGHT |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Part # Aliases | 05111163582 DE610012036 | Standard Package | 200 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL E68080 |
| RoHS Compliance | Yes | ||
Electrical
| Range deg/s | :3M - 8200 Series | Voltage Rating | 1000V |
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Gray | Depth | 12.4mm |
| Pitch | 2.76mm | Width | 16.5mm |
| Length | 53.3mm | Weight | 0.15 |
| Packaging | Bulk | Cable Exit | NO |
| Shell Size | :DB | Wire Gauge | 28 TO 26 |
| Orientation | STRAIGHT | Shield Type | NO |
| Termination | IDC, Ribbon Cable | Contact Type | MALE |
| Pitch - Post | 1.27mm | Mounting Type | Panel Mount |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Number of Rows | 2 |
| Connector Style | D-Sub | Material - Body | :Steel |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Size / Dimension | 53.3 x 16.5 x 12.4mm | Number of Contacts | 25 |
| Contact Termination | :IDC / IDT | Number of Positions | 25 |
| Plating - Thickness | 1.0 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Contact Material - Plating | GOLD |
| Shell Size, Connector Layout | 3 (DB, B) | ||
Product Info
| Gender | Male | Series | 8200 |
| Features | Feed Through, Grounding Indents | Matchcode | 82256009 |
| Standard Leadtime | 5 weeks | ||
Environmental
| Operating Temperature | -55 TO 105°C | ||
