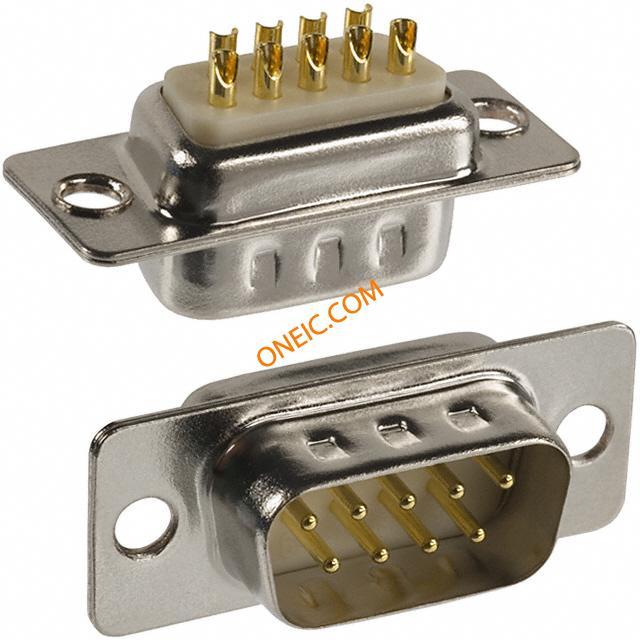

172-E09-103R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P MALE SOLDER CUP CONN DB9 MALE SOLDER CUP NKL CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - M Series | Current Rating (Max) | 5 A |
Mechanical
| Color | White | Weight | 0.0055 |
| Packaging | Tray | Shell Size | :DE |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | D-Sub |
| Material - Body | :Steel | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Solder | Number of Contacts | 9 |
| Contact Termination | :Solder | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Male | Series | :M-Series |
| Features | Grounding Indents | ||
Environmental
| Mating Cycles | :100 | Operating Temperature | -50°C ~ 100°C |
Documents & Media
Similar Parts

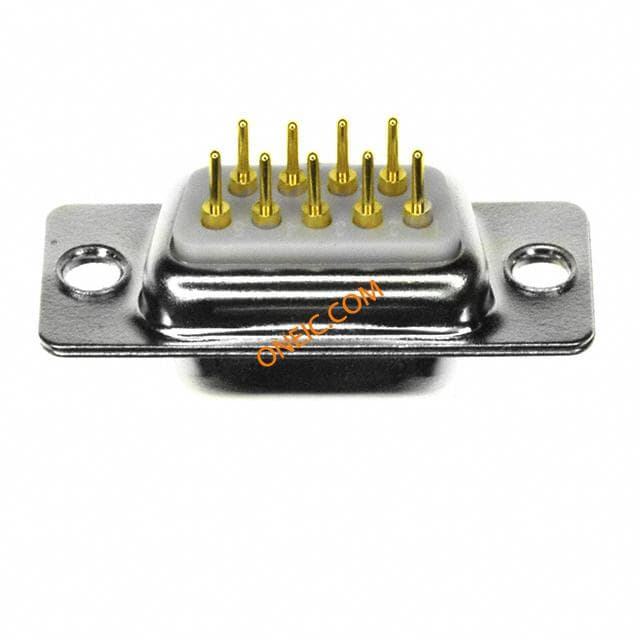

172-E09-213R001
NorComp
D-Sub Standard Connectors 9P FEMALE DIP SOLDER CONN DB9 FEMALE SOLDER DIP NKL DSUB, SOCKET, THT, 9WAY

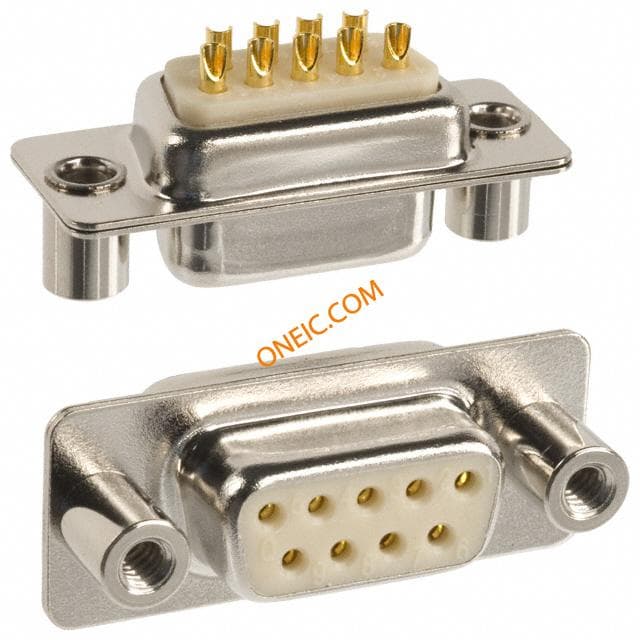

172-E09-203R031
NorComp
D-Sub Standard Connectors 9P FEMALE SODR CUP .250 NUTS M/S CONN DB9 FEMALE SOLDER CUP NKL

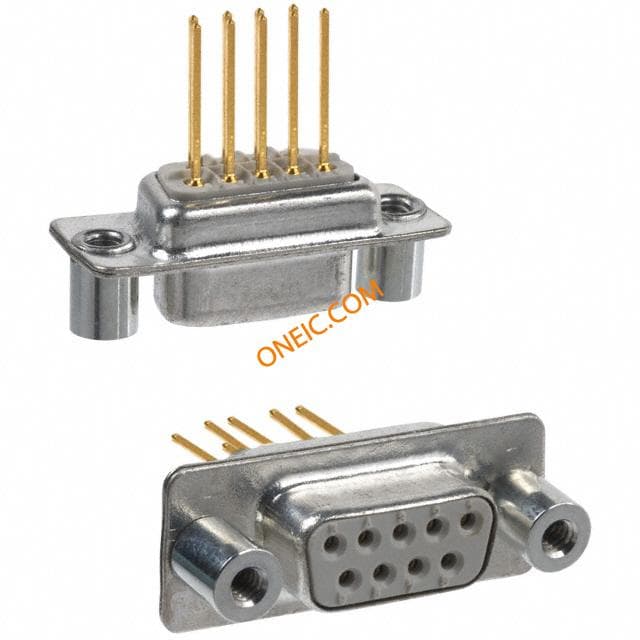

172-009-242R031
NorComp
D-Sub Standard Connectors 9 POS. WI/WR FEM. .250 NUTS M/S CONN DB9 FEMALE WW TIN

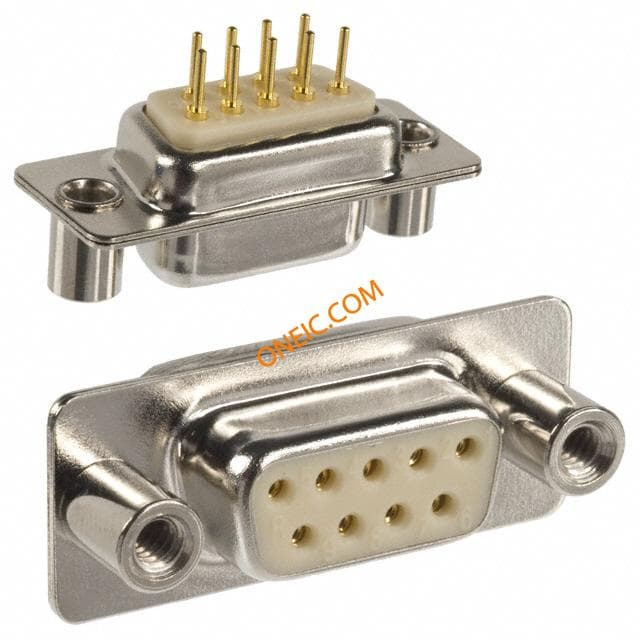

172-E09-213R031
NorComp
D-Sub Standard Connectors 9P FEMALE DIP SOLDER .250 NUTS M/S CONN DB9 FEMALE SOLDER DIP NKL

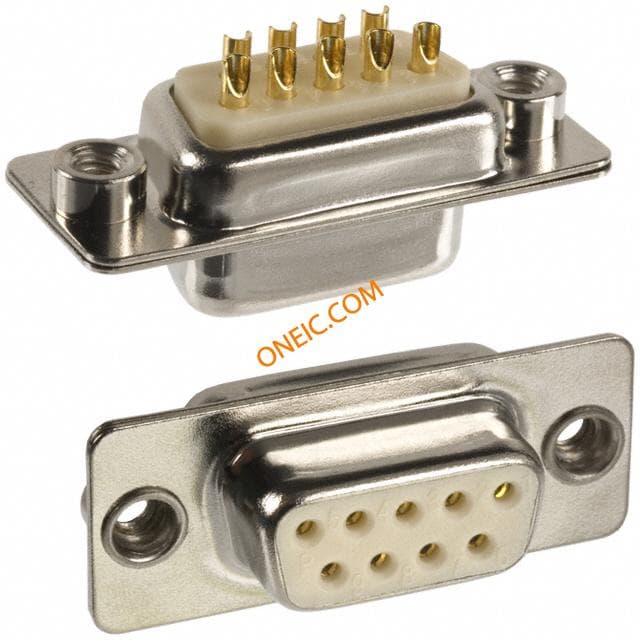

172-E09-203R011
NorComp
D-Sub Standard Connectors 9P FEMALE SODR CUP .098 NUTS B/S CONN DB9 FEMALE SOLDER CUP NKL

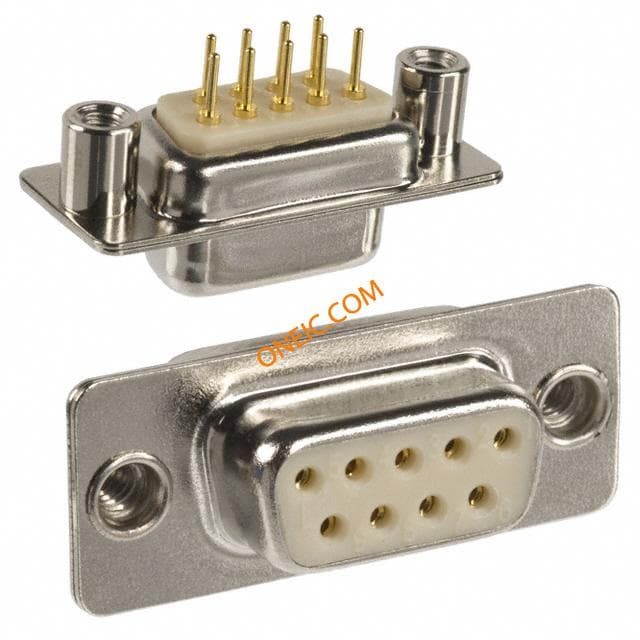

172-E09-213R021
NorComp
D-Sub Standard Connectors 9P FEMALE DIP SOLDER .250 NUTS B/S CONN DB9 FEMALE SOLDER DIP NKL

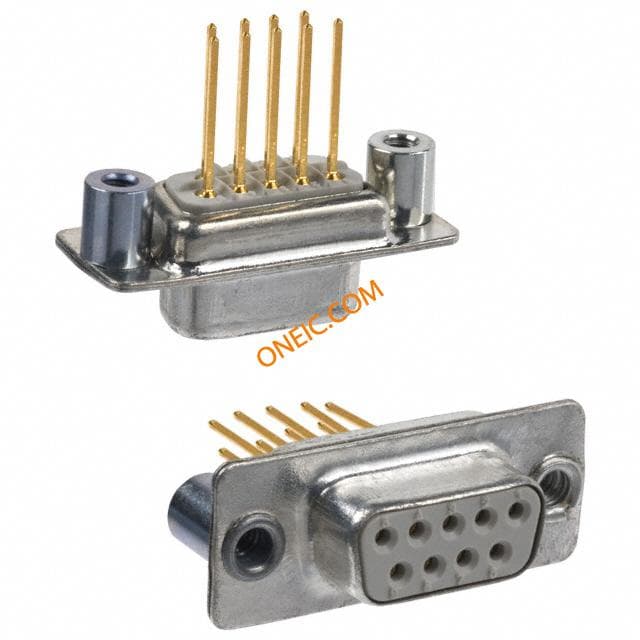

172-009-242R021
NorComp
D-Sub Standard Connectors 9P FEMALE WIRE-WRAP .250 NUTS B/S CONN DB9 FEMALE WW TIN

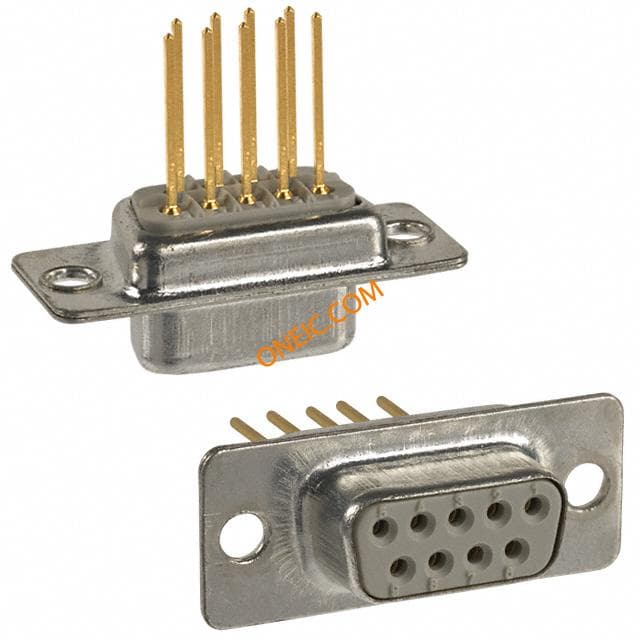

172-009-242R001
NorComp
D-Sub Standard Connectors 9P FEMALE WIRE TO WIRE CONN DB9 FEMALE WW TIN

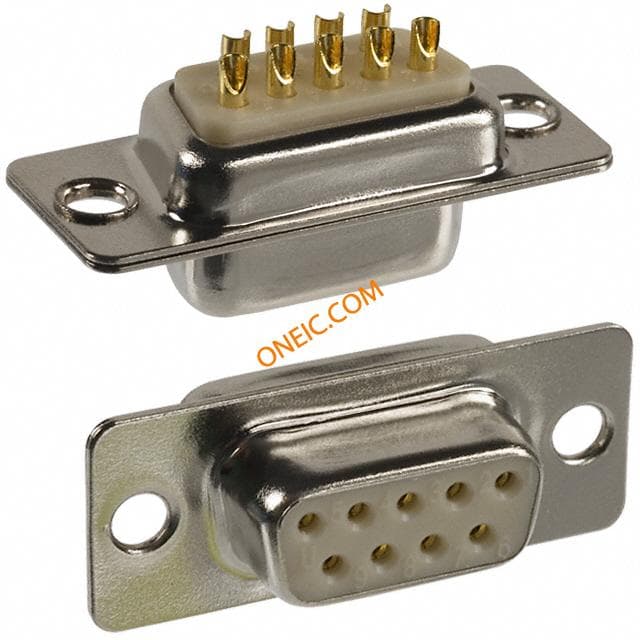

172-E09-203R001
NorComp
D-Sub Standard Connectors 9P FEMALE SOLDER CUP CONN DB9 FEMALE SOLDER CUP NKL CONNECTOR, D-SUB, RECPT, SOLDER, 9WAY

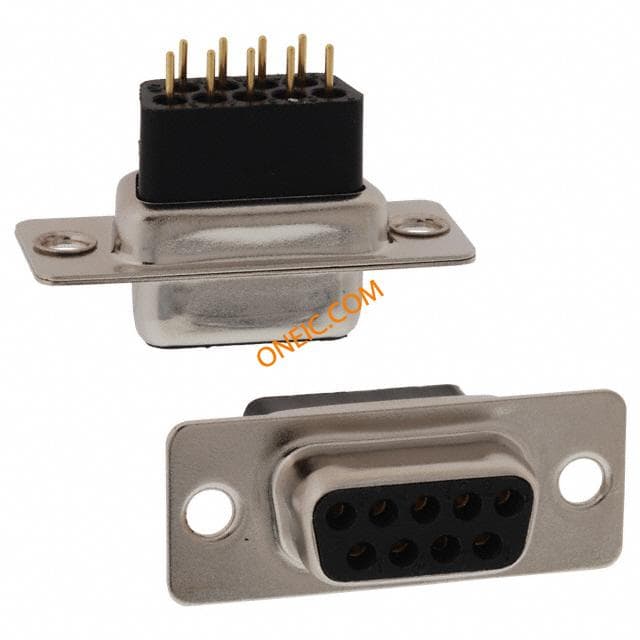

172-009-283L001
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FEMALE HI PROFILE NKL

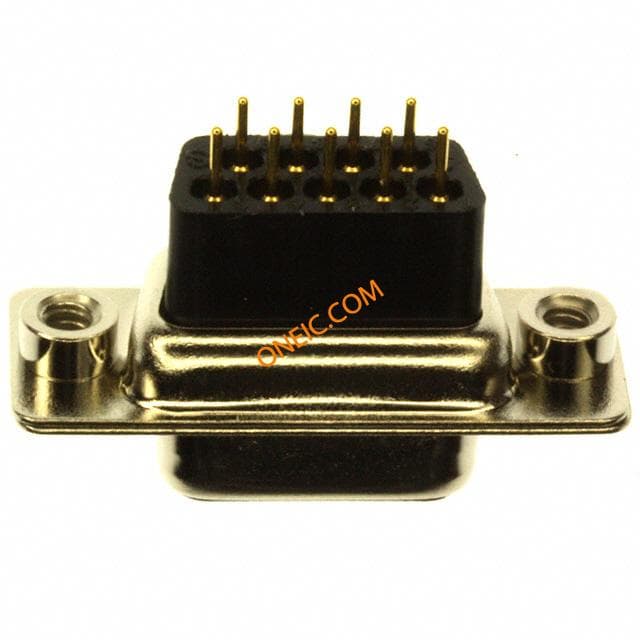

172-009-283L011
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FEMALE HI PROFILE NKL

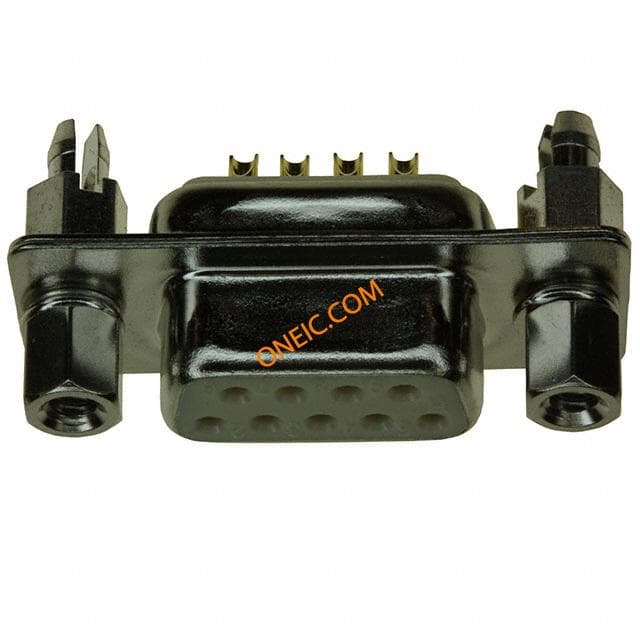

172-E09-203R911
NorComp
D-Sub Standard Connectors 9 POS. SO./CUP FEM. .225 SP/BL B/S CONN DB9 FEMALE SOLDER CUP NKL

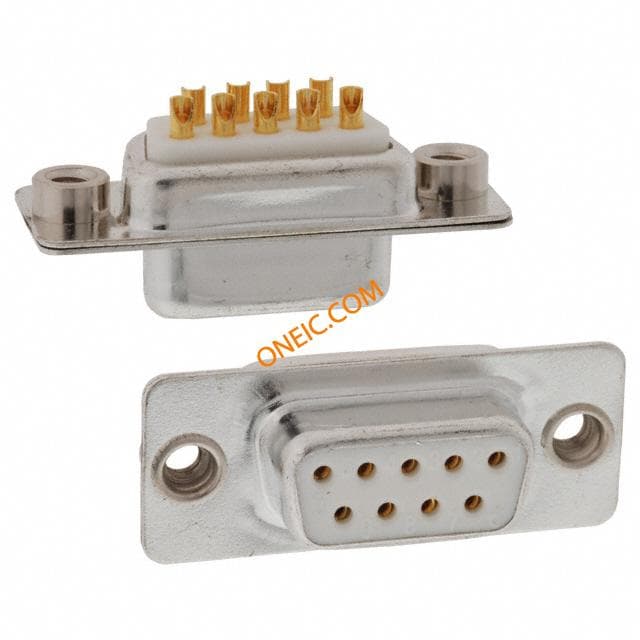

172-E09-202R011
NorComp
D-Sub Standard Connectors 9P Female CONN DB9 FEMALE SOLDER CUP TIN

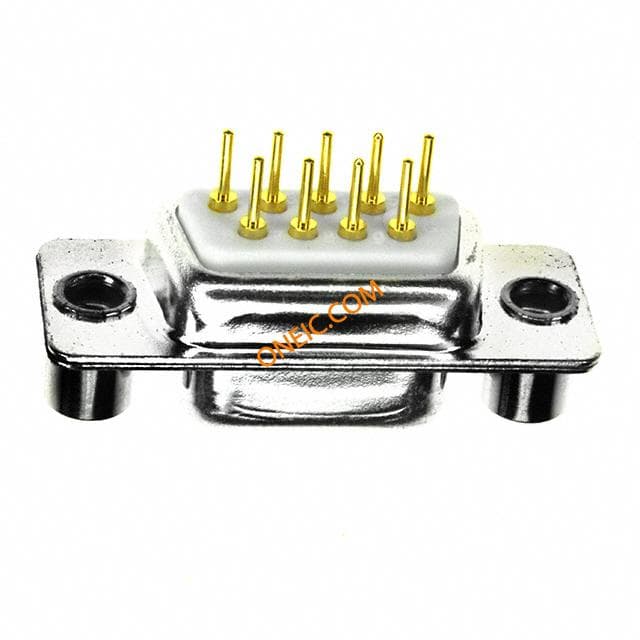

172-E09-212-031
NorComp
D-Sub Standard Connectors 9 POS. DIP/SO. FEM. .250 NUTS M/S CONN DB9 FEMALE SOLDER DIP TIN

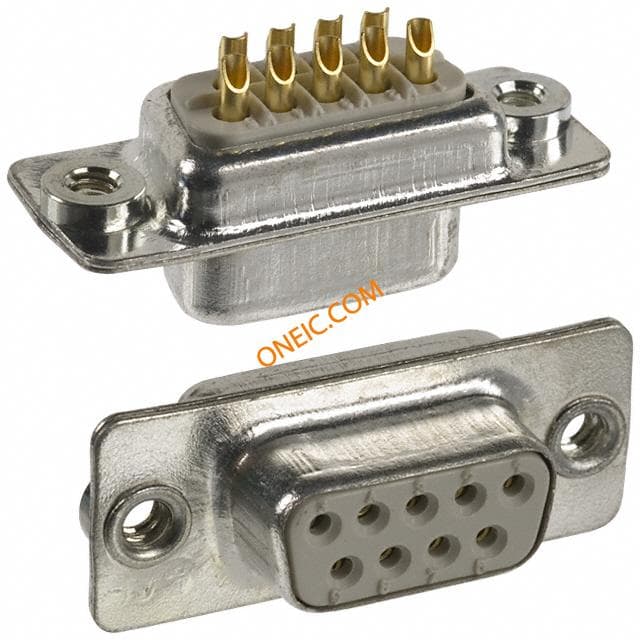

172-009-202R011
Norcomp Inc.
CONN DB9 FEMALE SOLDER CUP TIN D-Sub Standard Connectors 9POS Female 5A Steel

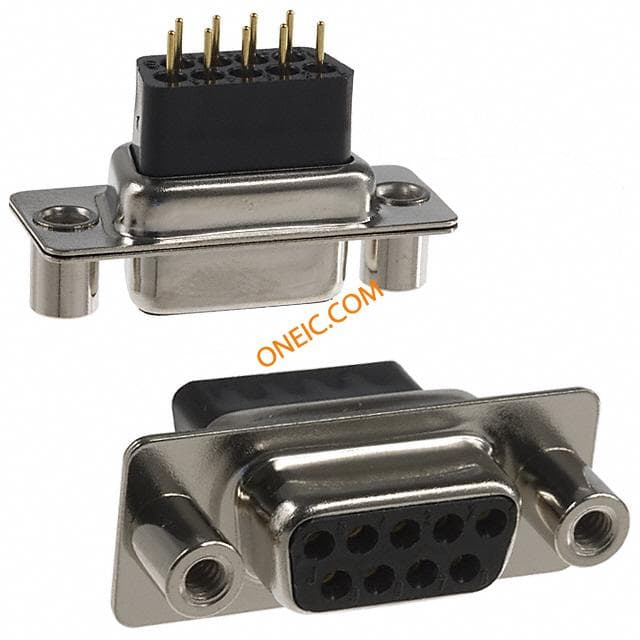

172-009-283L031
Norcomp Inc.
CONN DB9 FEMALE HI PROFILE NKL D-Sub Standard Connectors 9POS Female 5A Steel

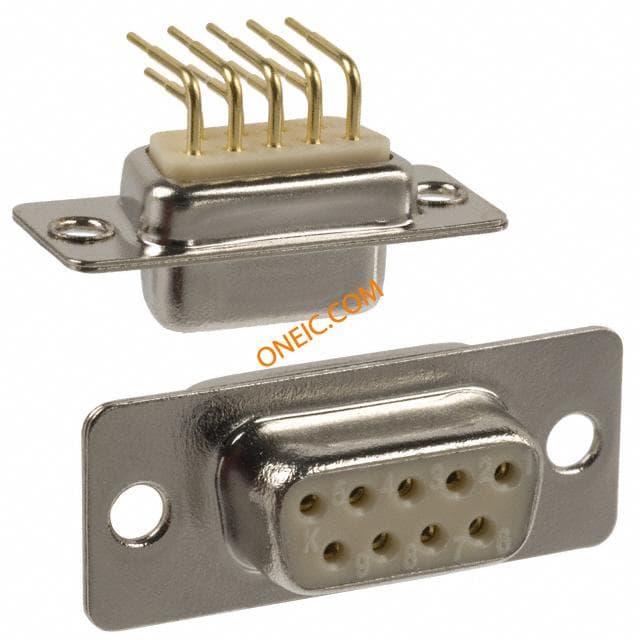

173-E09-213R001
Norcomp Inc.
CONN DB9 FEMALE .283" R/A NICKEL D-Sub Standard Connectors 9POS Female 5A Steel

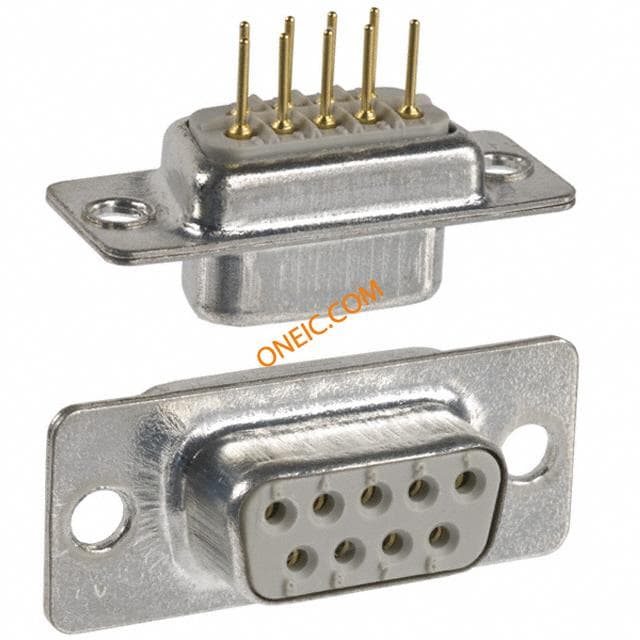

172-009-212R001
Norcomp Inc.
CONN DB9 FEMALE DIP SOLDER TIN D-Sub Standard Connectors 9POS Female 5A Steel

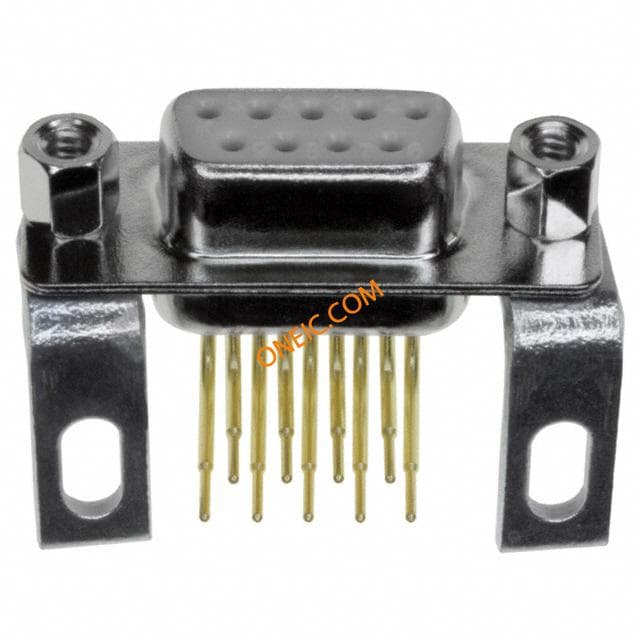

174-E09-213R141
Norcomp Inc.
CONN DB9 FMALE .370" R/A NKL D-Sub Standard Connectors 9POS Female 5A Steel

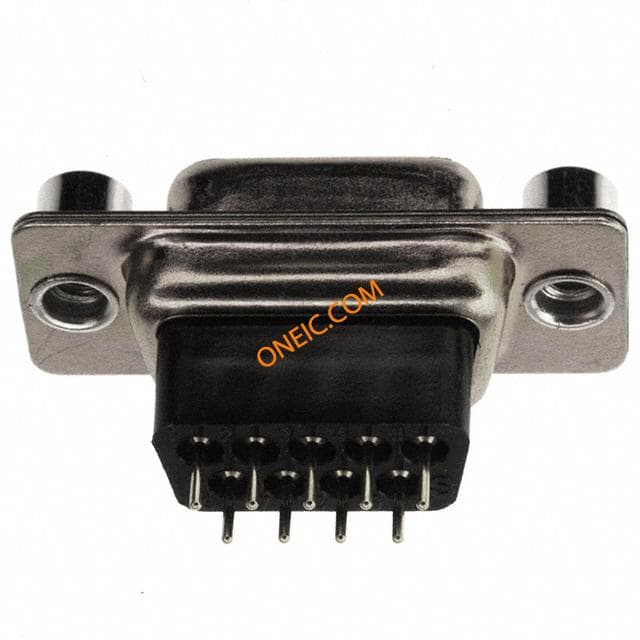

172-009-281L031
