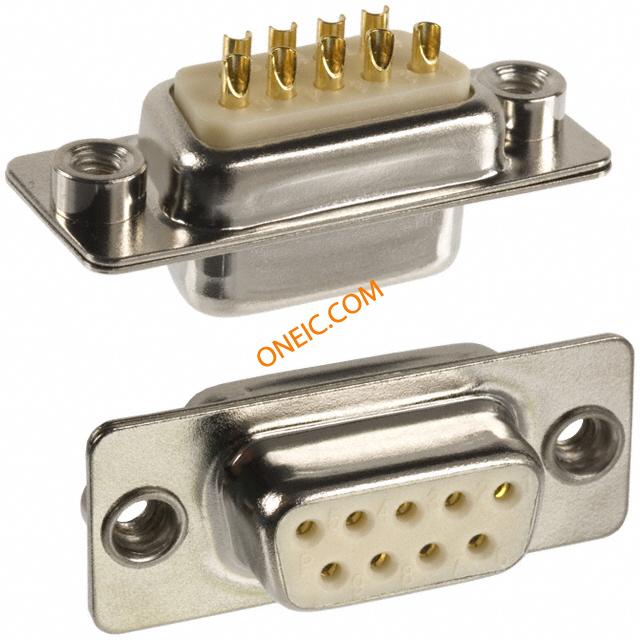

172-E09-203R011
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P FEMALE SODR CUP .098 NUTS B/S CONN DB9 FEMALE SOLDER CUP NKL |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 80 | Factory Pack Quantity | 80 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | White | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line); Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 9 | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Female | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
