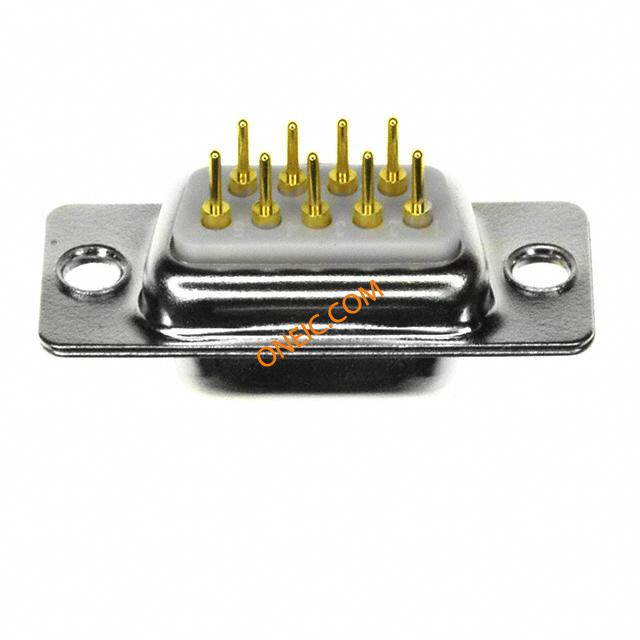

172-E09-213R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P FEMALE DIP SOLDER CONN DB9 FEMALE SOLDER DIP NKL DSUB, SOCKET, THT, 9WAY |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - M Series | Current Rating (Max) | 5 A |
Mechanical
| Color | White | Weight | 0.0058 |
| Packaging | Tray | Shell Size | :DE |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Through Hole | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Through Hole |
| Number of Rows | 2 | Connector Style | D-Sub |
| Material - Body | :Steel | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 9 |
| Contact Termination | :Solder | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Female | Series | :M-Series |
Environmental
| Mating Cycles | :100 | Operating Temperature | -50°C ~ 100°C |
Documents & Media
Similar Parts
172-E09-103R001
NorComp
D-Sub Standard Connectors 9P MALE SOLDER CUP CONN DB9 MALE SOLDER CUP NKL CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY
172-E09-103R031
NorComp
D-Sub Standard Connectors 9P MALE SOLDR CUP .250 NUTS M/S CONN DB9 MALE SOLDER CUP NKL
172-E09-103R021
NorComp
D-Sub Standard Connectors 9P MALE SOLDR CUP .250 NUTS B/S CONN DB9 MALE SOLDER CUP NKL
172-E09-103R011
NorComp
D-Sub Standard Connectors 9P MALE SOLDR CUP .098 NUTS B/S CONN DB9 MALE SOLDER CUP NKL
172-E09-102R001
NorComp
D-Sub Standard Connectors 9P Male Solder Cup Tin Shell plating CONN DB9 MALE SOLDER CUP TIN

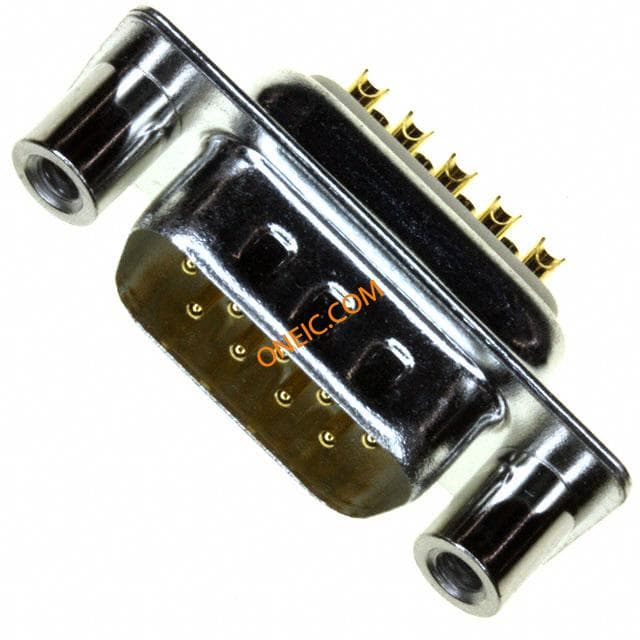

172-E09-102R031
NorComp
D-Sub Standard Connectors 9P Male CONN DB9 MALE SOLDER CUP TIN
172-E09-102R021
NorComp
D-Sub Standard Connectors 9P Male CONN DB9 MALE SOLDER CUP TIN
172-E09-102R011
NorComp
D-Sub Standard Connectors 9P Male CONN DB9 MALE SOLDER CUP TIN

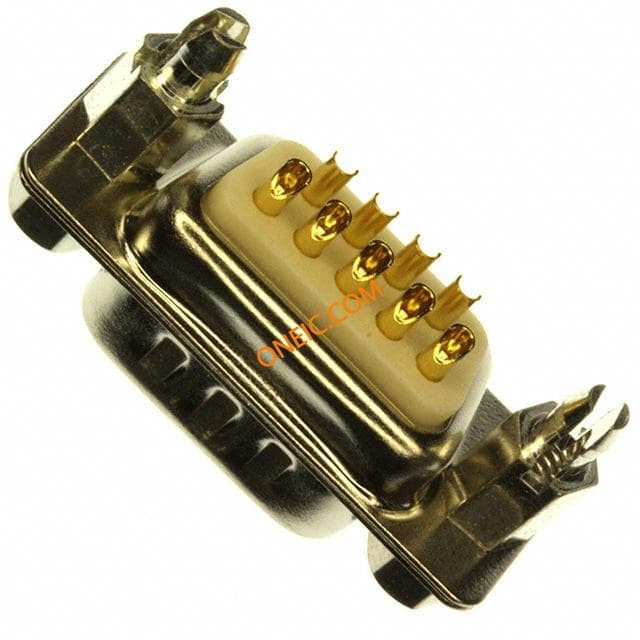

172-E09-103R911
