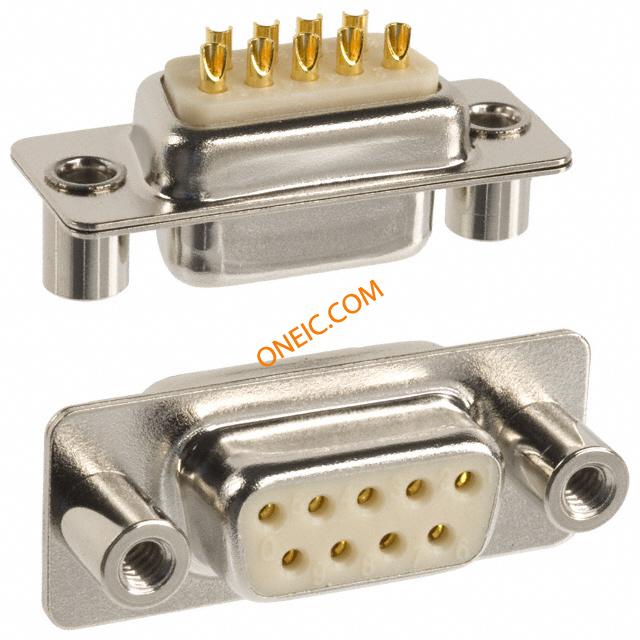

172-E09-203R031
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P FEMALE SODR CUP .250 NUTS M/S CONN DB9 FEMALE SOLDER CUP NKL |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 80 | Factory Pack Quantity | 80 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | White | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line); Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Mating Side (4-40) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 9 | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Female | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Similar Parts
172-E09-113R001
NorComp
D-Sub Standard Connectors 9P MALE DIP SOLDER CONN DB9 MALE SOLDER DIP NKL CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY
172-E09-103R001
NorComp
D-Sub Standard Connectors 9P MALE SOLDER CUP CONN DB9 MALE SOLDER CUP NKL CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY
978-009-010R031
NorComp
D-Sub Backshells 9P TOP ENTRY GREY PLASTIC BACKSHELL DB9 GREY PLASTIC

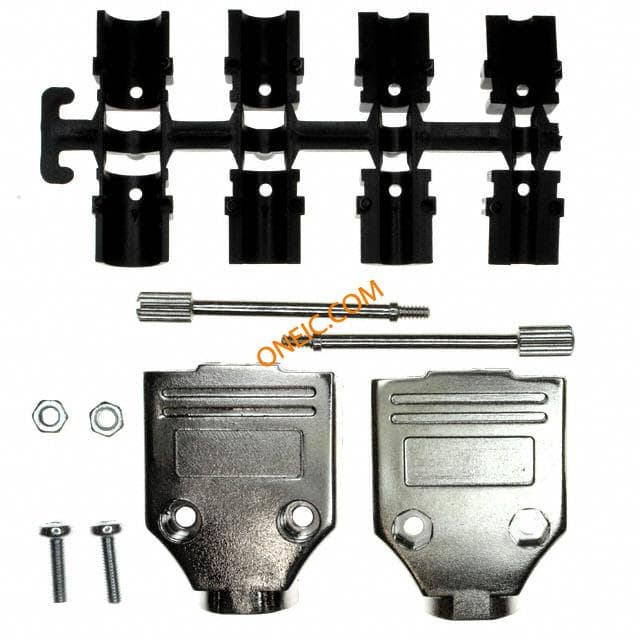

970-009-020R121
NorComp
D-Sub Backshells 9P TOP ENTRY PLASTIC BACKSHELL DB9 METALIZED PLASTIC
972-009-01SR031
NorComp
D-Sub Backshells 9P CLAMSHELL GREY SLIM LINE PLASTIC BACKSHELL DB9 CLAM SLIM GREY

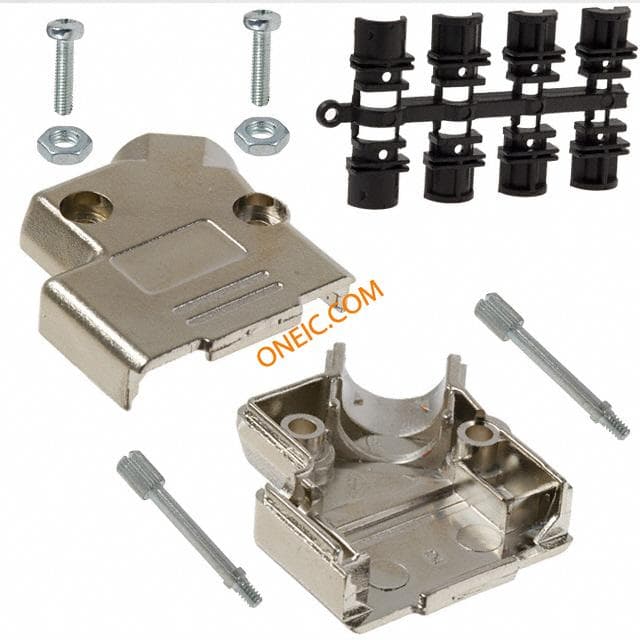

971-009-020R121
