点击放大查看

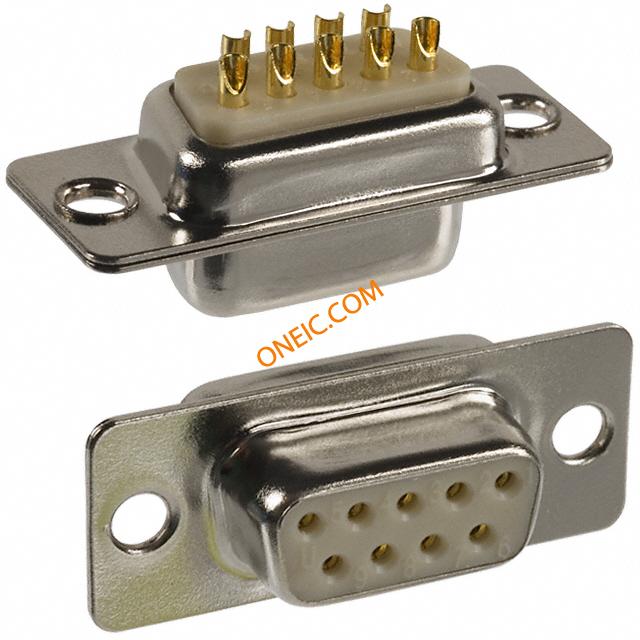

172-E09-203R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P FEMALE SOLDER CUP CONN DB9 FEMALE SOLDER CUP NKL CONNECTOR, D-SUB, RECPT, SOLDER, 9WAY |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - M Series | Current Rating (Max) | 5 A |
Mechanical
| Color | White | Weight | 0.0058 |
| Packaging | Tray | Shell Size | :DE |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | D-Sub |
| Material - Body | :Steel | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Solder | Number of Contacts | 9 |
| Contact Termination | :Solder | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Female | Series | :M-Series |
Environmental
| Mating Cycles | :100 | Operating Temperature | -50°C ~ 100°C |
Documents & Media
Similar Parts
172-E09-113R001
NorComp
D-Sub Standard Connectors 9P MALE DIP SOLDER CONN DB9 MALE SOLDER DIP NKL CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY
172-E09-103R001
NorComp
D-Sub Standard Connectors 9P MALE SOLDER CUP CONN DB9 MALE SOLDER CUP NKL CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY

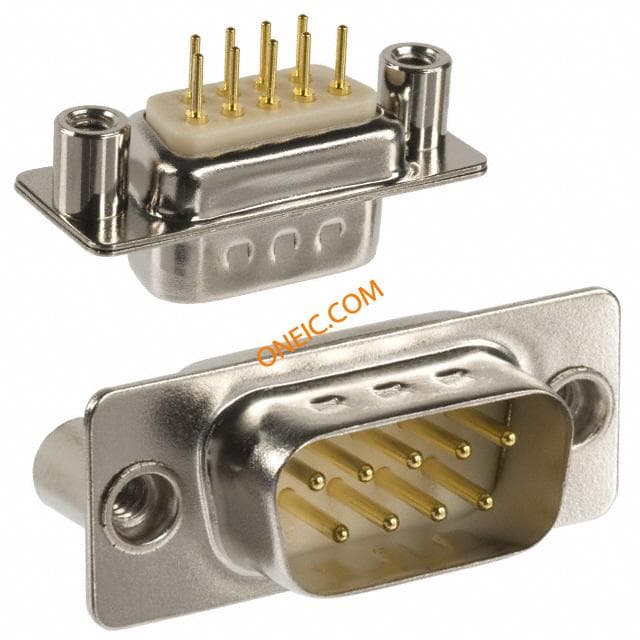

172-E09-113R021
NorComp
D-Sub Standard Connectors 9P MALE DIP SOLDER .250 NUTS B/S CONN DB9 MALE SOLDER DIP NKL
172-009-142R011
NorComp
D-Sub Standard Connectors 9P MALE .098 NUTS WIRE TO WIRE CONN DB9 MALE WIRE WRAP TIN

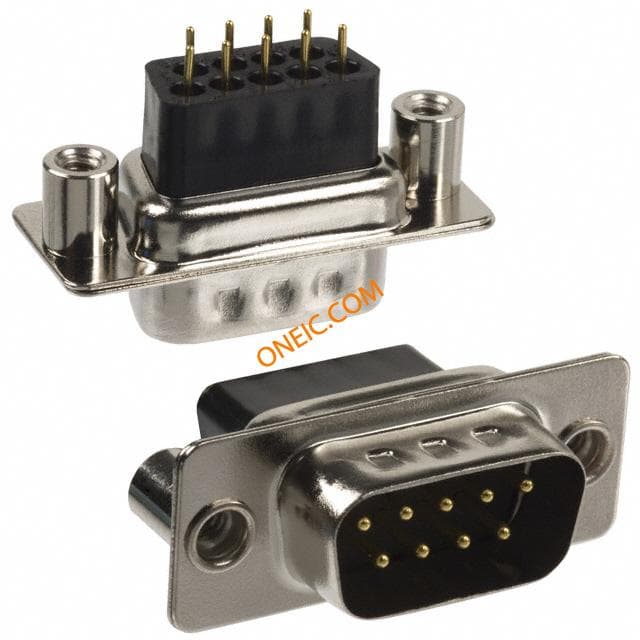

172-009-183L021
NorComp
D-Sub Standard Connectors 9P Male CONN DB9 MALE HI PROFILE NKL
172-009-142R021
NorComp
D-Sub Standard Connectors 9P WIRE/WIRE MALE .250 NUTS B/S CONN DB9 MALE WIRE WRAP TIN
172-E09-102R001
NorComp
D-Sub Standard Connectors 9P Male Solder Cup Tin Shell plating CONN DB9 MALE SOLDER CUP TIN
172-009-142R001
NorComp
D-Sub Standard Connectors 9P MALE WIRE TO WIRE CONN DB9 MALE WIRE WRAP TIN
172-009-142R911
NorComp
D-Sub Standard Connectors 9 POS. WI/WR MALE .225 SP/BL B/S CONN DB9 MALE VERT BRDLOCK WW
172-009-102R001
Norcomp Inc.
CONN DB9 MALE SOLDER CUP TIN D-Sub Standard Connectors 9POS Male 5A Steel
172-009-102R031
Norcomp Inc.
CONN DB9 MALE SOLDER CUP TIN D-Sub Standard Connectors 9POS Male 5A Steel
172-009-102R021
Norcomp Inc.
CONN DB9 MALE SOLDER CUP TIN D-Sub Standard Connectors 9POS Male 5A Steel

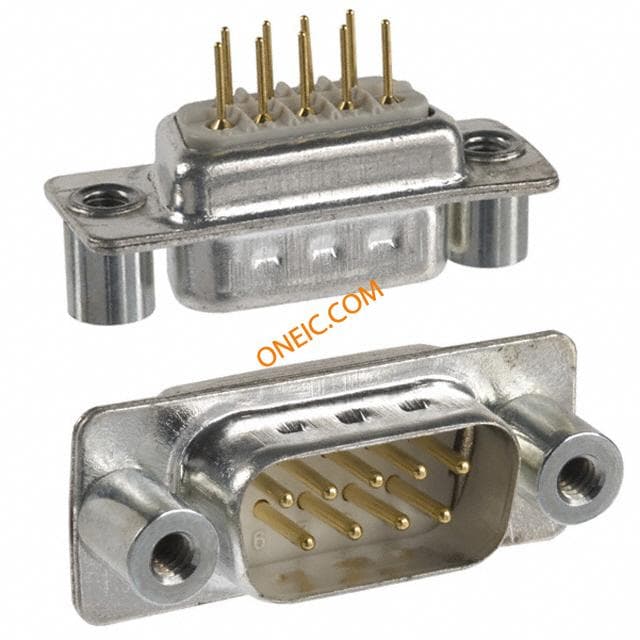

172-009-112R031
Norcomp Inc.
CONN DB9 MALE DIP SOLDER TIN D-Sub Standard Connectors 9POS Male 5A Steel

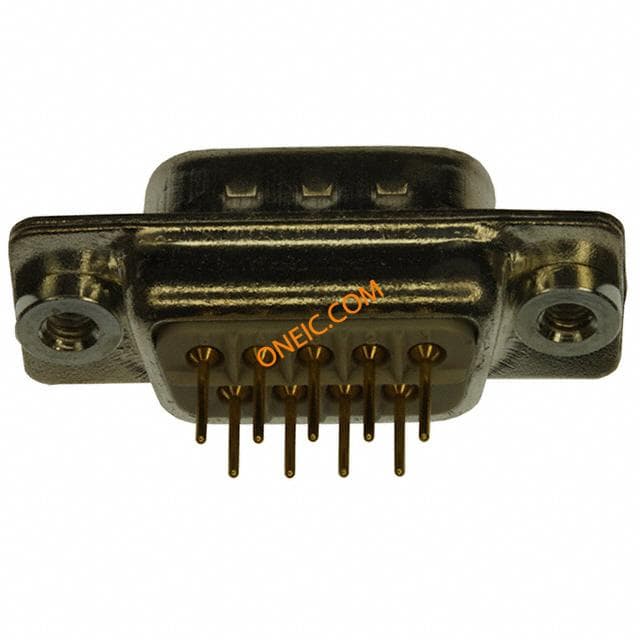

172-009-112R011
Norcomp Inc.
CONN DB9 MALE DIP SOLDER TIN D-Sub Standard Connectors 9POS Male 5A Steel
173-009-112R141
Norcomp Inc.
CONN DB9 MALE .283" RA PCB TIN

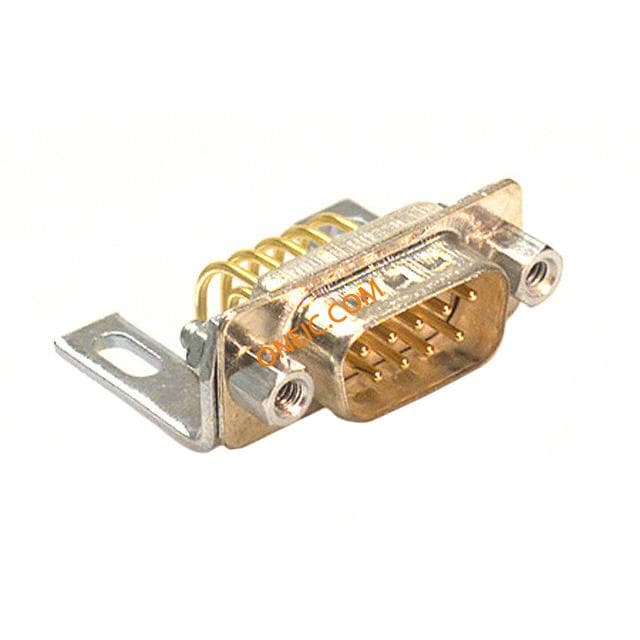

175-009-112R151
Norcomp Inc.
CONN DB9 MALE .454" RA PCB TIN
174-E09-111R001
Norcomp Inc.
CONN DB9 MALE .370" R/A CHROME

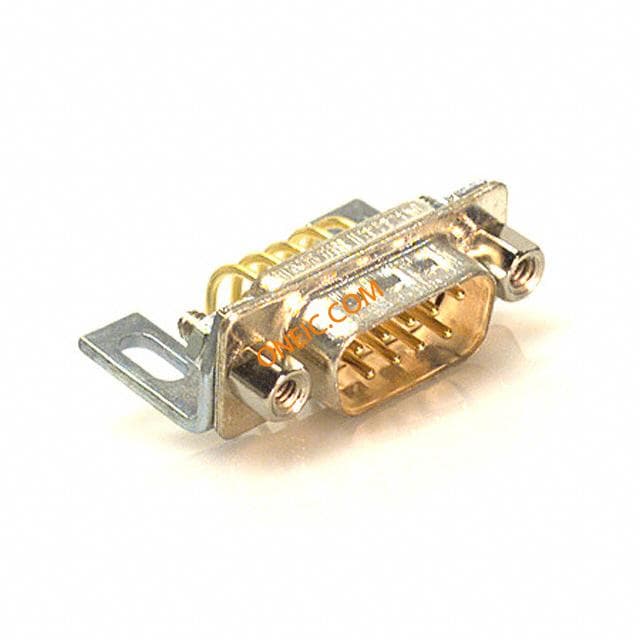

174-009-112R141
