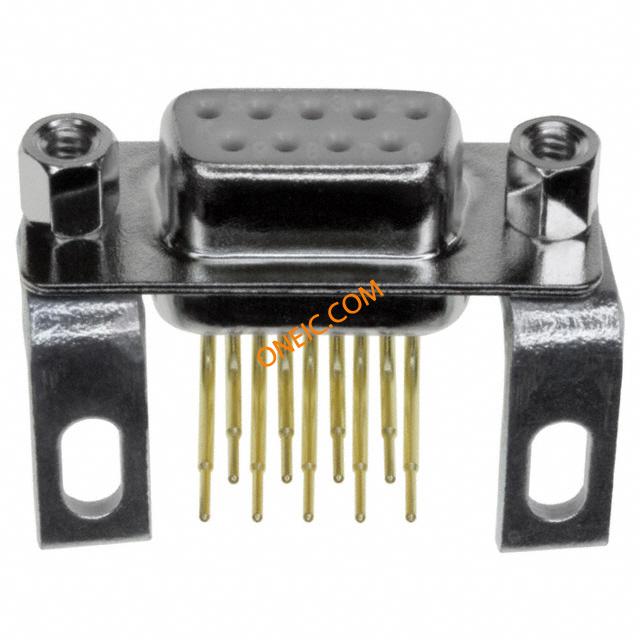

174-E09-213R141
| Manufacturer | |
| Description | CONN DB9 FMALE .370" R/A NKL D-Sub Standard Connectors 9POS Female 5A Steel |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Standard Package | 36 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | White | Packaging | Tray |
| Insulation | Insulated | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole, Right Angle |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Mating Side; Female Screwlock (4-40) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 9 |
| Insulation Material | Thermoplastic, Glass-Filled | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Female | Series | 174 |
| Features | Mounting Hardware | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
