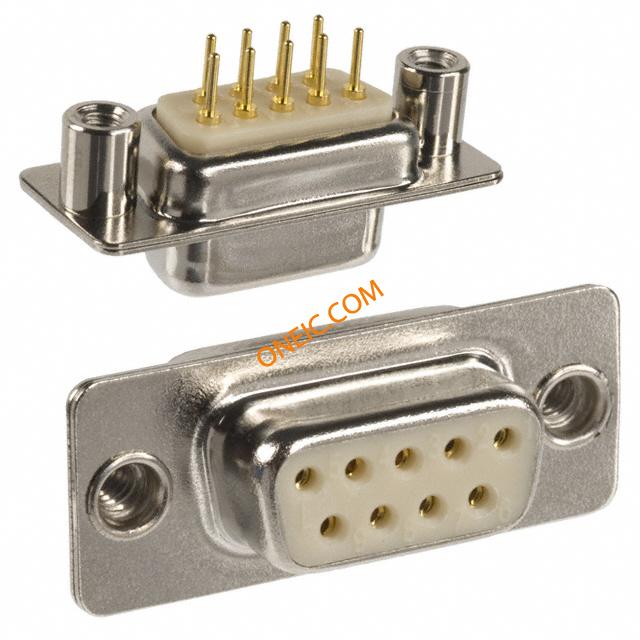

172-E09-213R021
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P FEMALE DIP SOLDER .250 NUTS B/S CONN DB9 FEMALE SOLDER DIP NKL |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 80 | Factory Pack Quantity | 80 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | White | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Through Hole | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Mounting Style | Through Hole |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polyamide (PA6T), Nylon 6T | Termination Style | Solder |
| Number of Contacts | 9 | Number of Positions | 9 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Female | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Archive
PDF Document
PDF Document
PDF Document
Similar Parts
172-E09-103R001
NorComp
D-Sub Standard Connectors 9P MALE SOLDER CUP CONN DB9 MALE SOLDER CUP NKL CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY
$9.0600
Details

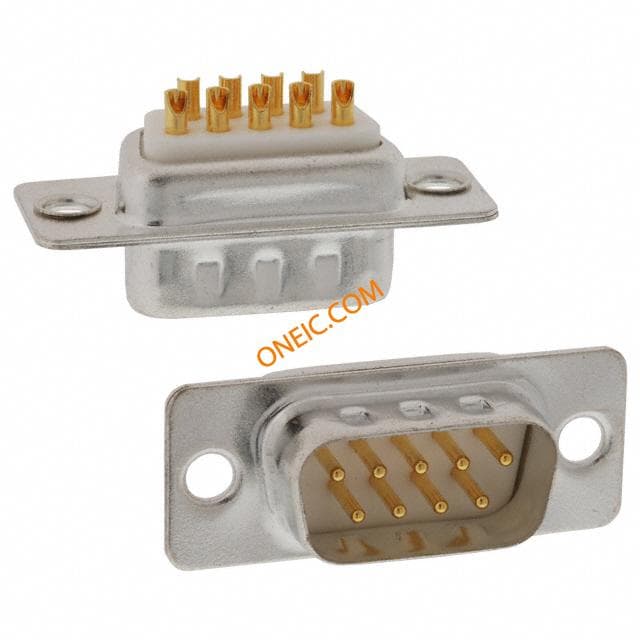

172-E09-102R001
NorComp
D-Sub Standard Connectors 9P Male Solder Cup Tin Shell plating CONN DB9 MALE SOLDER CUP TIN
$7.4800
Details

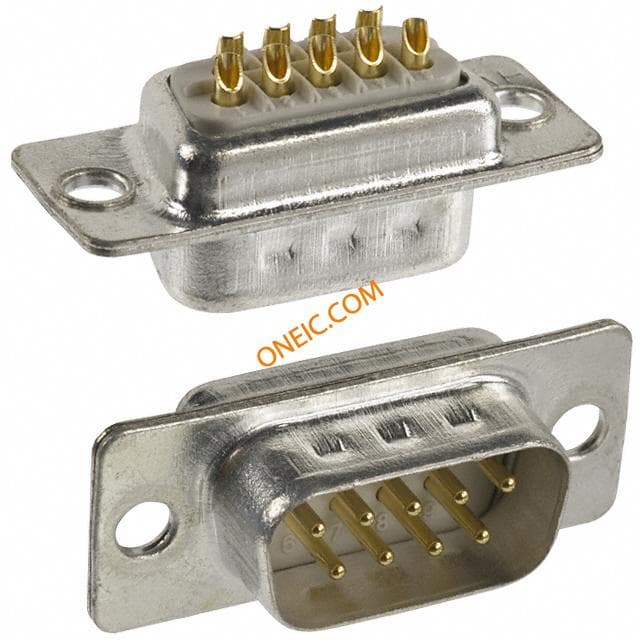

172-009-102R001
