C016 30C006 100 12
| Manufacturer | |
| Description | Conn Circular M 7 POS Solder ST Panel Mount 7 Terminal 1 Port 06P+PE MALE RECEPT. C16-M CONN MALE RCPT 6+PE SOLDER SILVR 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER SILVR CONTACT CIRCULAR, RECEPTACLE, 6+PE WAY, PANEL connector, plastic circ, male panel recept, 6+gnd silver plt cont, solder term, black Connector: circular; socket; male; Series: ECOMATE (C016); PIN:7 Appliance plug 6+PE, C016 30C006 100 12, Amphenol |
| Category |
Business
| MOQ | 500 | Unit Pack | 50 |
| Part # Aliases | 81K1485 | Product Category | Circular DIN Connectors |
| Standard Package | Boxed | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85389099 |
| Automotive | NO | Rad Hardened | No |
| Leadfree Defin | RoHS-conform | Approval Agency | :CSA, VDE |
| Protection Features | 65/67 | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 250V | Voltage - Supply | DIN |
| Contact Resistance | :5mohm | Voltage - Breakdown | :4000V |
| Current Rating (Max) | 12A | Insulation Resistance | :10Mohm |
Mechanical
| Color | Black | Depth | 38 mm |
| Height | 29 mm | Weight | 0.021 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 10 | Orientation | Keyed |
| Shell Style | Plug | Termination | Solder |
| Weight (g): | 19.20000 | Contact Form | 6Signal/1Ground |
| Contact Type | 6Signal/1Ground | Mounting Type | Panel Mount |
| Release Force | :30N | Angle of Throw | Straight |
| Connector Type | Receptacle, Male Pins | Contact Finish | Silver |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | Plastic | Connector Usage | Threaded |
| Insertion Angle | :- | Insertion Force | :15N |
| Locking Feature | threaded joint, external thread | Material - Body | :Nylon (Polyamide) |
| Contact Material | :- | Housing Material | Polyamide |
| Length - Overall | 32 mm | Package Quantity | 50 |
| Primary Material | DIN | Connector - Cable | socket |
| Termination Style | MALE | 1st Contact Gender | M |
| Color - Connectors | :Black | Number of Contacts | 7 |
| Contact Termination | :Solder | Dielectric Material | Polyamide |
| Number of Positions | 7 | Shell Size - Insert | :- |
| Mounting Hole Diameter | 0.866 " | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | RECEPTACLE | Mounting Panel Thickness | :31mm |
| Wire Gauge or Range - mm2 | :0.75mm² | Contact Material - Plating | -40 TO 125 |
| 1st Connector Mounting Type | :Panel | 1st Connector Mounting Feature | 6+PE |
Product Info
| Spg | 50 | Type | Circular |
| Gender | RCP | Series | ECOMATE |
| Features | Screw Locking | Matchcode | C01630C00610012 |
| Manufacturer | C016 Series | Product Type | Connectors |
| Adapter Series | ECOMATE (C016) | Number of Units | 1 |
| Standard Leadtime | 12 weeks | RF Family/Standard | C016 |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | SCREW°C | ||
Documents & Media
Similar Parts
C016 30F006 100 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLK SODR SILVR CONTACT CONN FMLE PLUG 6+PE R/A SLD SLVR 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts Conn Circular F 7 POS Solder RA Cable Mount 7 Terminal 1 Port connector, plastic circ, rt angle fem cable conn, 6+gnd silver plt, solder term, blk Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 Cable socket, 90° 6+PE, C016 30F006 100 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座
C016 30D006 100 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLUE SODR SILVR CONTACT CONN FEMALE PLUG 6+PE SILVER BLU Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port SOCKET, FREE, SOLDER, 6P+E WAY CONNECTOR, CIRCULAR, RCPT, 6+PE, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blue
C016 30C006 100 12
amphenol
Conn Circular M 7 POS Solder ST Panel Mount 7 Terminal 1 Port 06P+PE MALE RECEPT. C16-M CONN MALE RCPT 6+PE SOLDER SILVR 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER SILVR CONTACT CIRCULAR, RECEPTACLE, 6+PE WAY, PANEL connector, plastic circ, male panel recept, 6+gnd silver plt cont, solder term, black Connector: circular; socket; male; Series: ECOMATE (C016); PIN:7 Appliance plug 6+PE, C016 30C006 100 12, Amphenol
C016 10F006 000 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLUE CRIMP CONN PLUG 6+PE CBL SKT RA CRIMP SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, blue

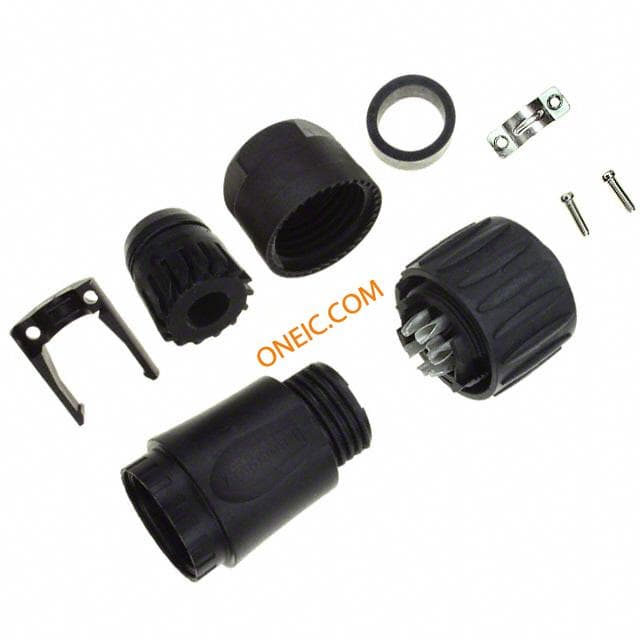

C016 30D006 110 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLK SODR SIL IN ST RELF CONN FEMALE PLUG 6+PE SILVER BLK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, FREE, ECOMATE, 6+PE CONN, CIRCULAR, RCPT, 6POS, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; with cable clamp; female; PIN:7; 250V Cable socket 6+PE, C016 30D006 110 12, Amphenol Amphenol Eco-Acoplamiento 系列 6 + PE路 电缆安装 直向 连接器 插座

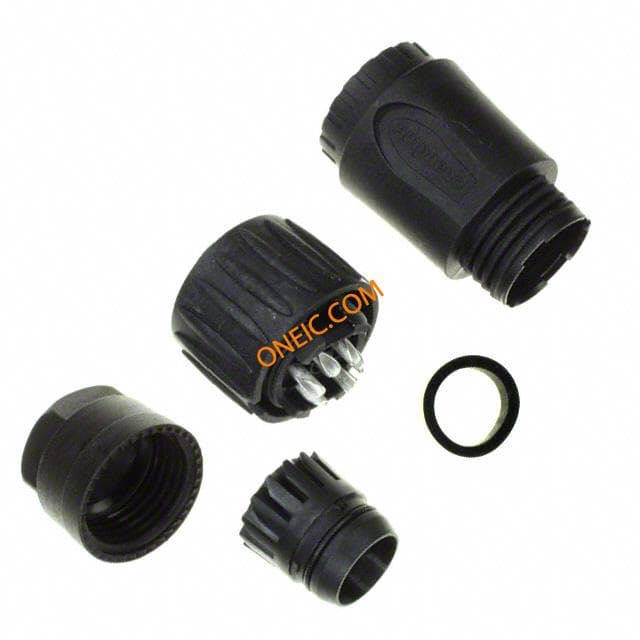

C016 30D006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLK SODR GLD CONTACT CONN FEMALE PLUG 6+PE GOLD BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, PLUG, 6+PE WAY, CABLE connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, black cableconnfemalesold6+PE,goldpltcts Amphenol Eco-Mate 系列 7路 电缆安装 直向 连接器 插座 , 母触点

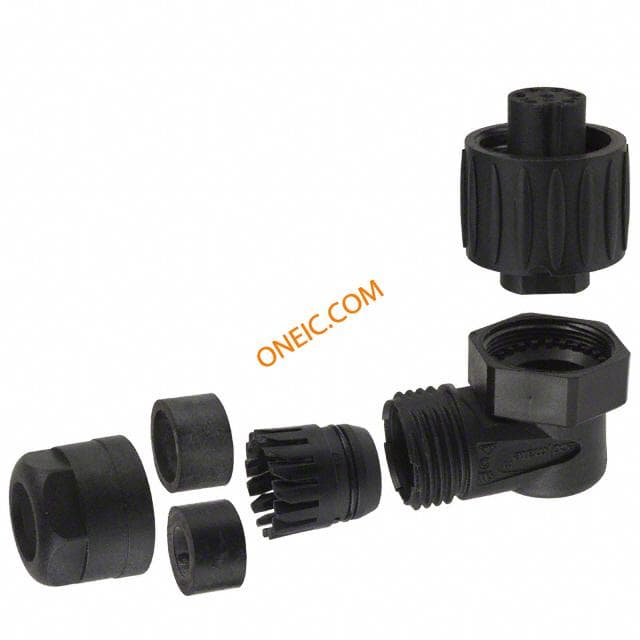

C016 10F006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLACK CRIMP CONN FMLE PLUG 6+PE R/A BLACK 7 Pole Male Right Angle Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, RCPT, R/A, 6+PE WAY, CABLE connector, plastic circ, rt angle fem cable housing, for 6+gnd crimp contact, black Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直角 连接器 插座

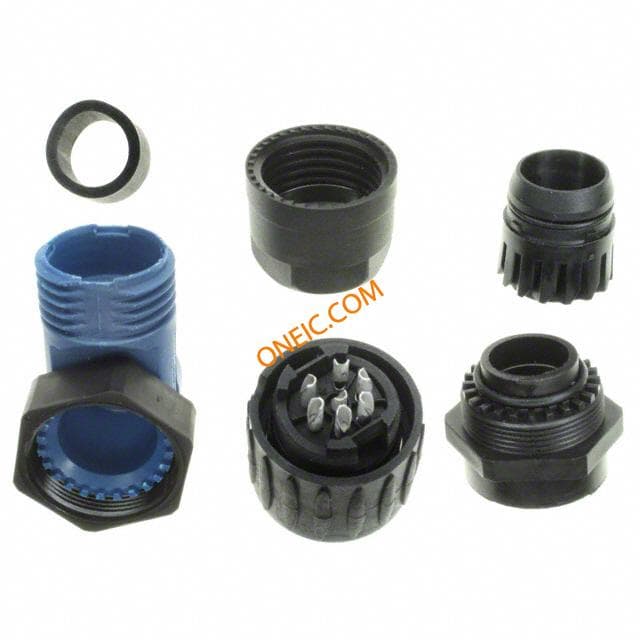

C016 30F006 100 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM R/A BLUE SODR SILVR CONTACT CONN FMALE PLUG 6+PE R/A SLV BLU Conn Circular F 7 POS Solder RA Cable Mount 7 Terminal 1 Port SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle female cable conn, 6+gnd silver plt, solder, blue Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 Cable socket, 90° 6+PE, C016 30F006 100 10, Amphenol

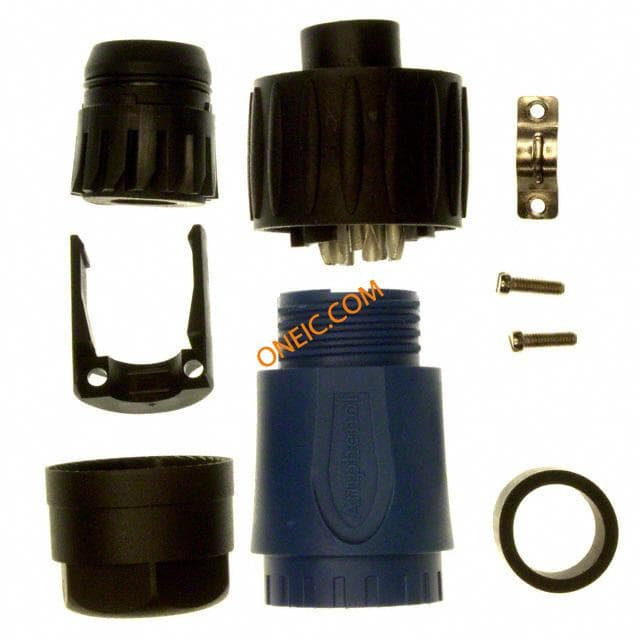

C016 30D006 110 10
Amphenol Tuchel
Circular DIN Connectors 6+PE FEM STRT BLUE SODR SIL IN ST RELF Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port 06P+PE FEMALE CABLE CON. C16-M CONN FEMALE PLUG 6+PE SILVER BLU SOCKET, FREE, SOLDER, 6P+E WAY connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blue Connector: circular; plug; with cable clamp; female; PIN:7; 250V Cable socket 6+PE, C016 30D006 110 10, Amphenol
C016 10D006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE FEMALE STRAIGHT BLACK CRIMP Conn Circular F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CONN FMLE PLUG 6+PE BLACK connector, plastic circ, str fem cable housing, for 6+gnd crimp socket cont, black Connector: circular; plug; w/o terminals; female; PIN:7; IP65,IP67

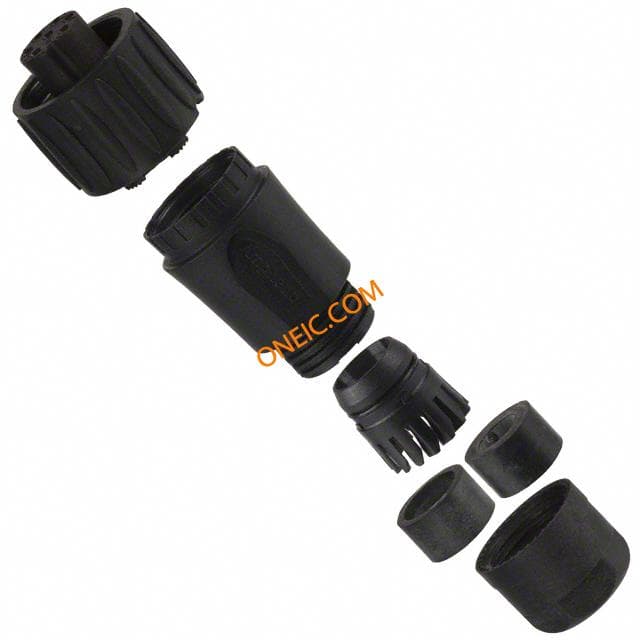

C016 30D006 100 12
