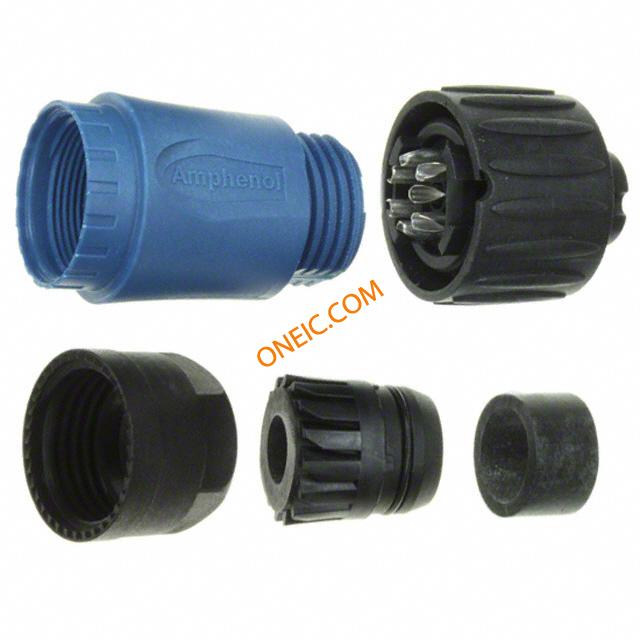

C016 30D006 100 10
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE FEM STRT BLUE SODR SILVR CONTACT CONN FEMALE PLUG 6+PE SILVER BLU Conn Circular F 7 POS Solder ST Cable Mount 7 Terminal 1 Port SOCKET, FREE, SOLDER, 6P+E WAY CONNECTOR, CIRCULAR, RCPT, 6+PE, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blue |
| Category |
Business
| Product Category | Circular DIN Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Rad Hardened | No |
| Approval Agency | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | DIN |
| Contact Resistance | :5mohm | Current Rating (Max) | 10 A |
| Insulation Resistance | :10Mohm | ||
Mechanical
| Color | Blue | Weight | 0.041 |
| Diameter | 30 mm | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | :20AWG |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder | Contact Form | 6Signal/1Ground |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line) |
| Release Force | :30N | Angle of Throw | Straight |
| Cable Diameter | 6 mm to 12.5 mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | :Straight |
| Connector Usage | Threaded | Insertion Angle | :- |
| Insertion Force | :15N | Material - Body | :Nylon (Polyamide) |
| Contact Material | :- | Housing Material | Polyamide |
| Length - Overall | 73 mm | Primary Material | DIN |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Blue / Black | Number of Contacts | 6 |
| Contact Termination | :Solder | Dielectric Material | Polyamide |
| Number of Positions | 7 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 6 + 1 Ground (PE) |
| Exterior Housing Material | :Polyamide 6.6/PA6 | Wire Gauge or Range - mm2 | :0.75mm² |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :12.5mm |
Product Info
| Type | Circular | Gender | PL |
| Series | eco mate | Features | Cable Clamp |
| Manufacturer | C016 Series | Product Type | Connectors |
| RF Family/Standard | C016 | Application Specifics | Commercial |
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP 67, IP 65 |
| Operating Temperature | -40°C ~ 125°C | ||
