C016 10D006 000 12
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE FEMALE STRAIGHT BLACK CRIMP Conn Circular F 7 POS Crimp ST Cable Mount 7 Terminal 1 Port CONN FMLE PLUG 6+PE BLACK connector, plastic circ, str fem cable housing, for 6+gnd crimp socket cont, black Connector: circular; plug; w/o terminals; female; PIN:7; IP65,IP67 |
| Category |
Business
| Product Category | Circular DIN Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency Marking | UL Recognized/CSA/VDE | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 250 V | Voltage - Supply | DIN |
| Current Rating (Max) | 13 A | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Black | Weight | 0.04 kg |
| Diameter | 30 | Packaging | Bulk |
| Cable Exit | Yes | Wire Gauge | 26-16 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Crimp | Contact Form | Crimp |
| Contact Size | 1.6mm | Contact Type | 6Signal/1Ground |
| Mounting Type | Cable Mount | Shell Plating | Polyamide (PA) |
| Angle of Throw | Straight | Cable Diameter | 6-12.5 mm |
| Connector Type | Plug for Female Contacts | Contact Finish | Silver/Gold |
| Fastening Type | Threaded | Mounting Style | Wire |
| Package / Case | Plastic | Connector Usage | Threaded |
| Locking Feature | threaded joint, internal thread | Housing Material | Polyamide |
| Length - Overall | 73 | Package Quantity | 5 |
| Primary Material | DIN | Connector - Cable | plug |
| Termination Style | Crimp | 1st Contact Gender | F |
| Color - Connectors | black | Number of Contacts | 7 |
| Dielectric Material | Polyamide | Number of Positions | 7 |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 6 + 1 Ground (PE) |
| 1st Connector Mounting Feature | 6+PE | ||
Product Info
| Spg | 5 | Note | Contacts Not Provided |
| Type | Circular | Gender | PL |
| Series | Eco|mate™ C016 | Features | Cable Clamp |
| Main Purpose | Cable Clamp | Manufacturer | C016 Series |
| Product Type | Connectors | Adapter Series | ECOMATE (C016) |
| Number of Units | 1 | RF Family/Standard | C016 |
| Output Configuration | Free Hanging (In-Line) | Application Specifics | Commercial |
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
Documents & Media
Similar Parts

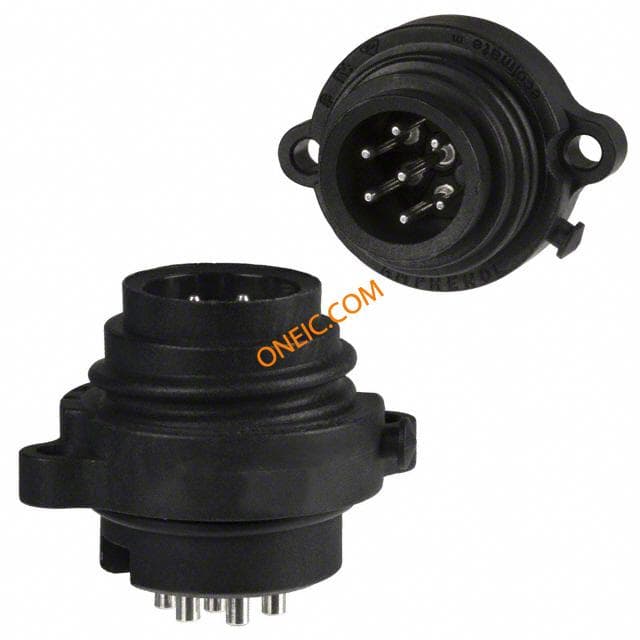

C016 30C006 100 12
amphenol
Conn Circular M 7 POS Solder ST Panel Mount 7 Terminal 1 Port 06P+PE MALE RECEPT. C16-M CONN MALE RCPT 6+PE SOLDER SILVR 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER SILVR CONTACT CIRCULAR, RECEPTACLE, 6+PE WAY, PANEL connector, plastic circ, male panel recept, 6+gnd silver plt cont, solder term, black Connector: circular; socket; male; Series: ECOMATE (C016); PIN:7 Appliance plug 6+PE, C016 30C006 100 12, Amphenol

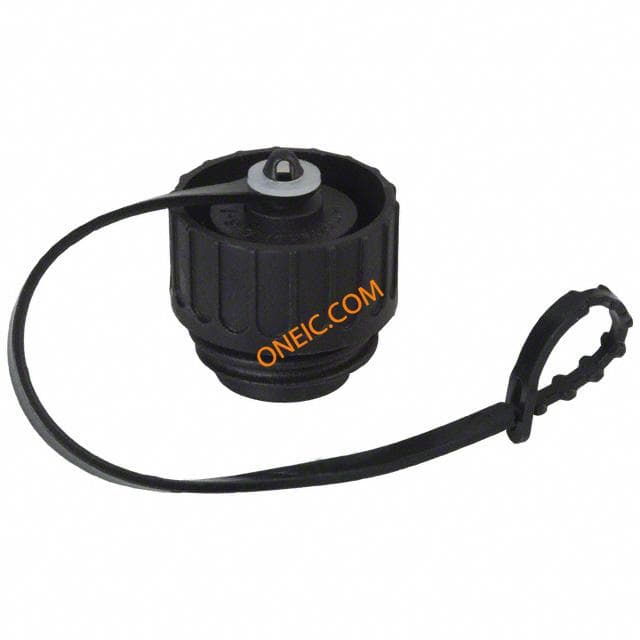

C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖

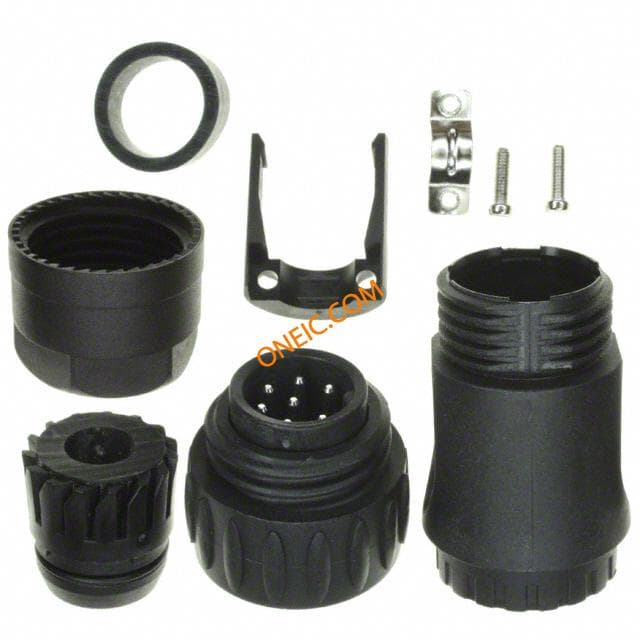

C016 30H006 110 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLK SODR SIL IN ST RELF CONN MALE PLUG 6+PE SILVER BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, ECOMATE, 6+PE CIRCULAR CONNECTOR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 Cable plug 6+PE, C016 30H006 110 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插头

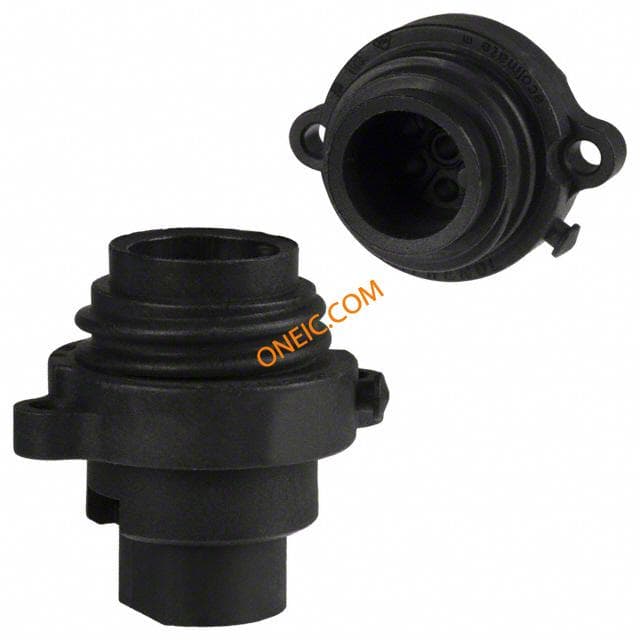

C016 10C006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol

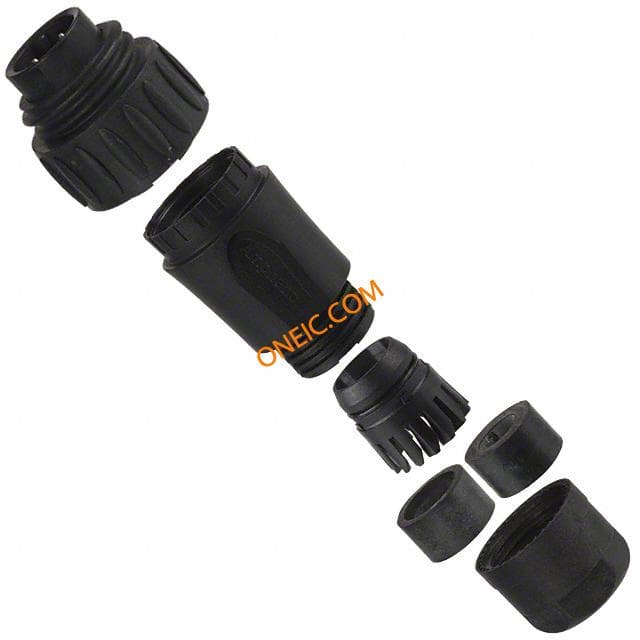

C016 30H006 100 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLK SOLDER SILVR CONTACT CONN MALE PLUG 6+PE SOLDR SILVR 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts CIRCULAR CONNECTOR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blk Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插头

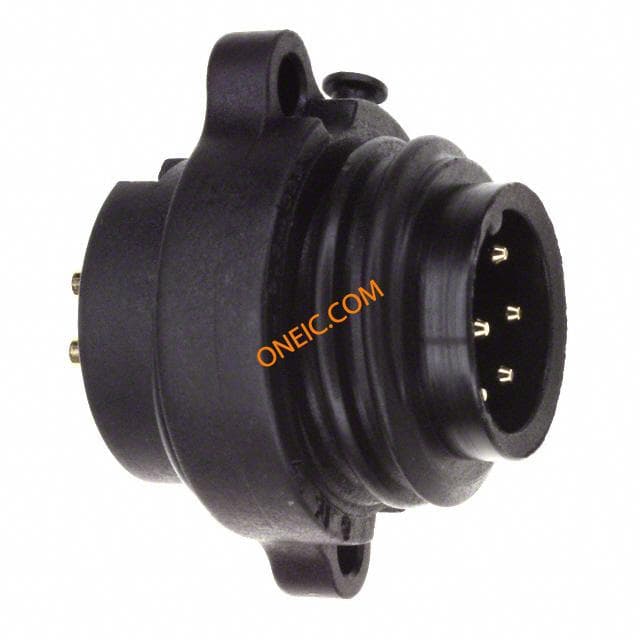

C016 30C006 200 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER GLD CONTACT CONN MALE RCPT 6+PE GOLD BLACK connector;plastic circ;male panel recept;6+gnd gold plt cont;solder term;black PLUG, PANEL, SOLDER, AU, 6P+E WAY connector, plastic circ, male panel recept, 6+gnd gold plt cont, solder term, black

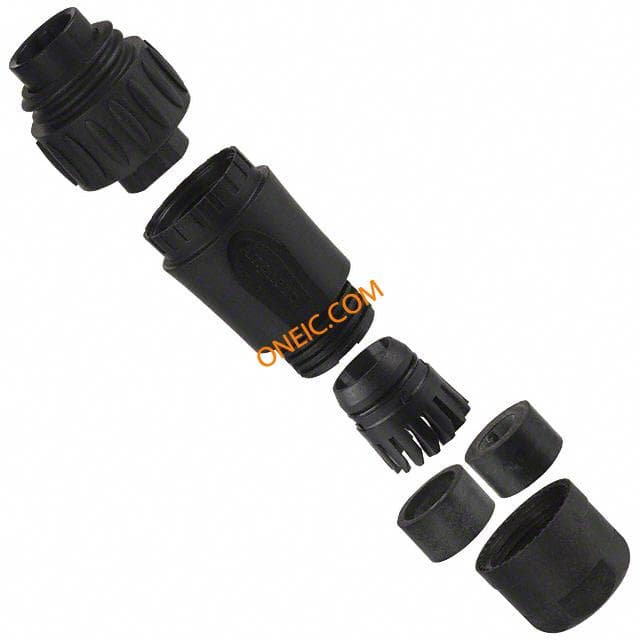

C016 10H006 000 12
