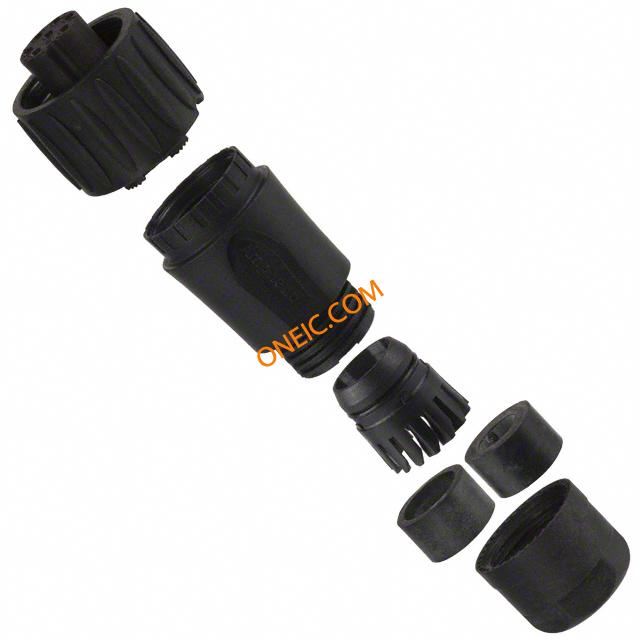

C016 30D006 100 12
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE FEM STRT BLK SODR SILVR CONTACT CONN FMLE PLUG 6+PE SOLDR SILVR 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, RECEPTACLE, 6+PE WAY, CABLE connector, plastic circ, str fem cable conn, 6+gnd silver plt cont, solder term, blk Amphenol Eco-Acoplamiento 系列 6 + PE路 电缆安装 直向 连接器 插座 |
| Category |
Business
| Part # Aliases | 81K1488 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366910 | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 250V | Voltage - Supply | DIN |
| Current Rating (Max) | 12A | ||
Mechanical
| Color | Black | Weight | 0.036 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Weight (g): | 36.00000 | Contact Type | Socket |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 6 mm to 12.5 mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | Plastic |
| Connector Usage | Threaded | Insertion Angle | :- |
| Material - Body | :Nylon (Polyamide) | Contact Material | :- |
| Housing Material | Polyamide | Primary Material | DIN |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 7 | Contact Termination | :Solder |
| Dielectric Material | Polyamide | Number of Positions | 7 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 6 + 1 Ground (PE) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Cable Socket | Gender | Male |
| Series | eco mate | Features | Cable Clamp |
| Manufacturer | C016 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts
C016 30C006 100 12
amphenol
Conn Circular M 7 POS Solder ST Panel Mount 7 Terminal 1 Port 06P+PE MALE RECEPT. C16-M CONN MALE RCPT 6+PE SOLDER SILVR 7 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Circular DIN Connectors 6+PE MALE RECEPT BLK SOLDER SILVR CONTACT CIRCULAR, RECEPTACLE, 6+PE WAY, PANEL connector, plastic circ, male panel recept, 6+gnd silver plt cont, solder term, black Connector: circular; socket; male; Series: ECOMATE (C016); PIN:7 Appliance plug 6+PE, C016 30C006 100 12, Amphenol
C016 00V000 010 12
Amphenol Tuchel
Circular DIN Connectors PROTECTIVE COVER FOR FEM CABLE CONNECTOR COVER FOR CABLE BOX C16-M CONN CAP FOR FEMALE PLUG EcoMateCap for Female Cable Conn Connector Accessories Protection Cover For Female Cable Connector DUST CAP, FOR FEMALE CABLE CONNECTOR connector accessory, protection cover(cap) for eco-mate female cable conn, black Sealing cap for cable socket, C016 00V000 010 12, Amphenol Amphenol Eco-Mate 系列 插头 IP65 防尘盖
C016 30H006 110 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE STRT BLK SODR SIL IN ST RELF CONN MALE PLUG 6+PE SILVER BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts PLUG, FREE, ECOMATE, 6+PE CIRCULAR CONNECTOR, PLUG, 6+PE, CABLE connector, plastic circ, str male cable conn, 6+gnd silver plt cont, solder term, blk Connector: circular; plug; male; Series: ECOMATE (C016); PIN:7 Cable plug 6+PE, C016 30H006 110 12, Amphenol Amphenol Eco-Mate 系列 6 + PE路 电缆安装 直向 连接器 插头
C016 10C006 000 12
Amphenol Tuchel
Circular DIN Connectors 6+PE MALE RECEPT BLACK CRIMP Conn Circular M 7 POS Crimp ST Panel Mount 7 Terminal 1 Port CONN MALE RCPT 6+PE BLACK PLUG, PANEL, CRIMP, 6P+E WAY connector, plastic circ, male panel recept housing, for 6+gnd crimp pin cont, black Connector: circular; socket; w/o terminals; male; PIN:7; IP65,IP67 Appliance plug 6+PE, C016 10C006 000 12, Amphenol

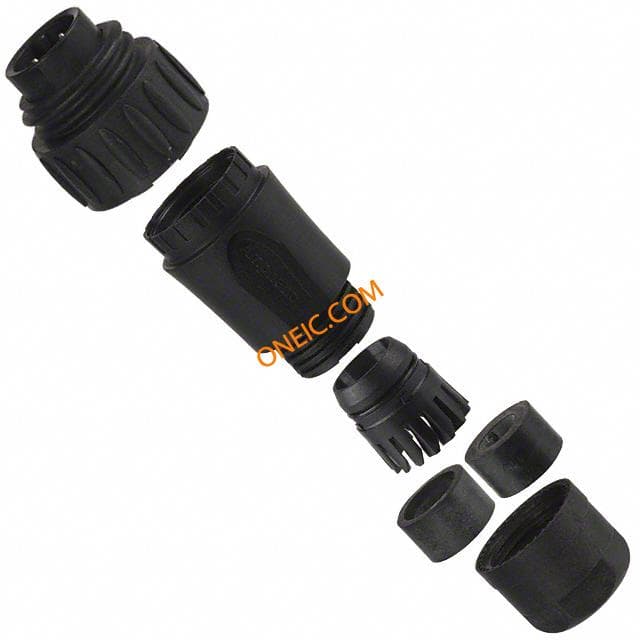

C016 30H006 100 12
