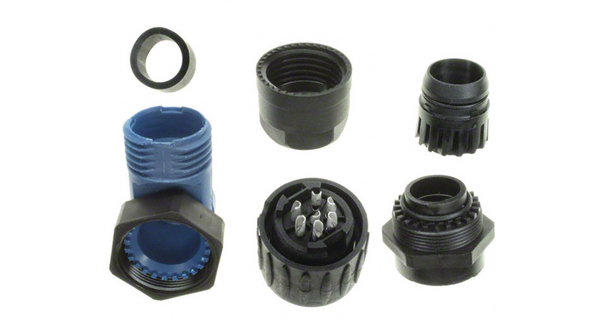

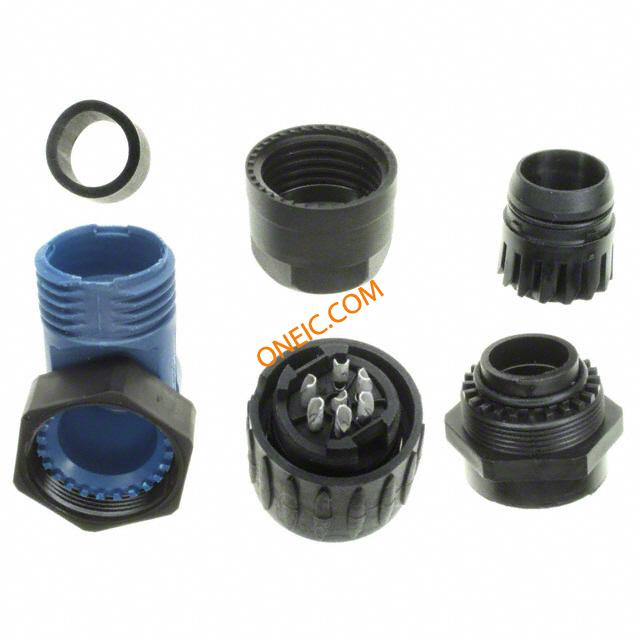

C016 30F006 100 10
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE FEM R/A BLUE SODR SILVR CONTACT CONN FMALE PLUG 6+PE R/A SLV BLU Conn Circular F 7 POS Solder RA Cable Mount 7 Terminal 1 Port SOCKET, FREE, 90DEG, 6P+E WAY connector, plastic circ, rt angle female cable conn, 6+gnd silver plt, solder, blue Connector: circular; plug; female; Series: ECOMATE (C016); PIN:7 Cable socket, 90° 6+PE, C016 30F006 100 10, Amphenol |
| Category |
Business
| Product Category | Circular DIN Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85389099 | Rad Hardened | No |
| Approval Agency | :CSA, GERMANISCHER LLOYDS, SEV, UL, VDE | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 250V | Voltage - Supply | DIN |
| Contact Resistance | :5mohm | Current Rating (Max) | 12A |
| Insulation Resistance | :10Mohm | ||
Mechanical
| Color | Blue | Height | 57 mm |
| Weight | 0.053 | Diameter | 30 mm |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | :20AWG | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Weight (g): | 43.60000 | Contact Form | 6Signal/1Ground |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line), Right Angle |
| Release Force | :30N | Angle of Throw | Right |
| Cable Diameter | 6 mm to 12.5 mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Silver | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Package / Case | :Right Angle |
| Connector Usage | Threaded | Insertion Angle | :- |
| Insertion Force | :15N | Locking Feature | threaded joint, internal thread |
| Material - Body | :Nylon (Polyamide) | Contact Material | :- |
| Housing Material | Polyamide | Length - Overall | 60 mm |
| Package Quantity | 5 | Primary Material | DIN |
| Connector - Cable | plug | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Blue / Black |
| Number of Contacts | 6 | Contact Termination | :Solder |
| Dielectric Material | Polyamide | Number of Positions | 7 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Contact Layout, Typical | 6 + 1 Ground (PE) | Exterior Housing Material | :Polyamide 6.6/PA6 |
| Wire Gauge or Range - mm2 | :0.75mm² | Contact Material - Plating | silver plated |
| 1st Connector Mounting Type | :Cable | 1st Connector Mounting Feature | 6+PE |
| Diameter - Outside, Non-Expanded | :12.5mm | ||
Product Info
| Spg | 5 | Type | Circular |
| Gender | PL | Series | eco mate |
| Features | Cable Clamp | Manufacturer | C016 Series |
| Product Type | Connectors | Adapter Series | ECOMATE (C016) |
| Number of Units | 1 | RF Family/Standard | C016 |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Mating Cycles | :500 |
| NEMA Frame Size | :IP67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 125°C | ||
