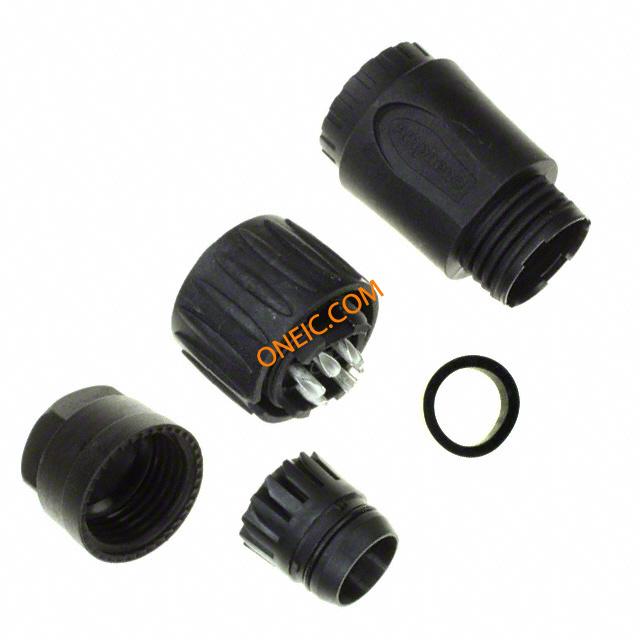

C016 30D006 200 12
| Manufacturer | |
| Description | Circular DIN Connectors 6+PE FEM STRT BLK SODR GLD CONTACT CONN FEMALE PLUG 6+PE GOLD BLACK 7 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts CIRCULAR, PLUG, 6+PE WAY, CABLE connector, plastic circ, str fem cable conn, 6+gnd gold plt cont, solder term, black cableconnfemalesold6+PE,goldpltcts Amphenol Eco-Mate 系列 7路 电缆安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Part # Aliases | 81K1492 | Product Category | Circular DIN Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85369010 | Approval Agency Marking | UL Recognized/CSA/VDE |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 12A |
Mechanical
| Color | Black | Weight | 0.05 |
| Packaging | Bulk | Cable Exit | Yes |
| Wire Gauge | 20 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Cable Diameter | 6-12.5 mm |
| Connector Type | Plug, Female Sockets | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Package / Case | Plastic | Connector Usage | Threaded |
| Insertion Angle | :- | Material - Body | :Nylon 6.6 (Polyamide 6.6) |
| Contact Material | :- | Housing Material | Polyamide |
| Primary Material | DIN | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 7 |
| Contact Termination | :Solder | Dielectric Material | Polyamide |
| Number of Positions | 7 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Contact Layout, Typical | 6 + 1 Ground (PE) |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | Cable Socket | Gender | Male |
| Series | :Ecomate C016 | Features | Cable Clamp |
| Manufacturer | C016 Series | Product Type | Connectors |
| Application Specifics | Commercial | ||
Environmental
| Seal Rating | IP 67 | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Operating Temperature | -40°C ~ 125°C | ||
