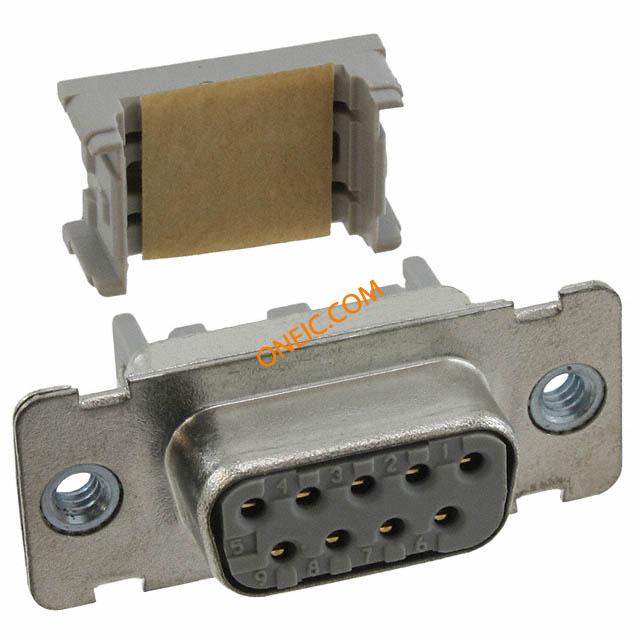

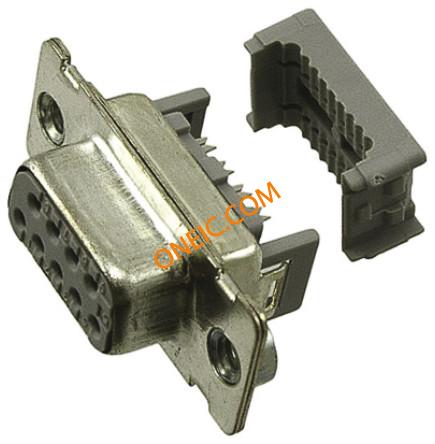

8309-6003
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P OPEN COVER SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 9POS IDC GOLD 3M 8300 Series 2.8mm 9 Way 2 Row Right Angle IDC D-sub Connector Cable Mount CONNECTOR;D SUBMINIATURE;SOCKET VERSION;9 CONTACTS DSUB, SOCKET, IDC, 1.38MM, 9WAY Conn;D-Sub;CableSocket;9Cnt;8300Series;Gray;CopperAlloy;26,28AWG 3M 8300 系列 2.8mm 节距 9 路 电缆安装 IDC D-sub 连接器 09P D-SUB SOCKET OPEN COVER |
| Category |
Business
| Part # Aliases | 04671903114 DE610012655 | Product Category | D-Sub Standard Connectors |
| Standard Package | 100 | Factory Pack Quantity | 200 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| Approval Agency | cUL,UL | RoHS Compliance | Yes |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Range deg/s | :3M - 8300 Series | Current Rating (Max) | 1 A |
Mechanical
| Color | Gray | Pitch | 2.8mm |
| Weight | 1.850 lbs | Packaging | Tray |
| Shell Size | :DE | Wire Gauge | 28-26 |
| Termination | IDC, Ribbon Cable | Contact Type | Signal |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Angle of Throw | Straight | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Housing Finish | Tin | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Metal |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Primary Material | D-Subminiature | Termination Style | IDC |
| Number of Contacts | 9 | Contact Termination | :IDC / IDT |
| Dielectric Material | PBT | Number of Positions | 9 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Type | CableSocket | Gender | Female |
| Series | 8300 | Features | Feed Through |
| Manufacturer | 8300 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
