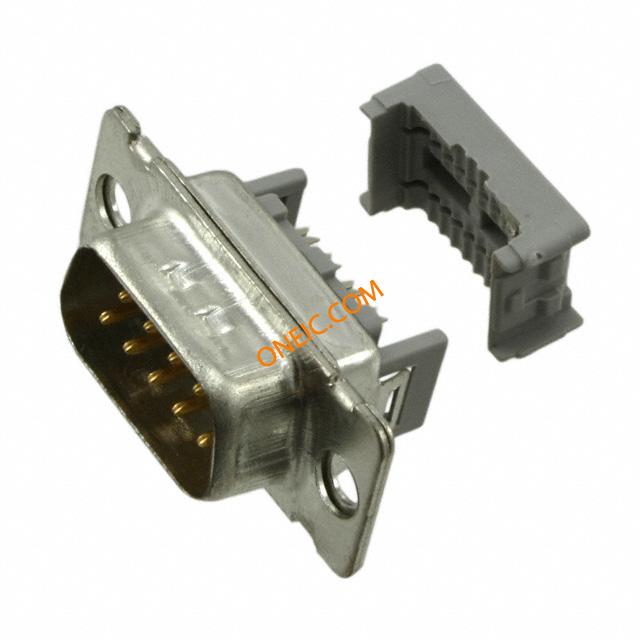

8209-7000
| Manufacturer | |
| Description | D-Sub Standard Connectors D-SUB/PLUG/9POS Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD |
| Category |
Business
| Part # Aliases | 05111165731 80610185714 | Product Category | D-Sub Standard Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | In Transition | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Pitch | 1.384 mm |
| Packaging | Tray | Insulation | Insulated |
| Termination | IDC, Ribbon Cable | Contact Type | Signal |
| Mounting Type | Straight | Shell Plating | Tin |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Housing Material | Polyester, Glass Filled |
| Number of Contacts | 9 | Insulation Material | Polyester, Glass Filled |
| Number of Positions | 9 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Gender | Male | Features | Grounding Indents |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
