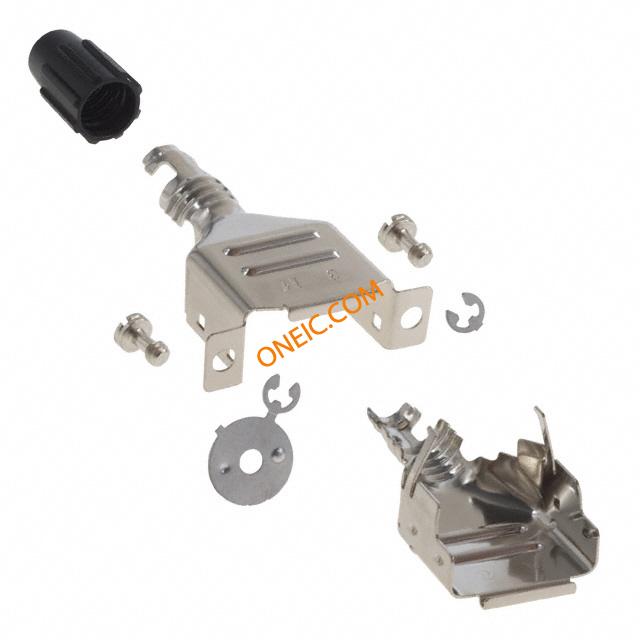

3357-9209
| Manufacturer | |
| Description | D-Sub Backshells 9P EMI JUNC SHELL METAL EMI Junction Shell, Metal, Center-mount BACKSHELL 9 POS 9 way IDC metal D backshell Connector Accessories D-Sub Junction Shell 9 POS Steel BACKSHELL, D, EMI, METAL, 9WAY Hood;D-Sub;9Pos;Straight;Series3357;Metal;0.120In.CblDia;EMI/ESDProtection Metal housing 9P, 3357-9209, 3M 3M 9 路 直 银色 钢 D-sub 连接器底壳 , 带应力消除 09P D-SUB CABLE SIZE 0.28 |
| Category |
Business
| Part # Aliases | 05400737177 80610189633 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Standards | RoHSCompliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Mechanical
| Color | Silver | Depth | 41.9 mm |
| Height | 9.98 mm | Weight | 2.700 lbs |
| Plating | Nickel | Material | Metal, Steel |
| Shielding | Shielded | Cable Exit | 180° |
| Cable Type | Round | Shell Size | :DE |
| Thread Size | 4-40UNC | Nut Material | GlassFilledPolyester(PBT) |
| Mounting Type | Straight | Shell Plating | Nickel |
| Cable Diameter | 7 mm | Cable End Type | Straight |
| Shell Material | Steel | Material - Body | :Steel |
| Housing Material | Steel | Length - Overall | 30 mm |
| Color - Connectors | :Silver | Insulation Diameter | 0.12in. |
| Number of Positions | 9 | Number of Cable Pairs | 1 |
| Backshell Material, Plating | Metal | ||
Product Info
| Type | EMI/RFI Shielded Backshell | Series | 3357 |
| DELETED | Compliant | Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Strain Relief | Manufacturer | Series3357 |
| Accessory Type | Two Piece Backshell | ||
