点击放大查看

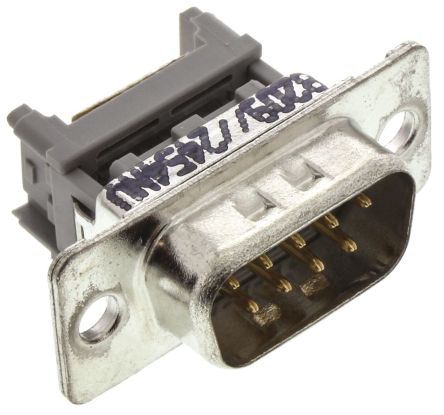

8209-6009
| Manufacturer | |
| Description | D-Sub Standard Connectors 9 CON CLSD CVR RIVET CRIMP 09P D-SUB PLUG Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD 9 way IDC class 2 metal shell D plug PLUG, DSUB, IDC, CRIMP, 9WAY IDC,DCABLEPLUG9WAY D-sub plug 9P, 8209-6009, 3M 3M 8200 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插头, 钢外壳 |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Part # Aliases | 05111163560 DE610012135 | Product Category | D-Sub Standard Connectors |
| Standard Package | 200 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Approval Agency | UL E68080 | ||
Electrical
| Range deg/s | :3M - 8200 Series | Voltage Rating | 1000V |
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Gray | Depth | 12.4mm |
| Pitch | 1.27mm | Width | 16.5mm |
| Length | 31.2mm | Weight | 0.15 |
| Packaging | Bulk | Cable Exit | NO |
| Insulation | Insulated | Shell Size | 1 |
| Wire Gauge | 28 TO 26 | Orientation | STRAIGHT |
| Shield Type | NO | Termination | IDC, Ribbon Cable |
| Contact Type | MALE | Pitch - Post | 1.27mm |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Material - Body | :Steel |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Size / Dimension | 31.2 x 16.5 x 12.4mm | Termination Style | Crimp |
| Number of Contacts | 09 | Contact Termination | :IDC / IDT |
| Insulation Material | Glass Filled Polyester | Number of Positions | 9 |
| Plating - Thickness | 1.0 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Contact Material - Plating | GOLD |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Male | Series | 8209 |
| Features | Feed Through, Grounding Indents | Matchcode | 82096009 |
| Standard Leadtime | 6 weeks | ||
Environmental
| Temperature Range | - 55 C to + 105 C | Operating Temperature | -55 TO 105°C |
