点击放大查看

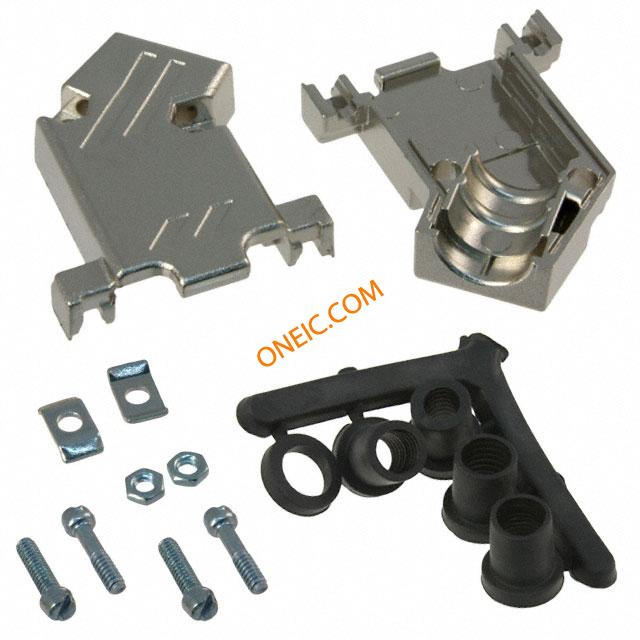

3357-6509-1C
| Manufacturer | |
| Description | Connector Accessories D-Sub Junction Shell Acrylonitrile Butadiene-Styrene D-Sub Backshells JUN.SHELL/D-SUB/9POS 09P SHELL METALLISED ROUND CAB 60° EMI Junction Shell, Metalized Plastic, Corner-mount CONN D-SUB SHELL 9POS PLASTIC IDC 9W D SHELL BACKSHELL, D, SHIELDED, 9WAY IDC9WDSHELL D-Sub metallized hood 9P, 3357-6509-1C, 3M 3M 9 路 斜角 ABS D-sub 连接器底壳 |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Part # Aliases | 05111164515 80400058279 | Product Category | D-Sub Backshells |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Approval Agency | UL 94HB | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Mechanical
| Color | Silver | Depth | :16.3mm |
| Width | :31.2mm | Length | :37.3mm |
| Weight | 3 lbs | Plating | Nickel over Copper |
| Material | ABS | Shielding | Shielded |
| Cable Exit | NO | Cable Type | Round |
| Shell Size | :DE | Orientation | STRAIGHT |
| Shield Type | NO | Contact Type | MALE |
| Mounting Type | Angled | Shell Plating | Nickel over Copper |
| Cable Diameter | 8.13 mm | Cable End Type | 60 deg |
| Number of Rows | 2 | Screw Material | :Steel |
| Shell Material | Acrylonitrile Butadiene Styrene (ABS) | Material - Body | :ABS (Acrylonitrile Butadiene Styrene) |
| Housing Material | ZINC | Color - Connectors | :Nickel |
| Number of Contacts | 09 | Number of Positions | 9 |
| Number of Cable Pairs | 1 | Screw Material - Plating | :Zinc |
| Contact Material - Plating | NICKEL | Diameter - Outside, Non-Expanded | :8.9mm |
Product Info
| Type | Shell | Series | 3357 |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Strain Relief |
| Matchcode | 335765091C | CAD Drawing | 3D CAD Model |
| Accessory Type | Two Piece Backshell | Standard Leadtime | 6 weeks |
| RF Family/Standard | 3357 | ||
Environmental
| Operating Temperature | -0 TO 75°C | ||
