点击放大查看
3485-2100F
| Manufacturer | |
| Description | D-Sub Backshells 9P PLSTC JUNC SHELL FOR FLAT CABLE Junction Shell for Flat Cable, Plastic BACKSHELL, 9PIN PLASTIC CABLE 9 way IDC flat cable plastic D backshell BACKSHELL, D, PLASTIC, 9WAY 3M(TM)DSUBJUNCTIONSHELL,3485-2100F 3M 9 路 直 聚碳酸酯 (PBT) D-sub 连接器底壳 |
| Category |
Business
| Part # Aliases | 05400736332 80610182158 | Product Category | D-Sub Backshells |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :CSA, UL |
| RoHS Compliance | Yes | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Gray | Weight | 4 lbs |
| Material | Polybutylene Terephthalate, Glass Filled | Shielding | Unshielded |
| Cable Exit | 180° | Cable Type | Flat |
| Shell Size | :DE | Mounting Type | Straight |
| Shell Plating | Plastic | Cable End Type | Straight |
| Shell Material | Polyester, Glass Filled | Material - Body | :Glass Reinforced Polyester |
| Housing Material | PBT | Color - Connectors | :Grey |
| Number of Positions | 9 | Number of Cable Pairs | 1 |
Product Info
| Type | Two Piece Backshell | Series | 3485 |
| Hardware | Assembly Hardware | Accessory Type | Two Piece Backshell |
Documents & Media
Similar Parts
8309-7003
3M Electronic Solutions Division
D-Sub Standard Connectors 9POS,CLOSED COVER D SUB SOCKET Socket Connector CONN D-SUB RCPT 9POS IDC GOLD
8209-6000
3M Electronic Solutions Division
D-Sub Standard Connectors 9P OPEN COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD D-Sub Connector; Plug; Copper Alloy; Gray; Glass Filled Polyester; Steel; Tin Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port PLUG, D, IDC, 9 WAY D-SubConnector;Plug;CopperAlloy;Gray;GlassFilledPolyester;Steel;Tin 3M 8200 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插头, 聚碳酸酯 (PBT)外壳
8309-6003
3M Electronic Solutions Division
D-Sub Standard Connectors 9P OPEN COVER SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 9POS IDC GOLD 3M 8300 Series 2.8mm 9 Way 2 Row Right Angle IDC D-sub Connector Cable Mount CONNECTOR;D SUBMINIATURE;SOCKET VERSION;9 CONTACTS DSUB, SOCKET, IDC, 1.38MM, 9WAY Conn;D-Sub;CableSocket;9Cnt;8300Series;Gray;CopperAlloy;26,28AWG 3M 8300 系列 2.8mm 节距 9 路 电缆安装 IDC D-sub 连接器 09P D-SUB SOCKET OPEN COVER
8209-6003
3M Electronic Solutions Division
D-Sub Standard Connectors 9P OPEN COVER PLUG LOW PROFILE 09P D-SUB PLUG RAER MOUNT Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD D Sub Plug 8200 Series IDC 9 way D-Sub Connector; Plug; Copper Alloy; Gray; Steel; Tin; 9; 8200 Series Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port DSUB, PLUG, IDC, 1.38MM, 9WAY Conn;D-Sub;CablePlug;9Cnt;8200Series;Gray;CopperAlloy;26,28AWG 3M 8200 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插头, 钢外壳
8209-7000
3M Electronic Solutions Division
D-Sub Standard Connectors D-SUB/PLUG/9POS Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD
8209-6009
3M Electronic Solutions Division
D-Sub Standard Connectors 9 CON CLSD CVR RIVET CRIMP 09P D-SUB PLUG Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD 9 way IDC class 2 metal shell D plug PLUG, DSUB, IDC, CRIMP, 9WAY IDC,DCABLEPLUG9WAY D-sub plug 9P, 8209-6009, 3M 3M 8200 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插头, 钢外壳
8309-7000
3M Electronic Solutions Division
D-Sub Standard Connectors 9P CLOSD COVR SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 9POS IDC GOLD Conn D-Subminiature SKT 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port
8209-7003
3m interconnect solutions
Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors 9P D-SUB PLUG CONN LO-PRO CLSD CVR Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD
8309-6004
3m interconnect solutions
Conn D-Subminiature SKT 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port CONN D-SUB RCPT 9POS IDC GOLD
8309-6000
3m interconnect solutions
Conn D-Subminiature SKT 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors 9P OPEN COVER SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 9POS IDC GOLD 3M 8300 Series 2.8mm 9 Way 2 Row Right Angle IDC D-sub Connector Cable Mount D-Sub Connector; Socket; IDC; 26 and 28 AWG; Copper Alloy; Gray; Gold CONNECTOR, D, SUB, FEMALE, 9WAY D-SubConnector;Socket;IDC;26and28AWG;CopperAlloy;Gray;Gold 3M 8300 系列 2.8mm 节距 9 路 电缆安装 IDC D-sub 连接器

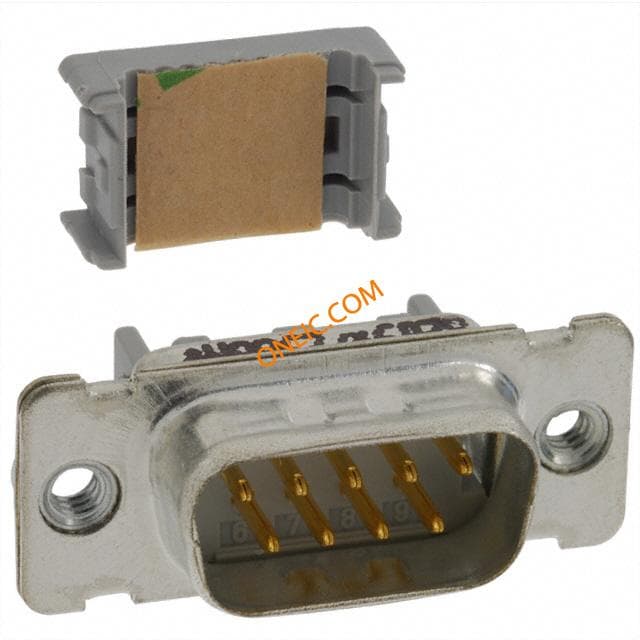

8209-6004
