8309-7009
| Manufacturer | |
| Description | Conn D-Subminiature SKT 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors DELTA 9 F N Socket Connector D SUB PLUG 9CONT CLSD CVR RVT CR DSUB, SOCKET, IDC, 1.38MM, 9WAY |
| Category |
Business
| Part # Aliases | 04671903116 DE610012671 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
| RoHS Compliance | Yes | ||
Electrical
| Range deg/s | :3M - 8300 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Pitch | 2.76 mm |
| Weight | 0.857 | Packaging | Bulk |
| Shell Size | :DE | Termination | IDT |
| Contact Type | Signal | Mounting Type | Cable Mount |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Connector Style | D-Sub |
| Material - Body | :Metal | Housing Material | Polyester, Glass Filled |
| Termination Style | IDC | Number of Contacts | :9 |
| Contact Termination | :IDC / IDT | Number of Positions | 9 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Type | D-Subminiature | Gender | SKT |
| Series | 8300 | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
8209-6000
3M Electronic Solutions Division
D-Sub Standard Connectors 9P OPEN COVER PLUG LOW PROFILE Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD D-Sub Connector; Plug; Copper Alloy; Gray; Glass Filled Polyester; Steel; Tin Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port PLUG, D, IDC, 9 WAY D-SubConnector;Plug;CopperAlloy;Gray;GlassFilledPolyester;Steel;Tin 3M 8200 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插头, 聚碳酸酯 (PBT)外壳
8209-6003
3M Electronic Solutions Division
D-Sub Standard Connectors 9P OPEN COVER PLUG LOW PROFILE 09P D-SUB PLUG RAER MOUNT Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD D Sub Plug 8200 Series IDC 9 way D-Sub Connector; Plug; Copper Alloy; Gray; Steel; Tin; 9; 8200 Series Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port DSUB, PLUG, IDC, 1.38MM, 9WAY Conn;D-Sub;CablePlug;9Cnt;8200Series;Gray;CopperAlloy;26,28AWG 3M 8200 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插头, 钢外壳
8209-7000
3M Electronic Solutions Division
D-Sub Standard Connectors D-SUB/PLUG/9POS Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD
8209-6009
3M Electronic Solutions Division
D-Sub Standard Connectors 9 CON CLSD CVR RIVET CRIMP 09P D-SUB PLUG Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD 9 way IDC class 2 metal shell D plug PLUG, DSUB, IDC, CRIMP, 9WAY IDC,DCABLEPLUG9WAY D-sub plug 9P, 8209-6009, 3M 3M 8200 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插头, 钢外壳

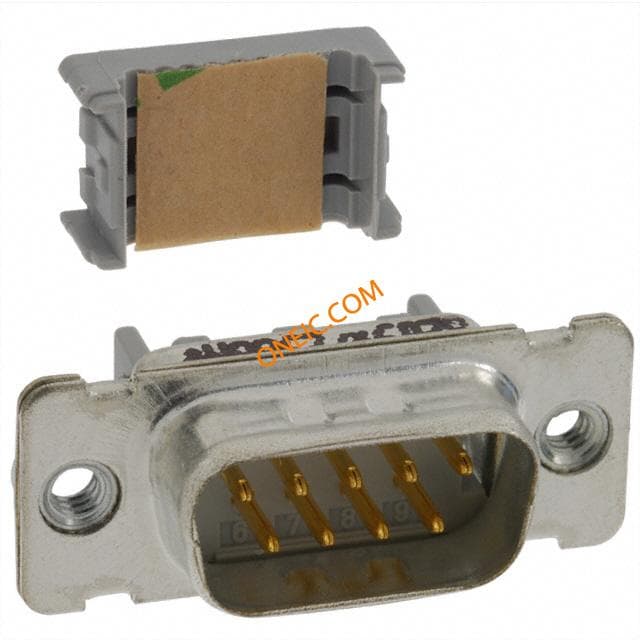

8209-8003
