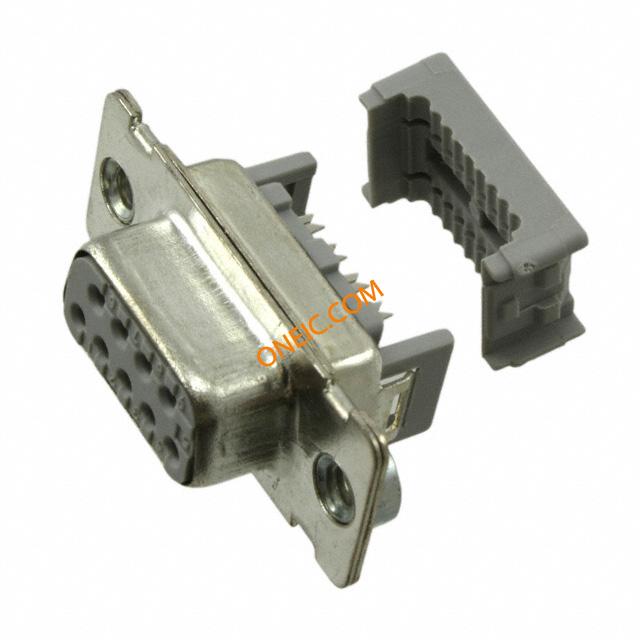

8309-8003
| Manufacturer | |
| Description | D-Sub Standard Connectors D-SUB RCPT 9POS W/INSERT CONN D-SUB RCPT 9POS IDC GOLD |
| Category |
Business
| Part # Aliases | 04671903118 DE610012697 | Product Category | D-Sub Standard Connectors |
| Standard Package | 200 | Factory Pack Quantity | 200 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Weight | 3.550 lbs |
| Packaging | Bulk | Insulation | Insulated |
| Wire Gauge | 28-26 | Termination | IDC, Ribbon Cable |
| Contact Type | Signal | Mounting Type | Straight |
| Shell Plating | Tin | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Mounting Style | Wire | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Termination Style | IDC | Number of Contacts | 9 |
| Insulation Material | Polyester, Glass Filled | Number of Positions | 9 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Gender | Female | Series | 8300 |
| Features | Feed Through | ||
Environmental
| Operating Temperature | - 55 C to + 105 C | ||
