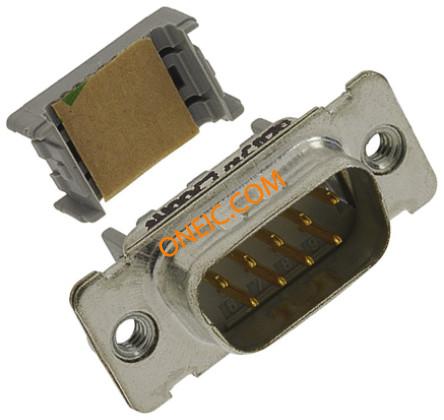

8209-6003
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P OPEN COVER PLUG LOW PROFILE 09P D-SUB PLUG RAER MOUNT Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD D Sub Plug 8200 Series IDC 9 way D-Sub Connector; Plug; Copper Alloy; Gray; Steel; Tin; 9; 8200 Series Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port DSUB, PLUG, IDC, 1.38MM, 9WAY Conn;D-Sub;CablePlug;9Cnt;8200Series;Gray;CopperAlloy;26,28AWG 3M 8200 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插头, 钢外壳 |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Part # Aliases | 05113843269 DE610012309 | Product Category | D-Sub Standard Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Approval Agency | UL E68080 | RoHS Compliance | Yes |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Range deg/s | :3M - 8200 Series | Voltage Rating | 1000V |
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Depth | 12.4mm |
| Pitch | 2.76mm | Width | 16.5mm |
| Length | 31.2mm | Weight | 2 lbs |
| Packaging | Tray | Cable Exit | NO |
| Shell Size | :DE | Wire Gauge | 28 TO 26 |
| Orientation | STRAIGHT | Shield Type | NO |
| Termination | IDC, Ribbon Cable | Contact Type | MALE |
| Pitch - Post | 1.27mm | Mounting Type | Straight |
| Shell Plating | Tin | Angle of Throw | Straight |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Housing Finish | Tin |
| Mounting Style | Wire | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Material - Body | :Metal | Contact Material | Copper Alloy |
| Housing Material | Polyester, Glass Filled | Primary Material | D-Subminiature |
| Size / Dimension | 31.2 x 16.5 x 12.4mm | Number of Contacts | 9 |
| Contact Termination | :IDC / IDT | Dielectric Material | PBT |
| Number of Positions | 9 | Plating - Thickness | 1.0 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Contact Material - Plating | GOLD | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Type | CablePlug | Gender | Male |
| Series | 8200 | Features | Feed Through, Grounding Indents |
| Matchcode | 82096003 | Manufacturer | 8200 |
| Standard Leadtime | 7 weeks | ||
Environmental
| Operating Temperature | -55 TO 105°C | ||
