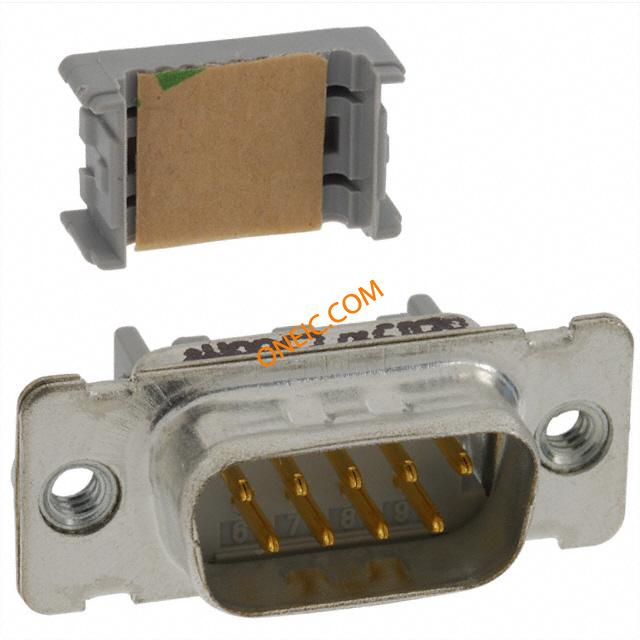

8209-6004
| Manufacturer | |
| Description | Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors 9 CON OPN CVR M3 Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD PLUG, DSUB, IDC, 9WAY |
| Category |
Business
| Part # Aliases | DE610012366 | Product Category | D-Sub Standard Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366990 |
| RoHS Compliance | Yes | ||
Electrical
| Range deg/s | :3M - 8200 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Pitch | 2.76 mm |
| Weight | 0.067 | Packaging | Bulk |
| Shell Size | :DE | Termination | IDT |
| Contact Type | Signal | Mounting Type | Cable Mount |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (M3) | Number of Rows | 2 |
| Connector Style | D-Sub | Material - Body | :Steel |
| Housing Material | Polyester, Glass Filled | Number of Contacts | :9 |
| Contact Termination | :IDC / IDT | Number of Positions | 9 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Type | D-Subminiature | Gender | PIN |
| Series | :8200 | Features | Feed Through, Grounding Indents |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
