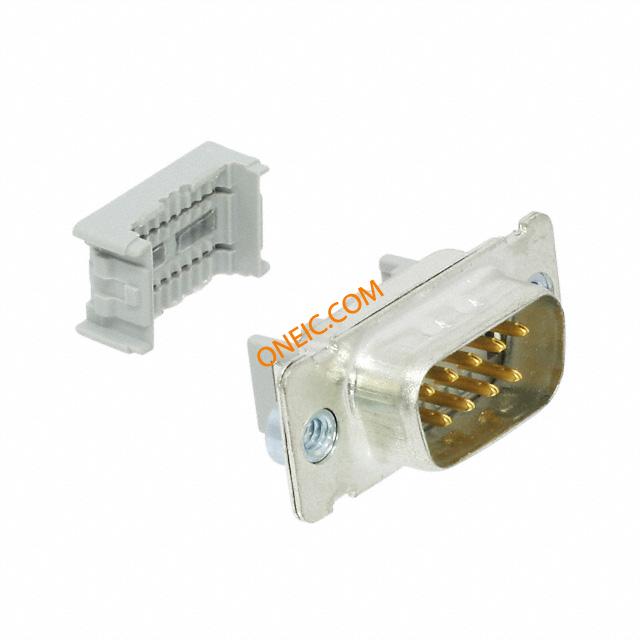

8209-7003
| Manufacturer | |
| Description | Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors 9P D-SUB PLUG CONN LO-PRO CLSD CVR Low profile Plug Connector CONN DSUB PLUG 9POS IDC GOLD |
| Category |
Business
| Part # Aliases | 05111165732 80610185722 | Product Category | D-Sub Standard Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Pitch | 2.76 mm |
| Packaging | Bulk | Insulation | Insulated |
| Wire Gauge | 28-26 | Termination | IDT |
| Contact Type | Signal | Mounting Type | Cable Mount |
| Shell Plating | Tin | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Copper Alloy | Housing Material | Polyester, Glass Filled |
| Number of Contacts | 9 | Insulation Material | Polyester, Glass Filled |
| Number of Positions | 9 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Type | D-Subminiature | Gender | PIN |
| Series | 8200 | Features | Grounding Indents |
Environmental
| Operating Temperature | - 55 C to + 105 C | ||
