794958-3
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | 208567 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | ||
Electrical
| Voltage - Supply | 600 | Current Rating (Max) | 9 |
| Connector - Voltage Input | 单梁 | ||
Mechanical
| Plating | Pre-Tin | Material | Phosphor Bronze |
| Packaging | Tape & Reel (TR) | Cable Type | 分离式导线 |
| Wire Gauge | 22-26 AWG | Termination | Crimp |
| Contact Type | Signal | Pin or Socket | Socket |
| Connector Type | Connector Headers and PCB Receptacles | Contact Finish | Pre-Tin |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Package Quantity | Strip | Termination Style | 插座 |
| Fits Terminal Size | No | Contact Termination | Crimp |
| Insulation Diameter | 1.20 â 1.75 [0.047 â 0.069] | Contact Finish - Mating | 预镀锡 |
| Contact Finish Thickness | 2.54 µm [ 100 µin ] | Wire Gauge or Range - mm2 | 0.12-0.40² [26-22] |
Product Info
| Gender | SKT | Product Type | Contact |
| Application Specifics | Power | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] |
Similar Parts
1586106-3
te connectivity / amp
$1.0676
Details
1586019-6
te connectivity / amp
$0.6052
Details
1586019-8
te connectivity / amp
$1.1152
Details
1-1586019-0
te connectivity / amp
$0.8160
Details
1-794954-2
te connectivity / amp
$0.9384
Details
794954-6
te connectivity / amp
$0.6678
Details
1-1586019-6
te connectivity / amp
$1.0472
Details
2-1586019-0
te connectivity / amp
$1.4280
Details
794954-2
te connectivity / amp
$0.6487
Details
794954-8
te connectivity / amp
$1.0556
Details

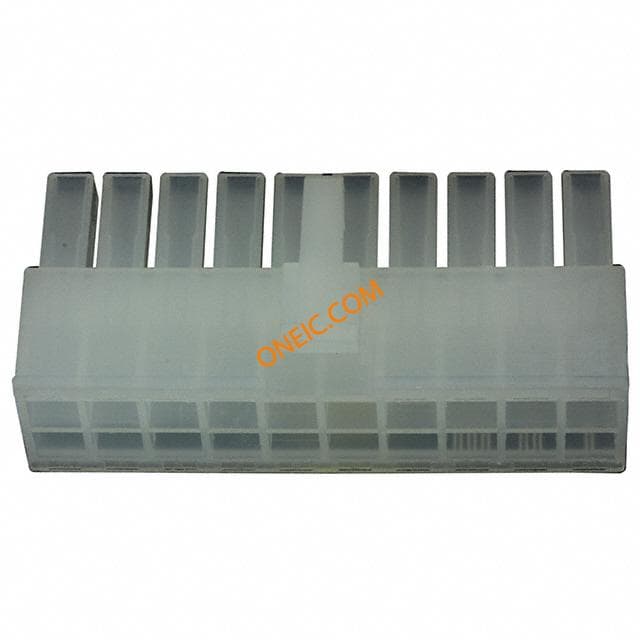

2-794954-2
te connectivity / amp
$1.9364
Details
1-1586019-2
te connectivity / amp
$1.0744
Details

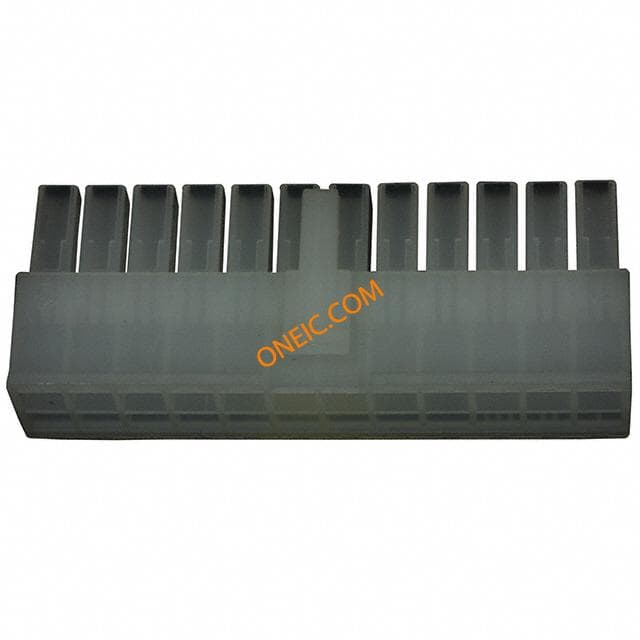

2-794954-4
te connectivity / amp
$2.3392
Details

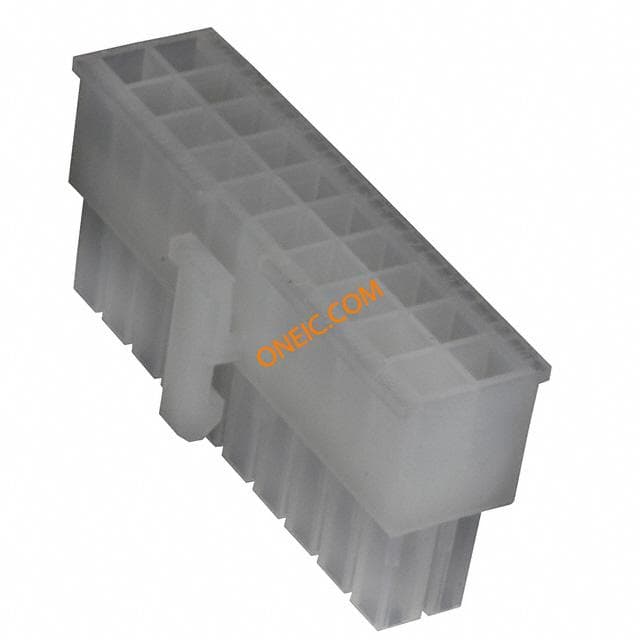

2-794954-0
te connectivity / amp
$1.3940
Details
1586027-5
te connectivity / amp
$1.3677
Details
1586019-4
te connectivity / amp
$0.3850
Details

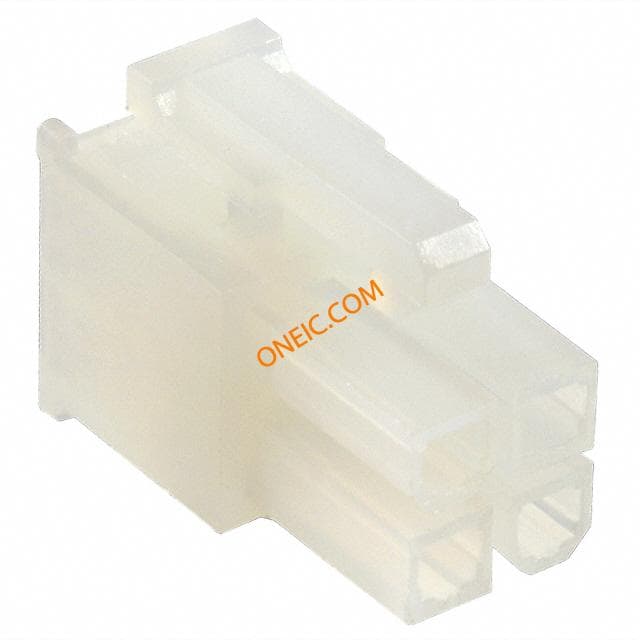

794954-4
