2-1586019-2
| Manufacturer | |
| Description | Conn Housing RCP 22 POS 4.2mm Crimp ST Pin & Socket Connectors RCPT HSG 22POS 4.2MM VAL-U-LOK Series Connector System CONN RCPT HOUSING 22POS 4.2MM Conn Housing RCP 22 POS 4.2mm Crimp ST Product Highlights:4.20 mm CenterlineConnectorApplies To WireWire-to-Board/Wire-to-WireHousingSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE,HOUSING,VAL-U-LOK,22POS,DUALROW,UL94V-0 22P RCPT VAL-U-LOK V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | 208567 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Approval Agency Marking | 否 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 600 | Frequency - Center | 带有 |
| Current Rating (Max) | 9 A | Connector - Voltage Input | Crimp |
Mechanical
| Color | Natural | Pitch | 4.2 mm |
| Width | 20 mm [ .787 in ] | Height | 11.8 mm [ .464 in ] |
| Length | 47.4 mm | Sealed | Not Sealed |
| Material | Nylon | Packaging | Bulk |
| Body Color | 白色 | Cable Type | 分离式导线 |
| Row Spacing | 0.165" (4.20mm) | Contact Form | Female Socket |
| Contact Type | Female Socket | Lead Spacing | 0.165" (4.20mm) |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | Without | Fastening Type | Latch Lock |
| Number of Rows | 2 | Package / Case | Receptacle |
| Insertion Force | 15 | Housing Material | Nylon |
| Package Quantity | 500 | Primary Material | InterconnectSystem |
| Termination Style | 插座 | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 22 | Contact Termination | Crimp |
| Insulation Diameter | 1.2 – 3.1 mm [ .047 – .122 in ] | Number of Positions | 22 |
| Contact Layout, Typical | 矩阵 | 1st Connector Mounting Type | Panel |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | VAL-U-LOK, AMP |
| Manufacturer | VAL-U-LOK | Product Type | Receptacle Housings |
| Number of Circuits | 22 | Selectively Loaded | No |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] |
Similar Parts
1586315-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG 30GOLD Pin & Socket Connectors SOCKET 22-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocket4.20 mm CenterlineWire Range = 0.20-0.80² [24-18] mm [AWG]Phosphor Bronze MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK SKT PHBZ AU 24-18 LP
794958-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 26-22AWG BRASS TIN Crimp skt contact 26-22 awg tin Pin & Socket Connectors SOCKET 26-22 Reel of 5000 794958-1 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, CRIMP, SOCKET, 26-22AWG Contact,Socket,VAL-U-LOK,22-26AWG,Brass VAL-U-LOK Series 22-26 AWG Insulation Crimp Strain Relief Socket Contact TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡镀镍触点 VAL-U-LOK SKT BR SN 22-26AWG
2-1586043-2
te connectivity / amp

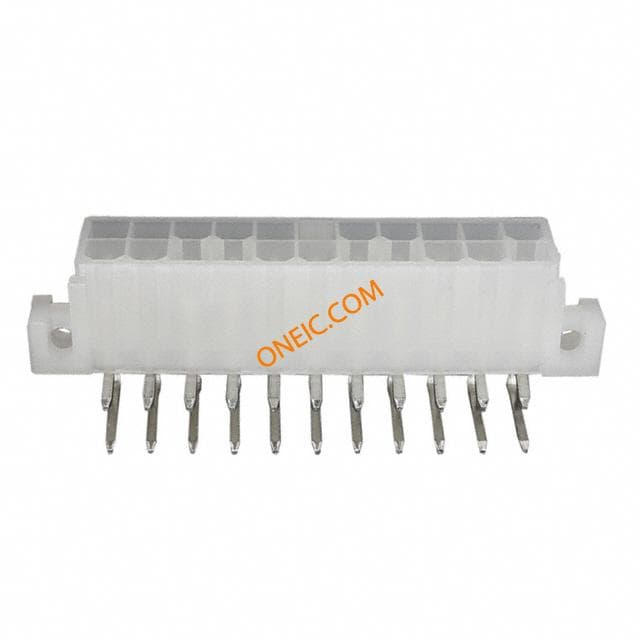

Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 22POS R/A W/FLANGE Pin & Socket Connectors RA HDR SCREW MNT 22P Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 22UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,22POS,DUALROW,UL94V-2,SCREWMOUNT 22P VAL-U-LOK R/A HDR SCRMT V2
2-1586000-2
te connectivity / amp
Conn Housing PL 22 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN PLUG 22POS FREE HANGING Pin & Socket Connectors FREE HANGING PLUG 22 Conn Housing PL 22 POS 4.2mm Crimp ST Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG,FREEHANGING,VAL-U-LOK,22POS,DUALROW,UL94V-2 22P FH PLUG VAL-U-LOK V2
2-1586018-2
te connectivity / amp
Conn Housing PL 22 POS 4.2mm Crimp ST Panel Mount VAL-U-LOK Series Connector System CONN PLUG HOUSING 22POS PANEL MT Pin & Socket Connectors 22P PM PLUG V0 Conn Housing PL 22 POS 4.2mm Crimp ST Panel Mount Product Highlights:HousingPlug4.20 mm CenterlineNumber of Circuits = 22Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP PLUG,PANELMOUNT,VAL-U-LOK,22POS,DUALROW,UL94V-0 22P PM PLUG VAL-U-LOK V0
794956-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKT 18-22AWG PHOS BRZ TIN Contact female 0.2-0.8mm² Val-u-Lok 794956-3 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,TINPLATING VAL-U-LOK Series 18-24 AWG Insulation Crimp Strain Relief Socket Contact TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT PHBZ SN 22-18AWG
794958-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKT 22-26AWG PHOS BRZ TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,TINPLATING VAL-U-LOK Series 22-26 AWG Insulation Crimp Strain Relief Socket Contact VAL-U-LOK SKT PHBZ SN 22-26AWG
794956-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 18-22AWG BRASS TIN Crimp skt contact 22-18 awg tin Pin & Socket Connectors SOCKET 22-18AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, FEMALE, 22-18AWG CONTACT, CRIMP, SOCKET, 22-18AWG, REEL Contact,Socket,VAL-U-LOK,24-18AWG,Brass TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 22-18AWG
1586315-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG TIN 4.2 PE series 22-18 awg contact socket Pin & Socket Connectors SOCKET 22-18AWG BRASS-TIN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 18AWG TO 22AWG, CRIMP 4.2SOCKET,BRASS-TIN22-18 Contact; female; 0.2÷0.8mm2; 18÷24AWG; VAL-U-LOK; tinned; crimped Crimp socket Female 22...18 AWG, 1586315-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 24-18 LP
794956-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 18-22AWG BRASS GOLD Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 22-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING VAL-U-LOK SKT BR AU 22-18AWG
1586055-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount CONN SOCKET 16AWG BRASS TIN Pin & Socket Connectors VAL-U-LOK SKT BR SN Contact SKT Crimp ST Cable Mount Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 16AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,16AWG,TINPLATING 16 AWG Socket Crimp VAL-U-LOK Connector Contact VAL-U-LOK SKT BR SN 16AWG
2-1586037-2
te connectivity / amp
Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 22POS VERT W/O PEGS TE Connectivity PE Series 4.2mm Pitch 22 Way Straight Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors VERT HDR NO PEGS 22P Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 22UL 94V-2Number of Rows = DualVertical Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,22POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 22路 直 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 22P VERT HDR VAL-U-LOK V2
1586317-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 22-26AWG 30GOLD Pin & Socket Connectors SOCKET 26-22 BULK 1586317-2 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,GOLDPLATING 1586317 Series 22-26 AWG Gold Socket VAL-U-LOK Connector System VAL-U-LOK SKT BR AU 26-22 LP
2-1586041-2
te connectivity / amp
Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 22POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 22P Conn Power HDR 22 POS 4.2mm Solder RA Thru-Hole 22 Terminal 1 Port Product Highlights:Pin HeaderNumber of Circuits = 22UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,22POS,DUALROW,UL94V-2,W/OPEGS 22P VAL-U-LOK R/A HDR V2
1586315-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG 30GOLD Pin & Socket Connectors SOCKET 22-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.20-0.80² [24-18] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,24-18AWG,GOLDPLATING 18-24 AWG Socket Wire/Cable Insulation Crimp VAL-U-LOK Connector VAL-U-LOK SKT BR AU 24-18 LP
1586315-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 18-22AWG TIN Pin & Socket Connectors SOCKET 22-18 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.30-0.90² [22-18] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, SOCKET, 24-18AWG, CRIMP CONTACT,SOCKET,VAL-U-LOK,22-18AWG 24-18 AWG Socket Crimp VAL-U-LOK Series Connector System VAL-U-LOK SKT PHBZ SN 24-18 LP
1586317-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 22-26AWG TIN Pin & Socket Connectors SOCKET 26-22 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT,SOCKET,VAL-U-LOK,26-22AWG,TINPLATING VAL-U-LOK SKT PHBZ SN 26-22 LP
1586317-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece VAL-U-LOK Series Connector System CONN TERM SOCKET 22-26AWG TIN 4.2 PE series 26-22 awg contact socket Pin & Socket Connectors SOCKET 26-22 BULK Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT SOCKET, 26-22AWG 4.2SOCKET,BRASS-TIN26-22 Crimp socket Female 26...22 AWG, 1586317-1, TE Connectivity TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡触点 VAL-U-LOK SKT BR SN 26-22 LP
2-1586039-2
te connectivity / amp

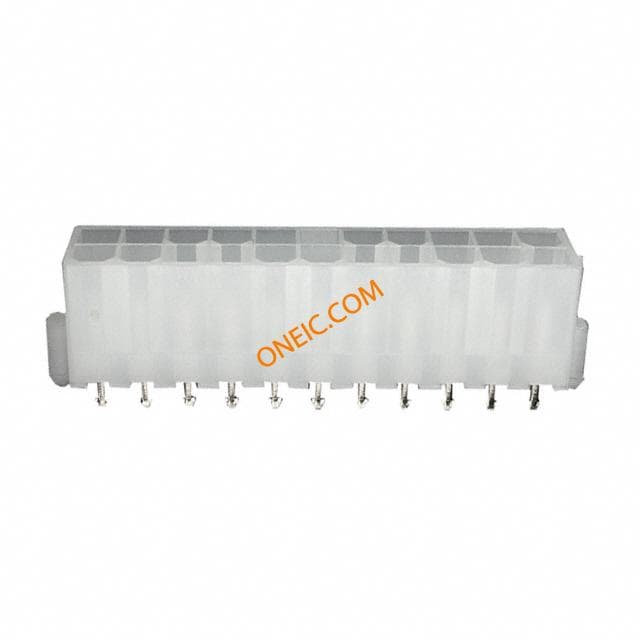

Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 22POS VERT W/PEGS Pin & Socket Connectors VERT HDR W/PEGS 22P Conn Power HDR 22 POS 4.2mm Solder ST Thru-Hole 22 Terminal 1 Port Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,22POS,DUALROW,UL94V-2,W/PEGS 22P VAL-U-LOK VRT HDR W/P V2
