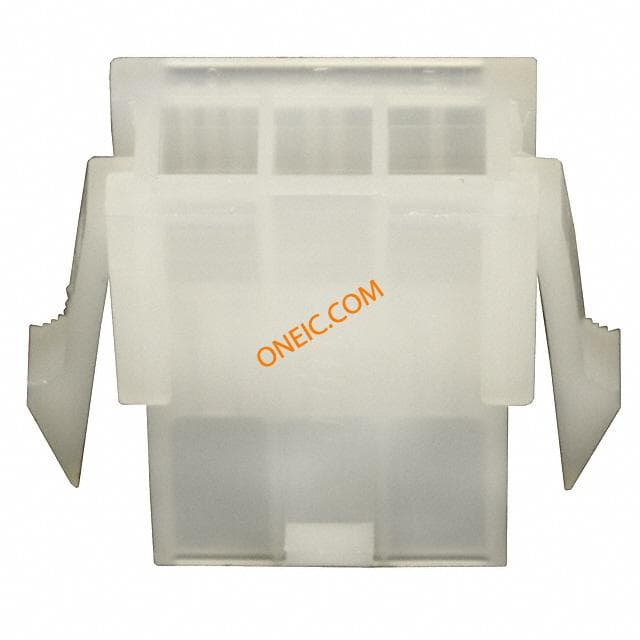

1586106-3
| Manufacturer | |
| Description | Conn Housing RCP 3 POS 4.2mm ST Bag VAL-U-LOK Series Connector System CONN RCPT 3POS FREE HANGING WHT Receptacle 3 way socket Val-u-Lok Pin & Socket Connectors RECPT HSG 3P 94-V0 Conn Housing RCP 3 POS 4.2mm ST Bag Product Highlights:HousingReceptacleNumber of Circuits = 3UL 94V-0Number of Rows = SingleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP RECEPTACLE,HOUSING,VAL-U-LOK,3POS,SINGLEROW,UL94V-0 TE Connectivity VAL-U-LOK 系列 4.2mm 节距 3 路 直 母 电缆安装 压接连接器外壳 3P RCPT VAL-U-LOK SR V0 |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Leadfree Defin | Not relevant for lead free process |
| CSA File Number | 208567 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
| Approval Agency Marking | 否 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Frequency - Center | 带有 | Current Rating (Max) | 9 A |
Mechanical
| Color | Natural | Depth | 9.1mm |
| Pitch | 4.2 mm | Width | 20.6mm |
| Height | 7.4 mm [ .291 in ] | Length | 13.8mm |
| Sealed | Not Sealed | Material | Nylon |
| Packaging | Bulk | Body Color | 白色 |
| Cable Type | 分离式导线 | Orientation | 直 |
| Row Spacing | 0.165" (4.20mm) | Contact Type | Female Socket |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | Without | Fastening Type | Latch Lock |
| Number of Rows | 1 | Package / Case | Receptacle |
| Insertion Force | 15 | Housing Material | Nylon |
| Package Quantity | 1000 | Primary Material | InterconnectSystem |
| Termination Style | 插座 | Number of Contacts | 3 |
| Contact Termination | Crimp | Insulation Diameter | 1.2 – 3.1 mm [ .047 – .122 in ] |
| Number of Positions | 3 | Contact Layout, Typical | 直插式 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | VAL-U-LOK |
| Manufacturer | VAL-U-LOK | Product Type | Housing |
| Number of Circuits | 3 | Selectively Loaded | No |
| Assembly Configuration | Without | For Use With/Related Products | PCB Connector |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] |
Documents & Media
Similar Parts

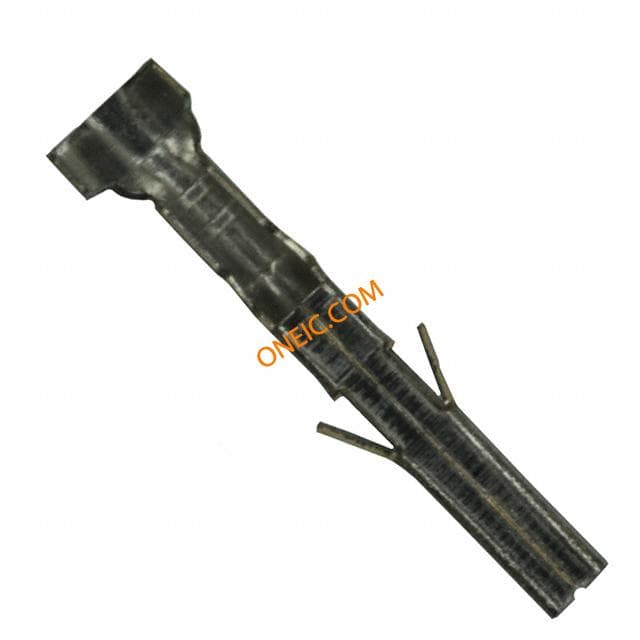

794958-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip VAL-U-LOK Series Connector System CONN SOCKET 26-22AWG BRASS TIN Crimp skt contact 26-22 awg tin Pin & Socket Connectors SOCKET 26-22 Reel of 5000 794958-1 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactSocketWire Range = 0.12-0.40² [26-22] mm [AWG]Brass MaterialSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP CONTACT, CRIMP, SOCKET, 26-22AWG Contact,Socket,VAL-U-LOK,22-26AWG,Brass VAL-U-LOK Series 22-26 AWG Insulation Crimp Strain Relief Socket Contact TE Connectivity VAL-U-LOK 系列 母 压接接线端子, 压接, 镀锡镀镍触点 VAL-U-LOK SKT BR SN 22-26AWG

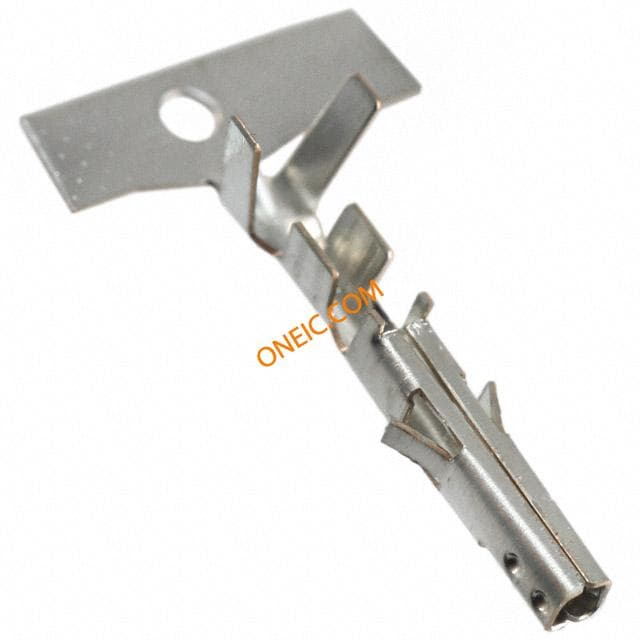

794956-3
