Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-2 |
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 9 A |
| Voltage - Supply (Min) | 600VAC | ||
Mechanical
| Color | Natural | Depth | 20mm |
| Pitch | 4.2 mm | Length | 26.8mm |
| Weight | 0.0248 | Material | Nylon |
| Packaging | Bulk | Row Spacing | 0.165" (4.20mm) |
| Contact Type | Female Socket | Housing Color | Natural |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Housing Material | Nylon |
| Length - Overall | 26.8 mm | Primary Material | InterconnectSystem |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :White | Number of Contacts | 12 |
| Contact Termination | Crimp | Number of Positions | 12 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | PE |
| CAD Drawing | 3D CAD Model | Manufacturer | VAL-U-LOK |
| Product Type | Housing | Number of Circuits | 12 |
| For Use With/Related Products | Wire-to-Board Connector, Wire-to-Panel Connector, Wire-to-Wire Connector | ||
Documents & Media
Similar Parts

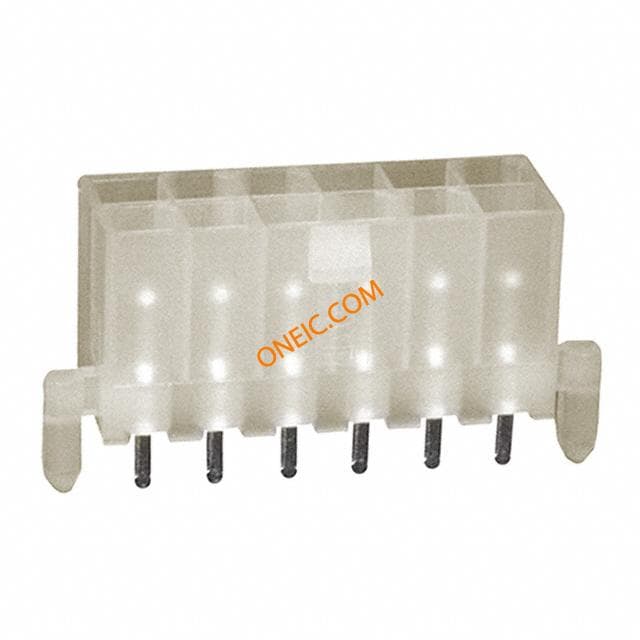

1-1586039-2
te connectivity / amp
$4.2226
Details
1-1586040-2
te connectivity / amp
$5.1680
Details
1-794953-2
te connectivity / amp
$1.0540
Details
794958-1
te connectivity / amp
$0.0681
Details

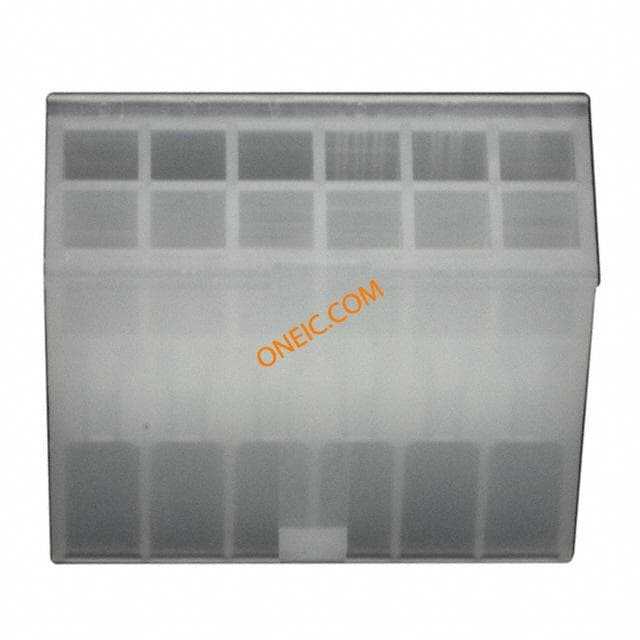

1-1586000-2
te connectivity / amp
$1.4307
Details
794956-3
te connectivity / amp
$0.1333
Details
794958-3
te connectivity / amp
$0.1904
Details
794956-1
te connectivity / amp
$0.1047
Details
1586315-1
te connectivity / amp
$0.1924
Details
794956-2
te connectivity / amp
$2.3346
Details
1586055-1
te connectivity / amp
$0.2244
Details

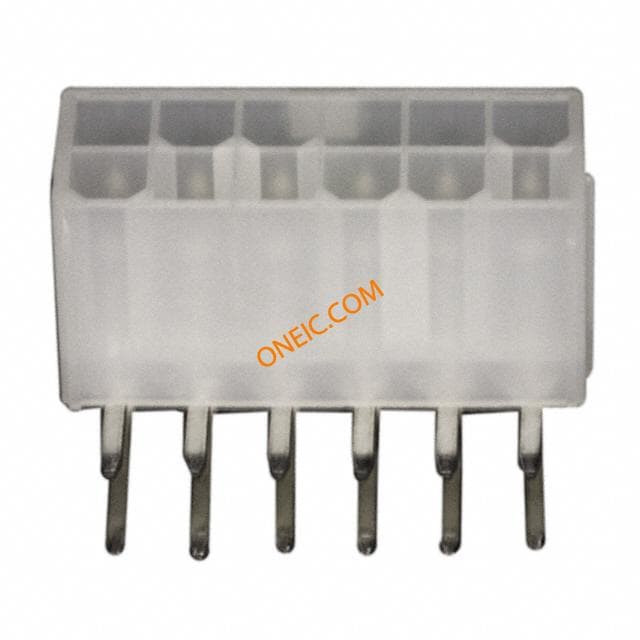

1-1586041-2
te connectivity / amp
$8.1600
Details
1586317-2
te connectivity / amp
$2.3249
Details
1-1586018-2
te connectivity / amp
$1.6510
Details
1586315-2
te connectivity / amp
$1.5980
Details

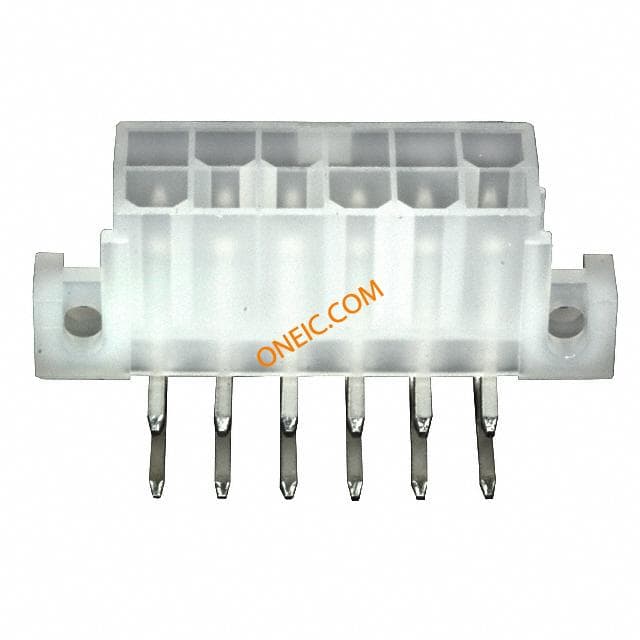

1-1586043-2
te connectivity / amp
$7.1400
Details
1586315-3
te connectivity / amp
$3.6750
Details
1586317-3
te connectivity / amp
$0.2448
Details
1586317-1
te connectivity / amp
$0.1999
Details

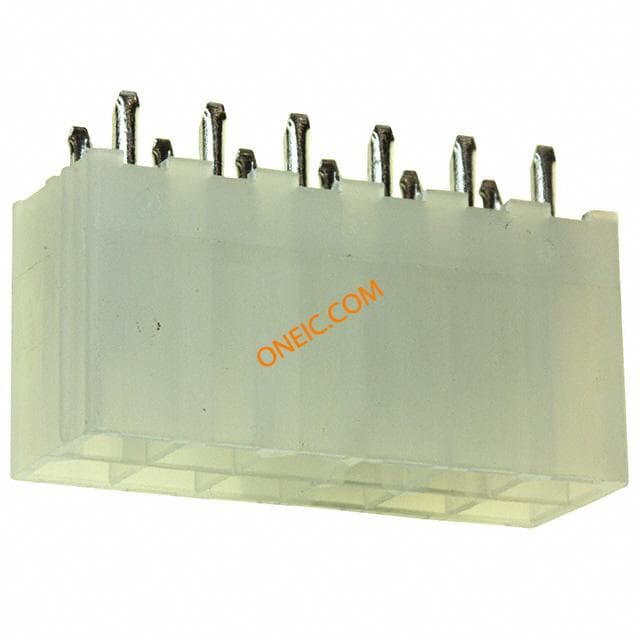

1-1586037-2
