102095-2
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount Reel .100 AMPMODU Headers, Housings & Contacts CONN PIN 22-26AWG 15GOLD CRIMP Headers & Wire Housings PIN 22-26AWG Contact PIN Crimp ST Cable Mount Reel Product Highlights:Crimp Snap-In PinsWire Termination Type = CrimpTerminate To WireWire Insulation Diameter = 1.55 mmWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONTACT, PIN, 26-22AWG, CRIMP Contact; male; 0.12÷0.4mm2; 22÷26AWG; AMPMODU MOD IV; gold plated MOD IV PIN PLTD 15 SEL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Tape & Reel | Factory Pack Quantity | 12500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Voltage Rating | 250 VAC | Contact Resistance | 12 mohm |
| Current Rating (Max) | 3 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Depth | 2.03 mm | Pitch | Not Required mm |
| Weight | 0.002 | Packaging | Tape & Reel (TR) |
| Wire Gauge | 22-26 AWG | Termination | Crimp |
| Contact Type | Signal | Housing Color | Not Required |
| Mounting Type | Straight | Pin or Socket | Pin |
| Connector Type | Connector Headers and PCB Receptacles | Contact Finish | Gold Over Nickel |
| Mounting Style | Cable | Package / Case | tape |
| Contact Material | Phosphor Bronze | Housing Material | Not Required |
| Length - Overall | 20.85 mm | Package Quantity | 12500 |
| Connector - Cable | contact | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | Not Required |
| Contact Termination | Crimp | Contact Finish Thickness | 15µin (0.38µm) |
| Wire Gauge or Range - AWG | :26AWG | Wire Gauge or Range - mm2 | 0.12...0.4mm2 |
| Contact Material - Plating | gold plated | ||
Product Info
| Spg | 12500 | Type | Contact |
| Gender | PIN | Series | AMPMODU MOD IV |
| Product Type | Contacts | Adapter Series | AMPMODU MOD IV |
| Number of Units | 12500 | For Use With/Related Products | :Mod IV Series Connectors |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
1-87456-6
te connectivity / amp
Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 DUAL Housing 20 way receptacle 2.54mm AmpModu Headers & Wire Housings 20P HOUSING Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM Housing,Connector;ModIV;Dual;20;250VAC;3A;750VYes Crimp housing Pitch2.54 mm Poles 20 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 1-87456-6, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 20 路 直 母 电缆安装 PCB 壳体 20 MODIV HSG DR MRKD .100CL

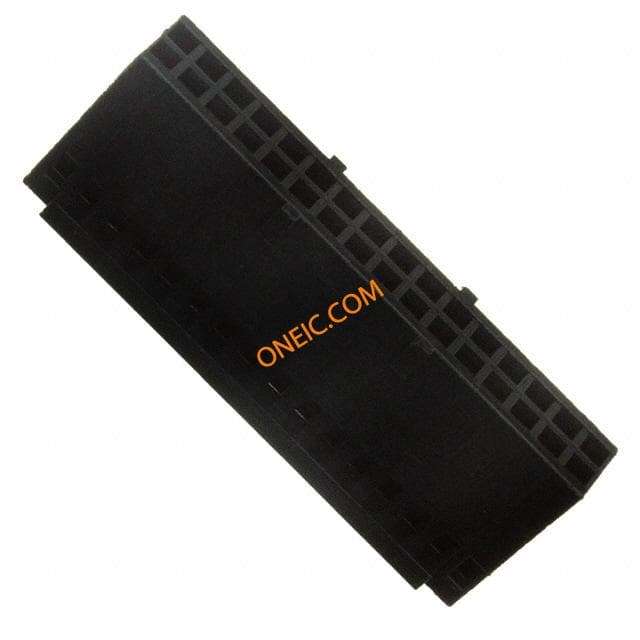

2-87631-7
te connectivity / amp
Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 32POS .100 POL DUAL Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 32Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 32 MODIV HSG COMP DR .100 POL
87922-5
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 18POS .100 POL W/STR Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 18 MODIV HSG W/STR RLF DR MRKD

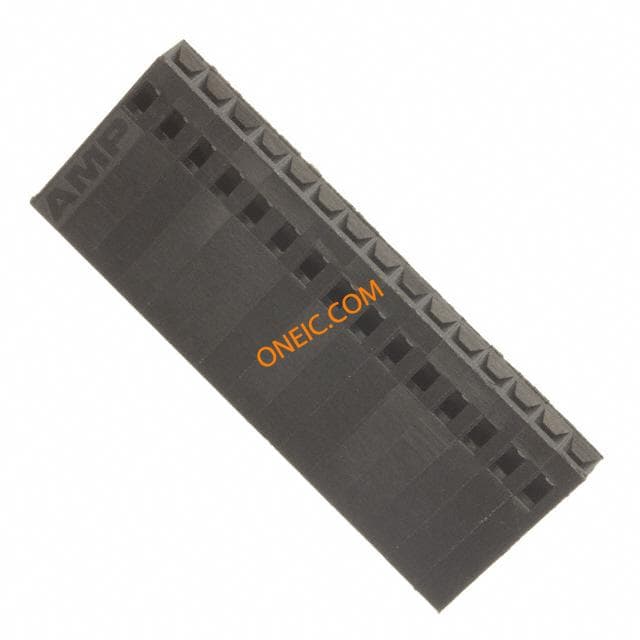

2-87499-8
te connectivity / amp
Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 15POS .100 SINGLE Headers & Wire Housings 15 POS HSG SR MRKD .1CL Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 15 MODIV HSG COMP SR .100CL
87499-9
te connectivity / amp
Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 5POS .100 SINGLE AmpModu IV receptacle Housing 5 way Headers & Wire Housings NON-PLRZD HSG 5 SNGL .505 width Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Single;5;250VAC;3A;750V TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 5 路 直 母 电缆安装 PCB 连接器外壳 05 MODIV HSG SR MRKD .100CL
102241-1
te connectivity / amp
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 3POS .100 POLAR 2.54mm,housing,3W,Mod IV,SR,snap in Headers & Wire Housings POLARIZED HSG 3 SNGL detent latching Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 3Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 1 ROW, 3WAY Housing,Connector;ModIV;Single;3;250VAC;3A;750VYes Plug; wire-board; female; PIN:3; w/o terminals; 2.54mm; for cable Crimp housing Pitch2.54 mm Poles 3 Single row / straight / with polarization / with detent latching AMPMODU MOD IV, 102241-1, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 1 行 2.54mm 节距 3 路 直 母 电缆安装 PCB 壳体 03 MODIV HSG COMP SR .100 POL
87456-7
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 12POS .100 DUAL ROW Headers & Wire Housings 12P MODIV HOUSING Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 12Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR,HOUSING,RECEPTACLE,MODIV,12POSITION,DUALROW 12 MODIV HSG COMP DR .100CL

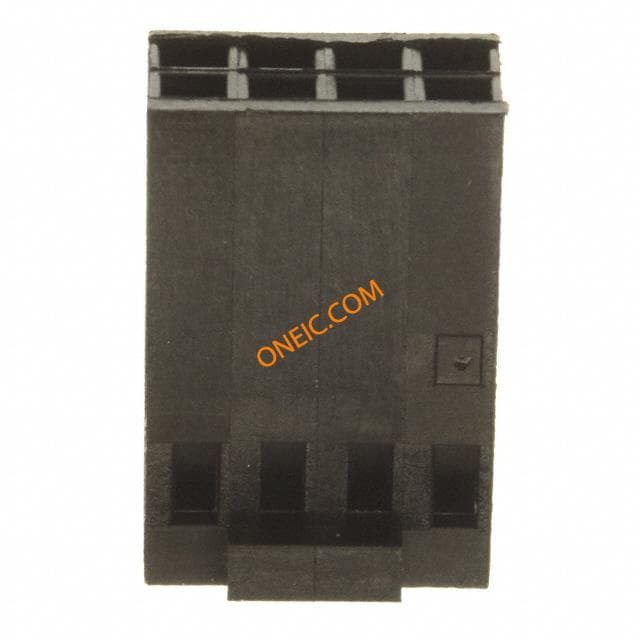

2-87977-9
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POL DUAL Headers & Wire Housings 08 MODIV HSG COMP DR Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 MODIV HSG COMP DR .100 POL
1-87733-7
te connectivity / amp
Conn Housing RCP 60 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 60POS .100 POL W/STR .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 60Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 60 MODIV HSG W/STR RLF DR MRKD

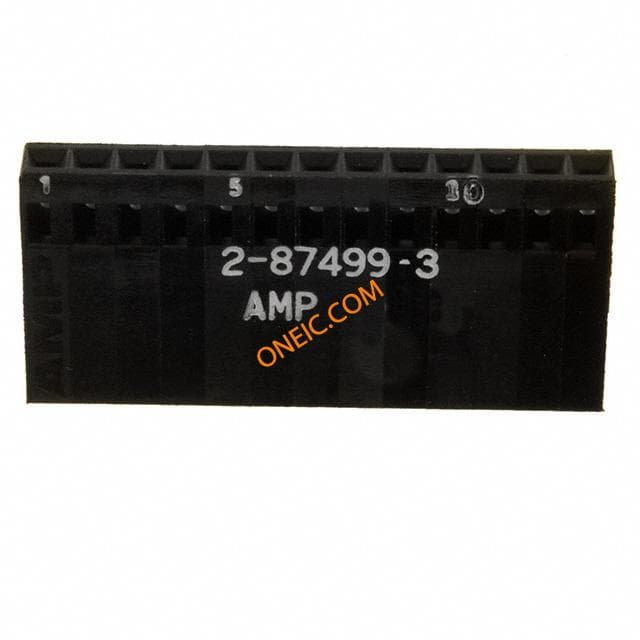

2-87499-3
te connectivity / amp
Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 13POS .100 SINGLE Headers & Wire Housings HSG 1X13C F/H Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 13Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 13POS, 2.54MM 13 MODIV HSG SR MRKD .100CL
3-87977-3
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL Headers & Wire Housings HSG 2X08C F/H POL Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM 16 MODIV HSG COMP DR .100 POL
87977-2
te connectivity / amp
Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POL DUAL Headers & Wire Housings 8P MOD IV HOUSING Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 MODIV HSG DR MRKD .100 POL
1-102241-6
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 POLAR Headers & Wire Housings 18 HSG SR COMP .100 POL 18 MODIV HSG COMP SR .100 POL 18 MODIV HSG COMP SR .100 POL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
4-87977-0
te connectivity / amp
Conn Housing RCP 30 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING RCPT CRIMP 30POS Headers & Wire Housings 30 MODIV HSG COMP DR .100 POL .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingNot PreloadedNumber of Positions = 30Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 30 MODIV HSG COMP DR .100 POL
1-87456-4
te connectivity / amp
Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 18POS .100 DUAL Headers & Wire Housings 18P DUAL ROW HSG. Conn Housing RCP 18 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 18Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 18POS, 2.54MM CONNECTOR,HOUSING,RECEPTACLE,MODIV,18POSITION,DUALROW,MARKED 18 MODIV HSG DR MRKD .100CL
1-87631-7
te connectivity / amp
Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 22POS .100 POL DUAL Headers & Wire Housings 22 MODIV HSG COMP DR Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 22Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 22 MODIV HSG COMP DR .100 POL

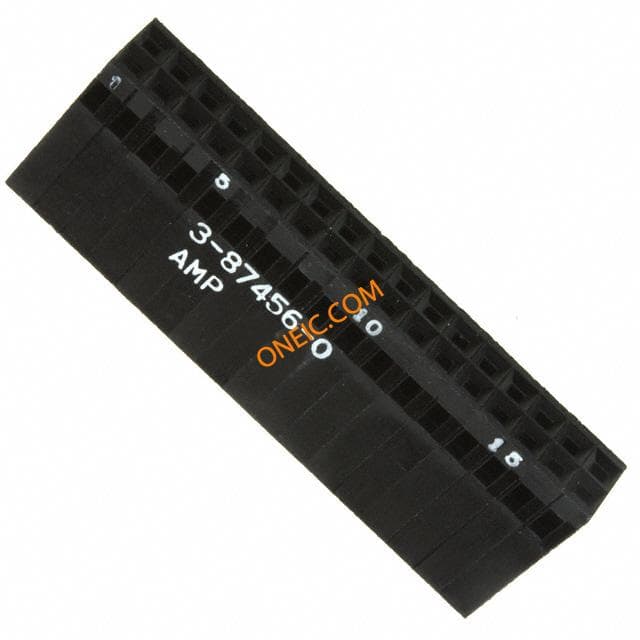

3-87456-0
te connectivity / amp
Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 34POS .100 DUAL Housing,Connector,Crimp-Snap,Dual Headers & Wire Housings 34P MOD IV HOUSING Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 34Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM Housing,Connector;Crimp-Snap;Dual;34;250VAC;3A;750V 34 MODIV HSG DR MRKD .100CL
1-87631-2
te connectivity / amp
Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL 2.54mm,housing,16W,Mod IV,DR,snap in Headers & Wire Housings 16P 2 ROW HOUSING Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X8WAY Housing,Connector;Crimp-Snap;Dual;16;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 16 Contact DesignStamped Double row / straight / with polarization AMPMODU MOD IV, 1-87631-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 壳体 16 MODIV HSG DR MRKD .100 POL
3-87977-7
te connectivity / amp
Conn Housing RCP 24 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 24POS .100 POL DUAL Headers & Wire Housings 24 HSG COMP DR .1POL 24 MODIV HSG COMP DR .100 POL 24 MODIV HSG COMP DR .100 POL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

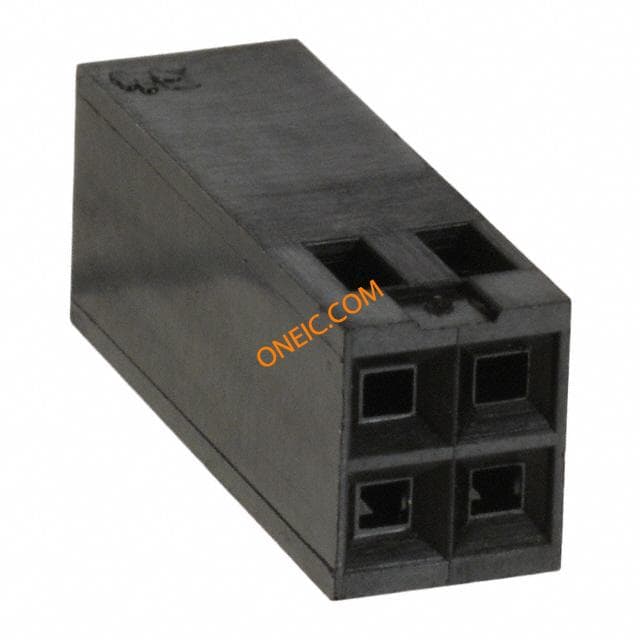

4-87456-9
