87499-9
| Manufacturer | |
| Description | Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 5POS .100 SINGLE AmpModu IV receptacle Housing 5 way Headers & Wire Housings NON-PLRZD HSG 5 SNGL .505 width Conn Housing RCP 5 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 5Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Single;5;250VAC;3A;750V TE Connectivity AMPMODU Mod IV 系列 2.54mm 节距 5 路 直 母 电缆安装 PCB 连接器外壳 05 MODIV HSG SR MRKD .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | ULE28476,CSALR7189,RoHSCompliant,ELVCompliant |
| Standard Number | CSA LR7189, UL E28476 | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 VAC | Switch Function | Unlatched |
| Voltage - Supply | 250 VAC | Contact Resistance | 12 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 压接 |
| Voltage - Breakdown | 750V | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000Megohms | Voltage - Supply (Min) | 250VAC |
| Voltage - Protection Rating (VPR) | 750 V | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Width | 3.56mm |
| Height | 3.56 mm | Length | 12.83mm |
| Lock Type | 不带 | Packaging | Bulk |
| Body Color | 黑色 | Orientation | 直 |
| Row Spacing | 2.54 mm | Termination | CrimpSnap-In |
| Contact Type | Female Socket | Polarization | No |
| Housing Color | Black | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Insert Material | 铍铜 | Housing Material | Glass Fibre Reinforced Thermoplastic |
| Length - Overall | 12.83 mm | Package Quantity | 1 |
| Primary Material | InterconnectSystem | Connector - Cable | Yes |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
| Mounting Hole Diameter | 不带 | Contact Layout, Typical | 同轴 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | MOD IV |
| Manufacturer | AMPMODU/MODIVSeries | Product Type | Receptacles / Sockets - Housings |
| Other Specifications | 是 | Matrix (Columns x Rows) | 0.1in. |
| For Use With/Related Products | MOD 1/2 Wire to Board Standard Pressure Contact | ||
Environmental
| Temperature - Test | 标准部件 - 非辉光导线 | Operating Temperature | - 65 C to + 105 C |
Documents & Media
Similar Parts
104344-3
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 5POS VERT 30AU Headers & Wire Housings 05 MODII HDR SRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = StandardSearch Keywords:board to board, AMPMODU, pcb connectors, 05 MODII HDR SRST B/A W/HD
146281-5
te connectivity / amp
Conn Unshrouded Header HDR 5 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 5POS 30GOLD
826631-5
te connectivity / amp

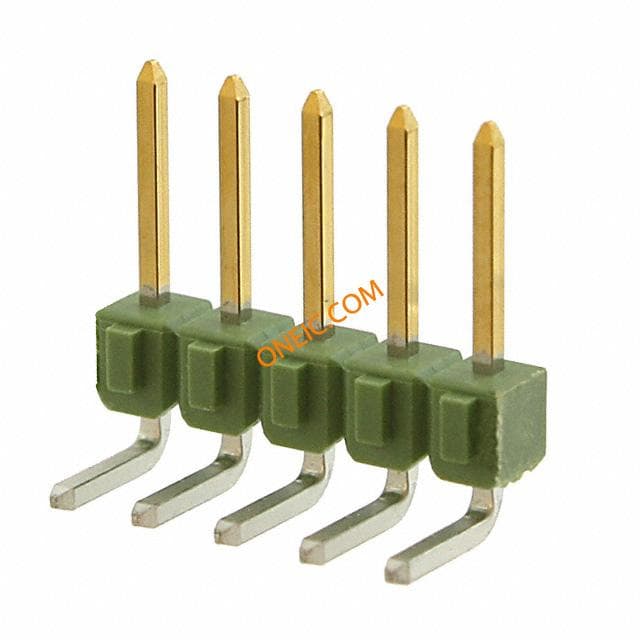

Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 5POS R/A GOLD TE Connectivity AMPMODU Series 2.54mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 5P SINGLE ROW R/A Conn Unshrouded Header HDR 5 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = SingleNumber of Positions = 5Mating Post Length = 6.70 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 5WS/RR/APINHEADERAU TE Connectivity AMPMODU Mod II 系列 2.54mm节距 5路 (1排) 直角 引脚管座, 焊接端接, 3A , 通孔 5P AMPMODU II STIFT LEI
