2-87499-3
| Manufacturer | |
| Description | Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 13POS .100 SINGLE Headers & Wire Housings HSG 1X13C F/H Conn Housing RCP 13 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 13Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 13POS, 2.54MM 13 MODIV HSG SR MRKD .100CL |
| Category |
Business
| Tradename | AMPMODU | Other Names | A3022 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 250 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Range deg/s | :TE - AMPMODU Mod IV Series | Voltage Rating | 250 VAC |
| Switch Function | Unlatched | Current Rating (Max) | 3 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 3.56 mm |
| Weight | 0.002 | Packaging | Bulk |
| Row Spacing | 2.54 mm | Contact Type | Female Socket |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Receptacle | Contact Finish | :- |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Contact Material | :- | Housing Material | Thermoplastic |
| Length - Overall | 33.15 mm | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 13 |
| Contact Termination | Crimp | Number of Positions | 13 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MOD IV |
| Product Type | Receptacles / Sockets - Housings | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
4-102976-0-13
TE Connectivity
CONN HEADR BRKWAY .100 13POS STR

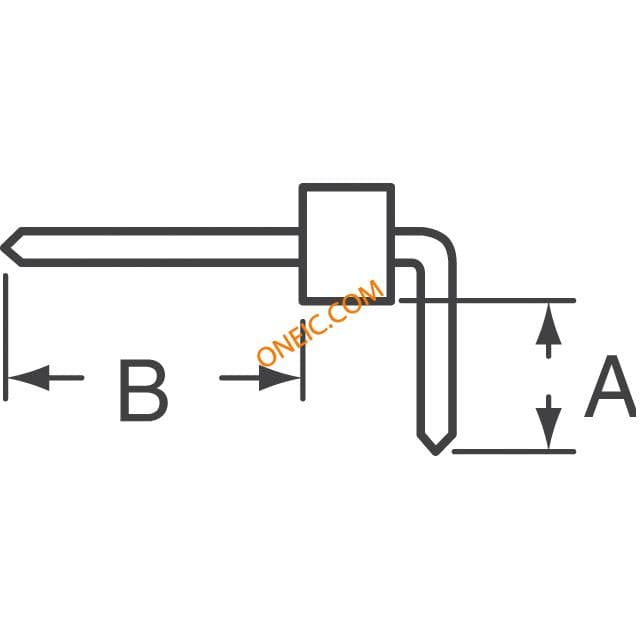

4-103765-0-13
