1-87631-7

Manufacturer	TE Connectivity Ltd.
Description	Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 22POS .100 POL DUAL Headers & Wire Housings 22 MODIV HSG COMP DR Conn Housing RCP 22 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 22Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 22 MODIV HSG COMP DR .100 POL
Category	Connector SolutionsRectangular Connectors

对参数有疑问？问 AI 助手

Business

Tradename	AMPMODU	Product Category	Headers & Wire Housings
Standard Package	Bulk	Factory Pack Quantity	1

Compliance

RoHS	Lead free / RoHS Compliant	Standard Number	CSA LR7189, UL E28476
Material Flammability Rating	UL 94V-0

Electrical

Voltage Rating	250 V	Switch Function	Detent Latching
Voltage - Supply	250 VAC	Contact Resistance	12 mΩ
Resistance - Input	5000	Connector Impedance	压接
Current Rating (Max)	3 A	Voltage - Protection Rating (VPR)	750 V

Mechanical

Color	Black	Pitch	2.54 mm
Height	6.1 mm [ .24 in ]	Length	27.94 mm [ 1.1 in ]
Lock Type	带有	Packaging	Bulk
Body Color	黑色	Wire Gauge	20-30 AWG
Row Spacing	0.100" (2.54mm)	Contact Type	Female Socket
Mounting Type	Straight	Connector Type	Receptacle
Fastening Type	Locking Ramp	Number of Rows	2
Insert Material	铍铜	Contact Material	Phosphor Bronze
Housing Material	Nylon	Package Quantity	1
Termination Style	Crimp	1st Contact Gender	Socket (Female)
Number of Contacts	22	Contact Termination	Crimp
Number of Positions	22	Compatible Shell Size	公端
Mounting Hole Diameter	带有	Static Discharge Shielding	不带

Product Info

Note	Contacts Not Provided	Type	Housing
Gender	RCP	Series	AMPMODU MOD IV
Product Type	Receptacles / Sockets - Housings	Number of Taps/Steps	2
Other Specifications	否	Application Specifics	Board to Board

Environmental

Temperature - Test

标准部件 - 非辉光导线

Operating Temperature

- 65 C to + 105 C

Similar Parts

1-104353-1

te connectivity / amp

Conn Unshrouded Header HDR 22 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 22POS R/A DUAL

Details

103169-9

te connectivity / amp

Conn Shrouded Header HDR 22 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 22POS DUAL VERT GOLD

Details

1-825440-1

te connectivity / amp

Conn Unshrouded Header HDR 22 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADR 22POS DUAL VERT GOLD Headers & Wire Housings MOD 2 PINHDR 2X11P. MOD 2 PINHDR 2X11P.

$8.8869

Details

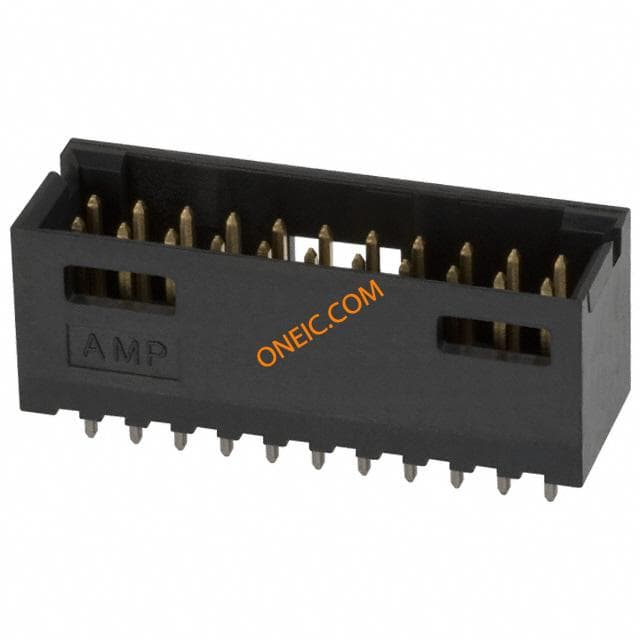

5-102618-9
