87977-2
| Manufacturer | |
| Description | Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 8POS .100 POL DUAL Headers & Wire Housings 8P MOD IV HOUSING Conn Housing RCP 8 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 8Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 08 MODIV HSG DR MRKD .100 POL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standard Number | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 250 VAC | Switch Function | Detent Latching |
| Voltage - Supply | 250 VAC | Contact Resistance | 12 mΩ |
| Resistance - Input | 5000 | Connector Impedance | 压接 |
| Current Rating (Max) | 3 A | Voltage - Supply (Min) | 250VAC |
| Voltage - Protection Rating (VPR) | 750 V | ||
Mechanical
| Color | Black | Depth | 15.24 mm |
| Pitch | 2.54 mm | Height | 6.096 mm [ .24 in ] |
| Length | 10.16 mm [ .21 in ] | Lock Type | 带有 |
| Packaging | Bulk | Body Color | 黑色 |
| Wire Gauge | 20-30 AWG | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Insert Material | 铍铜 | Housing Material | Nylon |
| Length - Overall | 10.16 mm | Package Quantity | 1 |
| Termination Style | Through Hole | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 8 | Contact Termination | Crimp |
| Number of Positions | 8 | Mounting Hole Diameter | 带有 |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMPMODU MOD IV |
| Product Type | Receptacles / Sockets - Housings | Other Specifications | 是 |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts

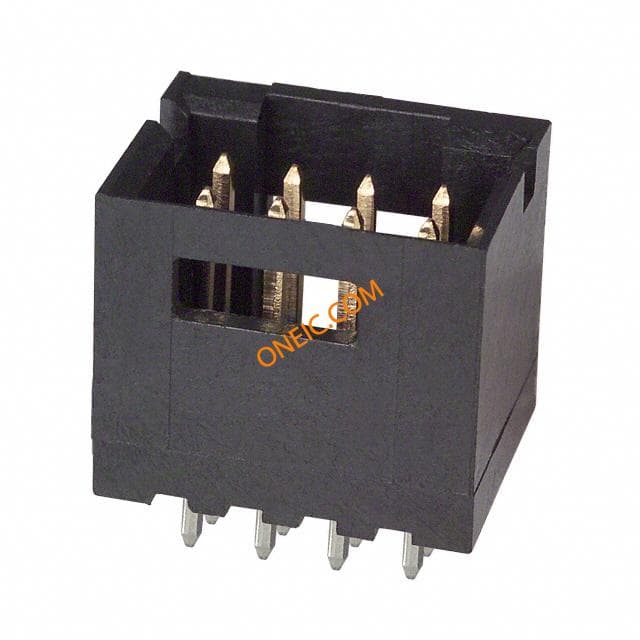

5-103168-2
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 8 POS 30AU Headers & Wire Housings SHROUDED VERT DUAL 8 detent windows Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 8Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 8WAY HEADER,DUALROW,AMPMODU,SHROUDED,.100IN.,8POSITION,8.08MM 08 MODII HDR DRST SHRD .100CL
102619-2
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 8POS 15AU Headers & Wire Housings ACTION PIN VERT 8P dual .150 end Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 08 MODII HDR DRST SHRD .100CL

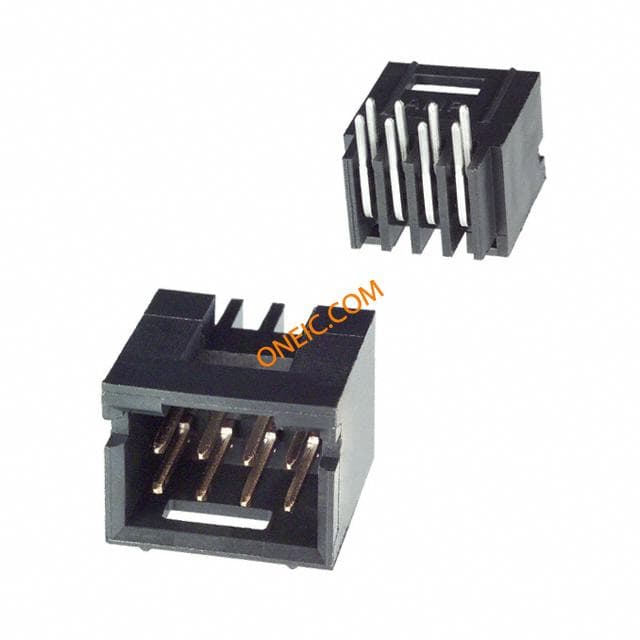

5-102617-2
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole CONN HEADER R/A .100 8POS 15AU Headers & Wire Housings SHROUDED RA DUAL 8 detent windows Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded8 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONNECTOR HEADER 8POS, 2.54MM 08 MODII HDR DRRA SHRD LF
103166-2
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 8POS 30AU TE Connectivity AMPMODU Series 2.54mm Pitch 8 Way 2 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings SHROUDED RA DUAL 8 detent windows Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 8Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, Headerhoriz8way2row2.54mmAmpModu TE Connectivity AMPMODU Mod II 系列 2.54mm节距 8路 (2排) 直角 PCB 针座, 焊接端接, 3A , 通孔 08 MODII HDR DRRA SHRD .100CL
103164-2
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER .100 8POS R/A SHRD Headers & Wire Housings 08 MODII HDR DRRA 3/4SHRD .100 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 8Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 08 MODII HDR DRRA 3/4SHRD .100
103169-2
te connectivity / amp
Conn Shrouded Header HDR 8 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 8POS 30AU Headers & Wire Housings ACTION PIN VERT 8P dual .150 end 08 MODII HDR DRST SHRD .100CL 08 MODII HDR DRST SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

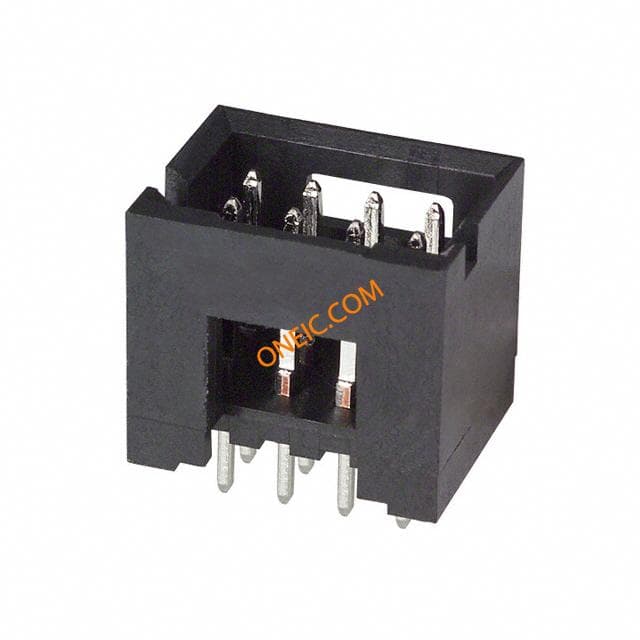

8-87589-5
