1-87631-2
| Manufacturer | |
| Description | Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 POL DUAL 2.54mm,housing,16W,Mod IV,DR,snap in Headers & Wire Housings 16P 2 ROW HOUSING Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CRIMP HOUSING, 2 ROW, 2X8WAY Housing,Connector;Crimp-Snap;Dual;16;250VAC;3A;750V Crimp housing Pitch2.54 mm Poles 16 Contact DesignStamped Double row / straight / with polarization AMPMODU MOD IV, 1-87631-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路 直 母 电缆安装 PCB 壳体 16 MODIV HSG DR MRKD .100 POL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | ULE28476,CSALR7189,RoHSCompliant,ELVCompliant |
| Tariff No | 85369010 | Approval Agency | :CSA, UL |
Electrical
| Range deg/s | :TE - AMPMODU Mod IV Series | Voltage Rating | 250 V |
| Switch Function | Detent Latching | Voltage - Breakdown | 750V |
| Current Rating (Max) | 3 A | Insulation Resistance | :500Mohm |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 15.24mm |
| Pitch | 2.54 mm | Length | 20.32mm |
| Weight | 0.002 | Packaging | Bulk |
| Wire Gauge | 20-30 AWG | Row Spacing | 0.100" (2.54mm) |
| Termination | :Crimp | Contact Type | Female Socket |
| Polarization | Yes | Housing Color | Black |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Receptacle | Contact Finish | :Gold |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Package / Case | :Black Thermoplastic UL94V-0 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Length - Overall | 20.32 mm |
| Primary Material | InterconnectSystem | Connector - Cable | Yes |
| Pin Hole Diameter | 0.1" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 16 |
| Contact Termination | Crimp | Insulation Diameter | 0.069or0.046" |
| Number of Positions | 16 | 1st Connector Mounting Type | :PC Board |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mod IV |
| Manufacturer | AMPMODU/MODIVSeries | Product Type | Receptacles / Sockets - Housings |
| Application Specifics | Board to Board | Matrix (Columns x Rows) | 0.100x0.100in. |
| For Use With/Related Products | Centerline Double-Row Connector | ||
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
104352-8
te connectivity / amp
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 16POS DUAL TIN
104351-8
te connectivity / amp
Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 16POS DUAL 15AU Headers & Wire Housings VERT B/A HDR 16P 600 Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 16Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST B/A W/HD
87579-5
TE Connectivity / AMP
Headers & Wire Housings SHROUDED RA DUAL 16 detent windows .100 inch AMPMODU Headers CONN HEADER RA .100 16POS TIN
87589-4
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings SHROUDED VER DUAL 16 detent windows .100 inch AMPMODU Headers CONN HEADER VERT .100 16POS TIN Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST SHRD .100CL
104319-1
te connectivity / amp
Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 16POS DUAL R/A GOLD Headers & Wire Housings 16 MODII HDR DRRA SH 882 16 MODII HDR DRRA SHRD .100CL 16 MODII HDR DRRA SHRD .100CL Search Keywords:board to board, AMPMODU, pcb connectors,

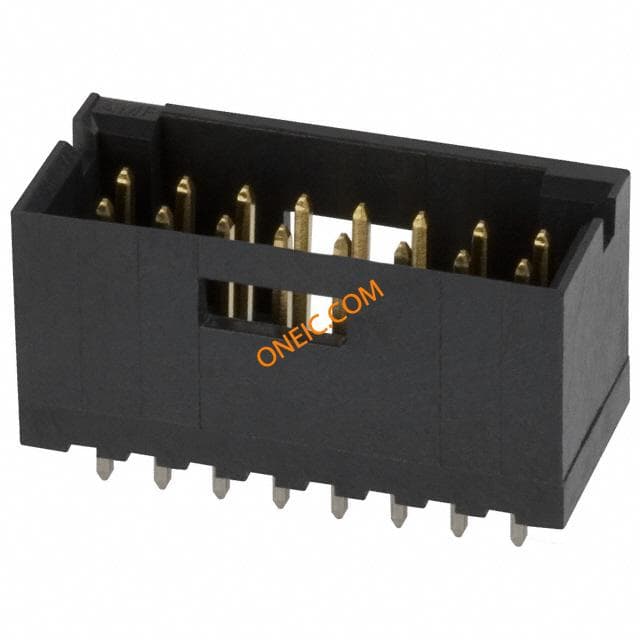

5-103168-6
