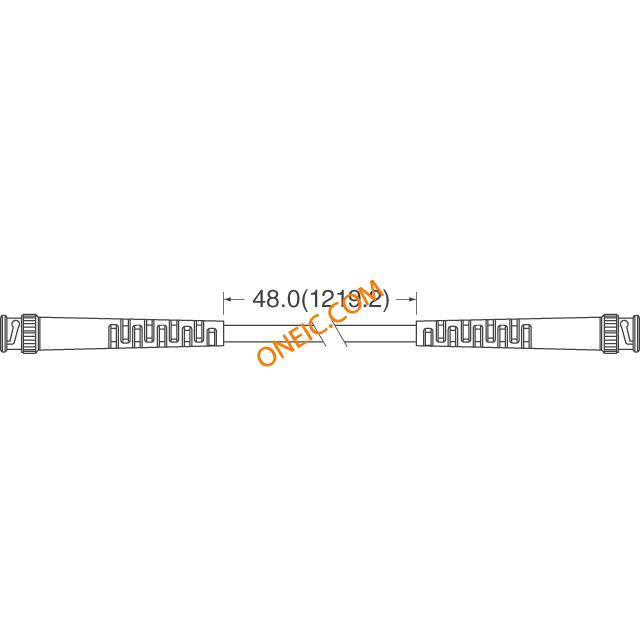

2249-C-48
| Manufacturer | |
| Description | RF Cable Assemblies BNC MALE TO MALE Cable Assembly RG58C/U 1.219m 20AWG BNC to BNC M-M CABLE BNC MALE RG-58C/U 48" COAXIAL CABLE ASSEMBLY, BMC MALE-MALE, 4FT, BLACK CableAssy;48in.;20AWG;RG58C/U;NonBooted;BlackJacket;ULListed BNC Male Patch Cable 50 Ohms, 4', RG58C/U |
| Category |
Business
| Part # Aliases | 1931523 | Product Category | RF Cable Assemblies |
| Standard Package | 2 | Factory Pack Quantity | 2 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | UL,CE | Tariff No | 85444920 |
Electrical
| Impedance | 50 Ohm | Voltage - Input (Min) | 500VAC |
| Voltage - Supply (Min) | 500VAC | ||
Mechanical
| Color | Black | Length | 48.0" (1219.2mm) |
| Weight | 0.086 | Shielding | TinnedCopperBraid |
| Cable Type | RG58C/U | Wire Gauge | 20 AWG |
| Cable Length | 1.219 m | Jacket Color | Black |
| 1st Connector | BNC Male Plug | 2nd Connector | BNC Male Plug |
| Wire Diameter | 20AWG | Connector Type | BNC |
| Contact Finish | Gold | Contact Material | Brass |
| Connector - Cable | Straight | 2nd Connector Type | BNCPlug |
| Conductor Material | TinnedCopper | 1st Connector Gender | Plug (Male) |
| 2nd Connector Gender | Plug (Male) | Material - Insulation | Polyethylene |
| Number of Cable Pairs | 19×33 | ||
Product Info
| Type | Coaxial/RF | Style | BNC to BNC |
| Gender | M-M | Series | BNC |
| Features | Shielded | Function | NonBooted |
| Application Specifics | ForRFtransmissionsystems,thinnestLAN,testandmeasurement | ||
Environmental
| Temperature Rating | -40to+85°C | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
222165-2
te connectivity / amp
Conn BNC Adapter PL/RCP 50Ohm RA Gold BNC RF Connectors CONN ADAPTER BNC RTANG 50OHM RF Adapters - In Series RIGHT ANGLE JK-PLUG 3000 Conn BNC Adapter PL/RCP 50Ohm RA Gold Product Highlights:AdapterConnector Type = BNCBody Style = Right AngleNot Surface MountableCommercial GradeSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL ADAPTER, BNC JACK-BNC PLUG ADAPTER RT ANGLE PLUG TO JACK
221988-1
te connectivity / amp
Conn BNC Adapter RCP/RCP/RCP 50Ohm T Style Silver Bulk BNC RF Connectors CONN T-ADAPTER BNC JACK 50OHM RF Adapters - Tee TEE JACK-JACK-JACK Conn BNC Adapter RCP/RCP/RCP 50Ohm T Style Silver Bulk Product Highlights:AdapterConnector Type = BNCBody Style = TeeNot Surface MountableCommercial GradeSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNC TEE ADAPTER, 1 X JACK-2 X JACK ADAPTER,TEE,JACK,BNC CONN ADAPT JACK-JACK BNC 50 OHM T-ADAPTER,JACK,SERIES BNC

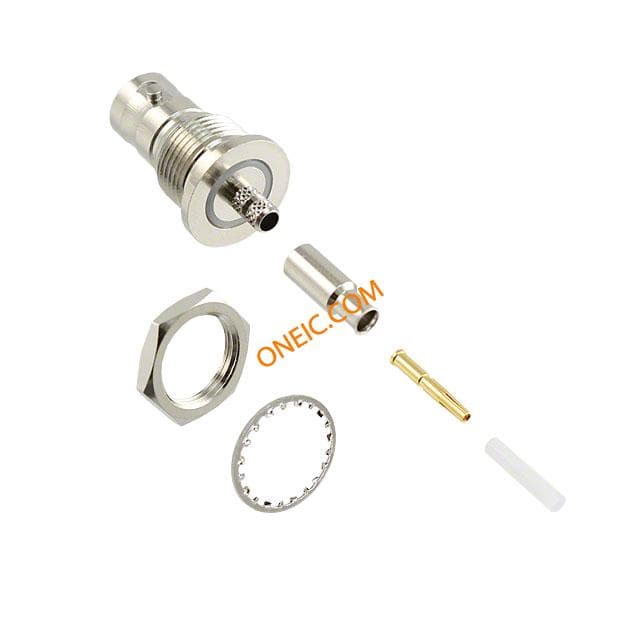

112252
amphenol connex
Conn BNC F 0Hz to 4GHz 50Ohm Crimp ST Panel Mount Gold CONN BNC JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors BNC BULKHEAD ISOL CRIMP JACK RG174 RF/COAXIAL, BNC BHD JACK STR 50 OHM CRIMP connector, rf coaxial, bnc bulkhead jack, isolated, crimp, 50 ohm, rg174, 316, lmr100

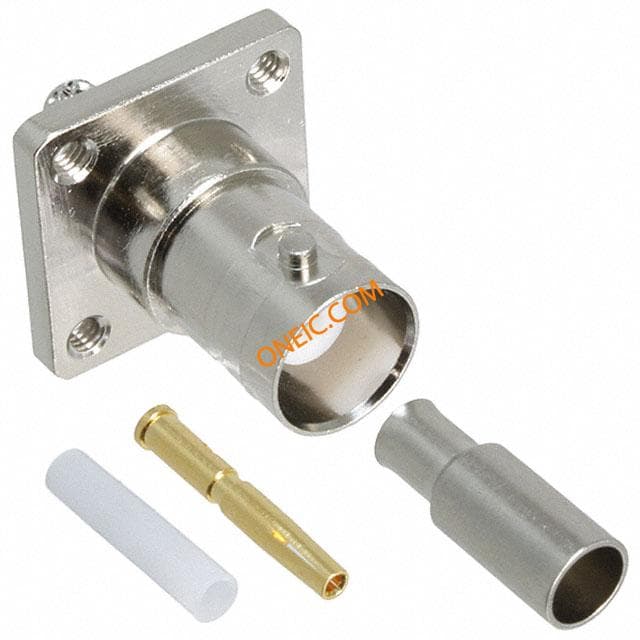

112288-11
amphenol connex
BNC PNL C/J 174 3-56 TAP HOLES Conn BNC RCP Crimp ST Cable Mount Gold CONN BNC JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors BNC PANEL CRIMP JK 174 3-56 TAP HOLES RF/COAXIAL, BNC, FLANGED JACK, 50 OHM, CRIMP BNC, BNC PNL C/J 174 3-56 TAP HOLES

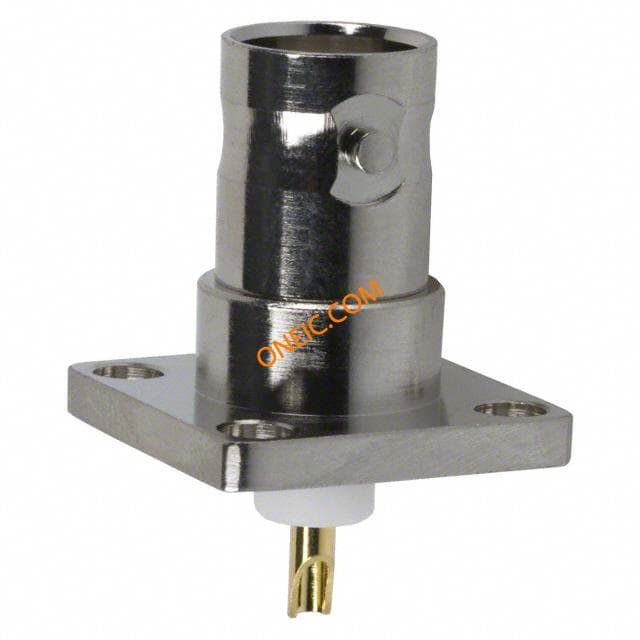

112290
amphenol connex
Conn BNC F 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold CONN BNC JACK STR 50 OHM SOLDER connector;rf coaxial;bnc panel receptacle jack;4 hole flange;solder pot terminal RF Connectors / Coaxial Connectors BNC PANEL RECPT JACK 50 OHM-TF RF/COAXIAL, BNC JACK, STR, 50 OHM, SOLDER connector, rf coaxial, bnc panel receptacle jack, 4 hole flange, solder pot terminal

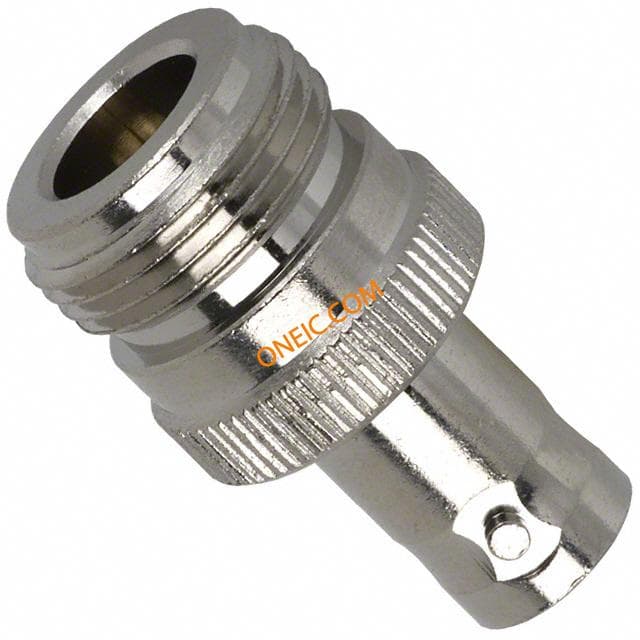

242100
amphenol connex
Conn Type N-BNC Adapter F/F 0Hz to 4GHz 50Ohm ST Gold CONN ADT N JACK-BNC JACK connector;rf coaxial;between series adapter;n jack to bnc jack RF Adapters - Between Series BNC JACK TO N JACK ADAPTER RF/COAXIAL ADAPTER, N JACK-BNC JACK connector, rf coaxial, between series adapter, n jack to bnc jack
2249-C-72
Pomona Electronics
RF Cable Assemblies BNC M/M RG58 72 6" / 1.8M Cable Assembly RG58C/U 1.829m 20AWG BNC to BNC M-M RF Cable Assemblies BNC M/M RG58 72" 6' / 1.8M RF Cable Assemblies BNC (M), RG58C/U CABLE BNC MALE RG-58C/U 72" RF Cable Assemblies BNC M/M RG58 72 6' / 1.8M CableAssy;72in.;20AWG;RG58C/U;NonBooted;BlackJacket;ULListed BNC Male Patch Cable 50 Ohms, 6', RG58C/U

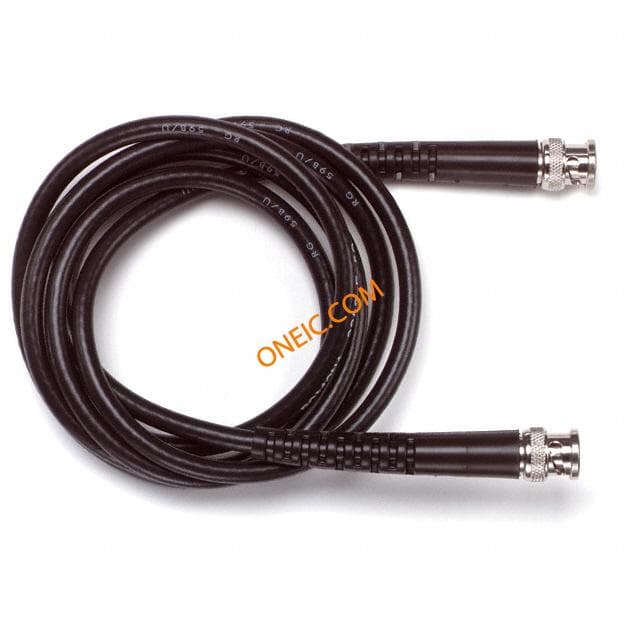

6510-V-48-0
