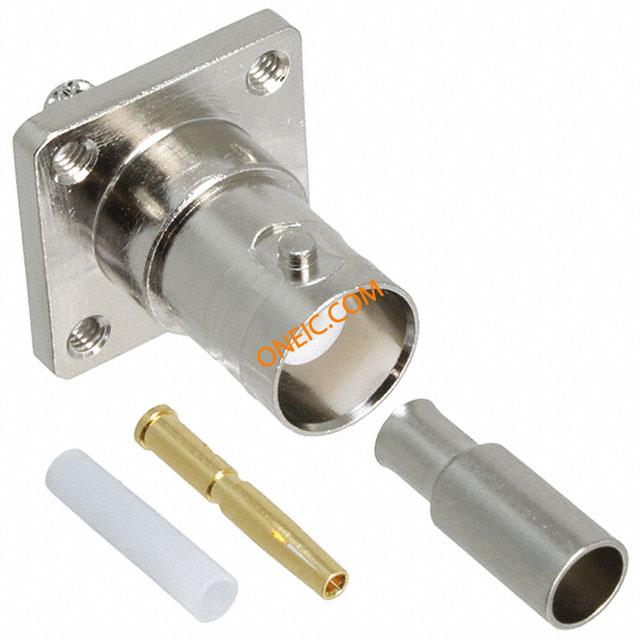

112288-11
| Manufacturer | |
| Description | BNC PNL C/J 174 3-56 TAP HOLES Conn BNC RCP Crimp ST Cable Mount Gold CONN BNC JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors BNC PANEL CRIMP JK 174 3-56 TAP HOLES RF/COAXIAL, BNC, FLANGED JACK, 50 OHM, CRIMP BNC, BNC PNL C/J 174 3-56 TAP HOLES |
| Category |
Business
| Product | Connectors | Part # Aliases | 112288-11 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Coupling Factor | Bayonet | Frequency - Max | 4GHz |
Mechanical
| Depth | 17.5 | Height | 17.5 |
| Weight | 0.507945 oz | Packaging | Bulk |
| Cable Type | LMR-100, RG-174/U, RG-188A/U, RG-316/U | Body Finish | Nickel |
| Cable Group | RG-174, 316, LMR-100 | Orientation | Straight |
| Termination | Crimp | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Plating - Body | Nickel |
| Connector Style | BNC | Contact Material | Phosphor Bronze |
| Length - Overall | 27.6 | Termination Style | Cable - Crimp |
| Shield Termination | Crimp | Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Polytetrafluoroethylene |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Supplier Device Package | :Straight Flanged Jack | ||
Product Info
| Type | BNC | Gender | RCP |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | BNC | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | - 65 C to + 165 C |
