2249-C-36
| Manufacturer | |
| Description | RF Cable Assemblies BNC-BNC MALE 3" Cable Assembly Coaxial 0.914m 20AWG BNC to BNC M-M RF Cable Assemblies BNC-BNC MALE 3' CABLE BNC MALE RG-58C/U 36" CableAssy;36in.;20AWG;RG58C/U;NonBooted;BlackJacket;ULListed BNC Male Patch Cable 50 Ohms, 3', RG58C/U |
| Category |
Business
| Part # Aliases | 1931473 | Product Category | RF Cable Assemblies |
| Standard Package | 2 | Factory Pack Quantity | 2 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Standards | UL,CE | ||
Electrical
| Impedance | 50 Ohm | Voltage Rating | 30 V ac|60 V dc|500 Vrms |
| Voltage - Input (Min) | 500VAC | ||
Mechanical
| Color | Black | Length | 36.0" (914.4mm) |
| Shielding | TinnedCopperBraid | Cable Type | Coaxial |
| Wire Gauge | 20AWG | Cable Length | 36" |
| Jacket Color | Black | Tip Material | Brass |
| 1st Connector | BNC Male Plug | 2nd Connector | BNC Male Plug |
| Body Material | Brass | Wire Diameter | 20AWG |
| Connector Type | BNC | Contact Finish | Gold |
| Contact Material | Brass | Connector - Cable | Straight |
| 2nd Connector Type | BNCMale | Conductor Material | TinnedCopper |
| Length - Lead Wire | 36in | Insulation Material | BNC:PTFE|Wire:Polyethylene |
| 1st Connector Gender | Plug (Male) | 2nd Connector Gender | Plug (Male) |
| Color - Actuator/Cap | Black | Material - Insulation | Polyethylene |
| Number of Cable Pairs | 19×33 | ||
Product Info
| Style | BNC to BNC | Gender | M-M |
| Series | BNC | Features | Shielded |
| Function | NonBooted | Manufacturer | Pomona |
| Product Type | Test Lead | Application Specifics | ForRFtransmissionsystems,thinnestLAN,testandmeasurement |
Environmental
| Temperature Rating | -40to+85°C | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts

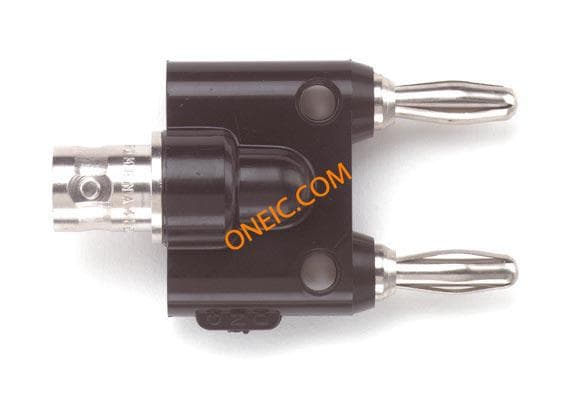

1269
