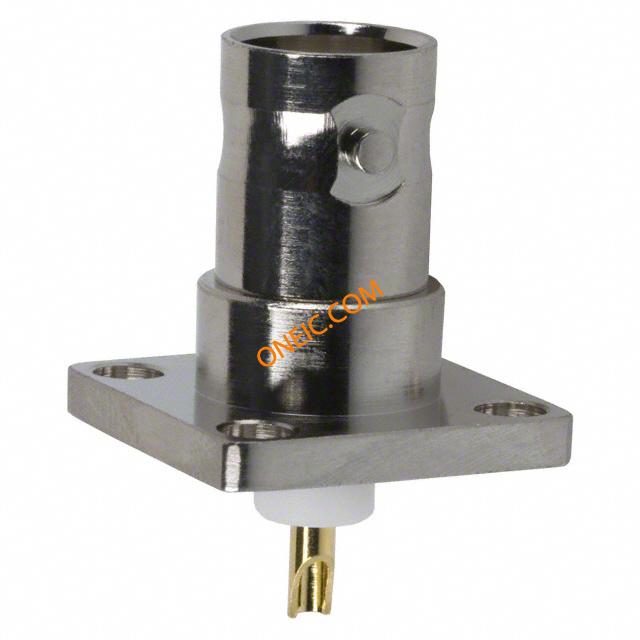

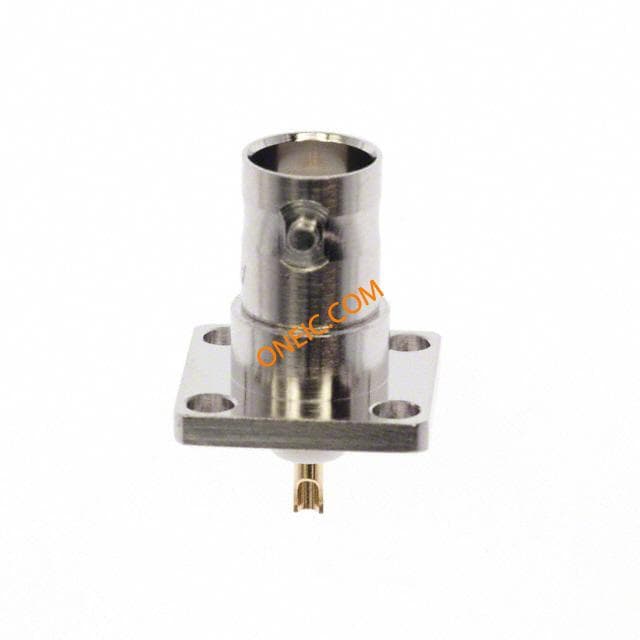

112290
| Manufacturer | |
| Description | Conn BNC F 0Hz to 4GHz 50Ohm Solder Cup ST Panel Mount Gold CONN BNC JACK STR 50 OHM SOLDER connector;rf coaxial;bnc panel receptacle jack;4 hole flange;solder pot terminal RF Connectors / Coaxial Connectors BNC PANEL RECPT JACK 50 OHM-TF RF/COAXIAL, BNC JACK, STR, 50 OHM, SOLDER connector, rf coaxial, bnc panel receptacle jack, 4 hole flange, solder pot terminal |
| Category |
Business
| Product | Connectors | Other Names | ACX1049 |
| Part # Aliases | 319-0043 99H4353 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Coupling Factor | Bayonet |
| Frequency - Max | 4GHz | ||
Mechanical
| Depth | 17.5 | Height | 17.5 |
| Weight | 0.367555 oz | Packaging | Bulk |
| Cable Type | :- | Body Finish | Nickel |
| Orientation | Straight | Termination | Solder Cup |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount | Angle of Throw | Straight |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Plating - Body | Nickel | Connector Style | BNC |
| Connector Usage | Bayonet | Contact Material | Phosphor Bronze |
| Housing Material | Brass | Length - Overall | 26.7 |
| Primary Material | BNC | Termination Style | Solder Cup |
| Shield Termination | Solder | Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Insulation Material | Polytetrafluoroethylene |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Supplier Device Package | :Straight Jack | ||
Product Info
| Type | BNC | Gender | F |
| Series | :- | Features | Extended Insulation |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | 112290 | Application Specifics | Commercial |
Environmental
| Mating Cycles | 500 | Operating Temperature | - 65 C to + 165 C |
Documents & Media
