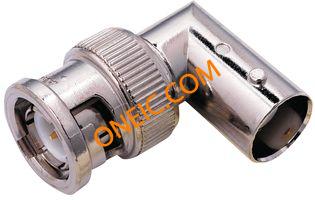

222165-2
| Manufacturer | |
| Description | Conn BNC Adapter PL/RCP 50Ohm RA Gold BNC RF Connectors CONN ADAPTER BNC RTANG 50OHM RF Adapters - In Series RIGHT ANGLE JK-PLUG 3000 Conn BNC Adapter PL/RCP 50Ohm RA Gold Product Highlights:AdapterConnector Type = BNCBody Style = Right AngleNot Surface MountableCommercial GradeSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL ADAPTER, BNC JACK-BNC PLUG ADAPTER RT ANGLE PLUG TO JACK |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | RF Adapters - In Series | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | Not ELV/RoHS compliant |
| Approval Agency Marking | No | ||
Electrical
| Impedance | 50 Ohm | Isolated Power | No |
| Conversion Type | Same Series | Connector Impedance | Without |
Mechanical
| Shape | Right Angle-Cubic | Sealed | No |
| Weight | 0.009 | Packaging | Bulk |
| Insulation | Without | Body Finish | Nickel |
| Orientation | Right Angle | Nut Material | Brass |
| Body Material | Diecast Zinc | Mounting Type | Right Angle |
| Shell Plating | Nickel | Connector Type | BNC |
| Contact Finish | Gold | Plating - Body | Nickel |
| Contact Material | Beryllium Copper | Panel Mount Type | Without |
| Dielectric Material | TEFLON | 1st Connector Gender | Plug (Male) |
| 2nd Connector Gender | Jack (Female) | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | Right Angle |
| Surface Mount Land Size | No | 1st Connector Mounting Feature | :Plug |
Product Info
| Type | BNC Adapter | Grade | Commercial |
| Style | Right Angle | Gender | PL/RCP |
| Polarity | No | Adapter Type | Plug to Jack |
| Manufacturer | AMP | Product Type | Adapter |
| Center Gender | Female to Male | Adapter Series | BNC to BNC |
| Connection Type | Coaxial Cable | RF Family/Standard | 222165 |
| Convert To (Adapter End) | BNC Jack, Female Socket | Convert From (Adapter End) | BNC Plug, Male Pin |
